Tablet Key Features
System | |
CPU | RK3566 Quad core cor-tex A55 |
RAM | 2GB |
Internal memory | 16GB |
Operation system | Android 11 |
Touch screen | 10-Point capacitive touch |
Display | |
Panel | 10.1"LCD panel |
Resolution | 1280*800 |
Display mode | Normally black |
viewing angle | 85/85/85/85(L/R/U/D) |
Contrast ratio | 800 |
Luminance | 250cdm2 |
Aspect Ratio | 16:9 |
Network | |
WiFi | 802.11b/g/n/ac,2.4G/5G |
Buletooth | Bluetooth 4.0 |
Ethernet | 100M/1000M |
Interface | |
Type-c | Support |
Power Jack | DC power input |
RJ45 | Ethernet interface ( POE function optional IEEE802.3at,POE+,class 4, 25.5W ) |
USB | USB Host 2.0 |
Serial | 8P- 2.0MM ( RS232 fomat) |
Earphone | 3.5mm earphone +microphone |
Media play | |
Video format | MPEG-1,MPEG-2,MPEG-4,H.265,H.264,VC-1,VP8, etc.,support up to 4K |
Audio format | MP3/WMA/AAC etc. |
Photo | jpeg |
Other | |

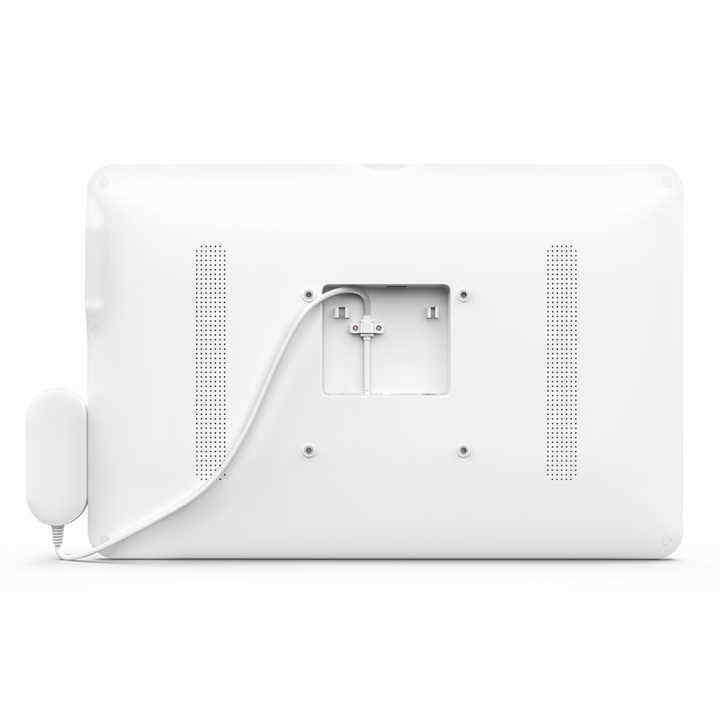

Vesa | 100mm*100mm |
NFC | Optional ,(NFC 13.56MHz,ISO14443A/ISO14443B/ISO 15693/Mifare classic/Sony felica) |
Speaker | 2*2W |
Camera | 5.0M/P,front camera |
Internal Microphone | Dual microphone ( standard) |
Language | Multi-language |
Working temp | 0--40degree |
Accessories | |
Adapter | Adapter,12V/1.5A |
User manual | yes |
Hand-held Microphone | yes |

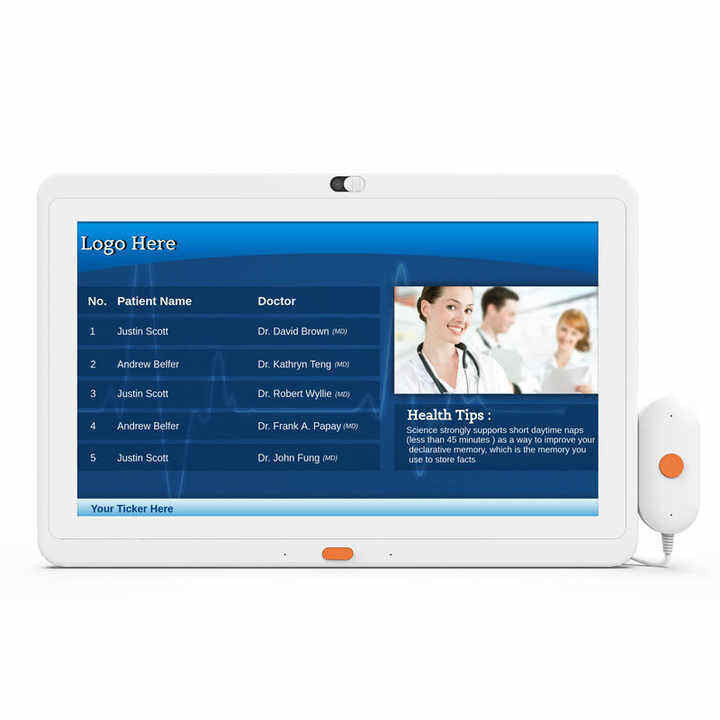

10.1Inch screen
Design a 10.1 -inch screen with a suitable size, with a stand, which is convenient for moving at any time. 10.1 inch can clearly display the data of patients with medical information, which is lightweight and easy to carry and move.
1280x800 Resolution
The resolution of 1280x800 can provide clear text and image display, which is suitable for doctors to watch CT images and diagnose the results.
RK3566 CPU
Equipped with RK3566 is a quad -core processor with high performance and low performance, which can effectively process patient information and suitable for daily use of tablets. With 2+16GB memory, it is enough to meet the daily needs such as electronic health records and patient information query.

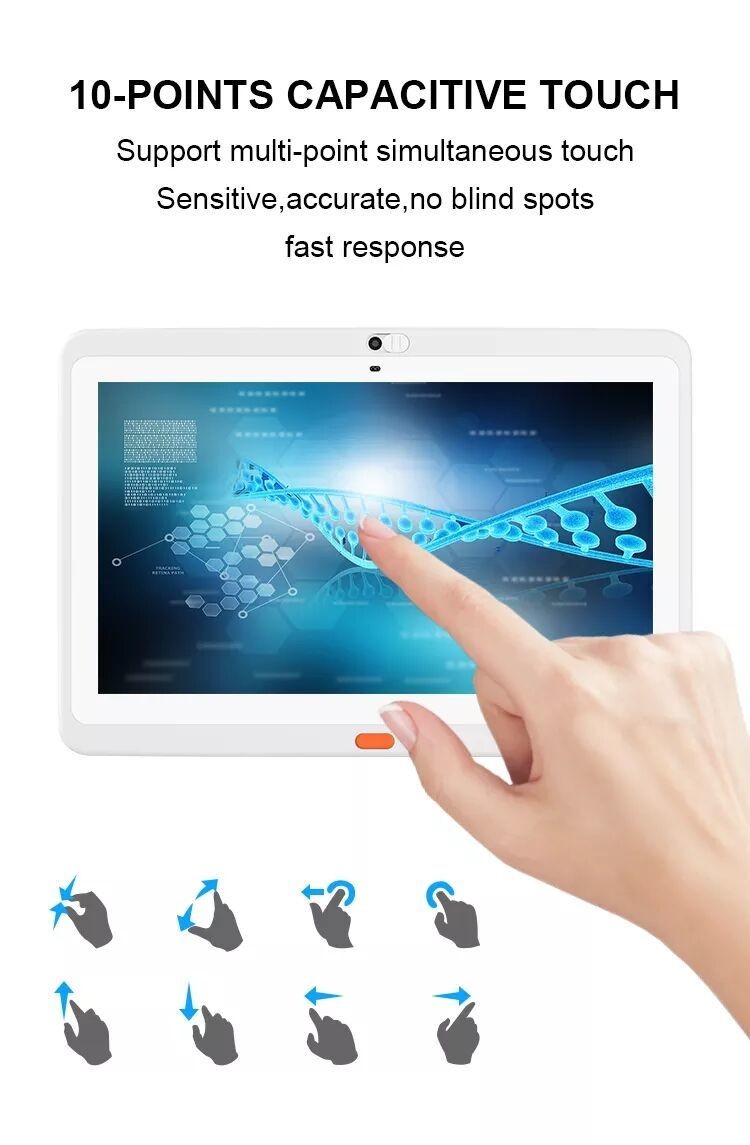

10-Point capacitive touch
With a 10 -point capacitor touch function, users can directly query or enter data by clicking and sliding screens. It is more convenient to use without keyboards and mouses. 10 points capacitors touch, more accurate touch, faster response, support multi -person multi -finger operation, and more practicality.
Hidden camera
For the special environment of the hospital, we designed a privacy camera. A slide film is installed in front of the camera. When you need it, you can open the slide to the right. If you do n’t use it, hide the camera, which greatly guarantees the privacy and safety of the patient and enhances the user's experience.
POE Power
The tablet has a POE function. A network cable can be powered and data transmission at the same time, simplifies the wiring, improves the integration of the ward, and is more convenient to use. No power cord is required, it can be flexibly installed in different positions to meet the needs of various scenarios. POE has higher power supply safety, saves costs, has better effect, and enhances user experience.

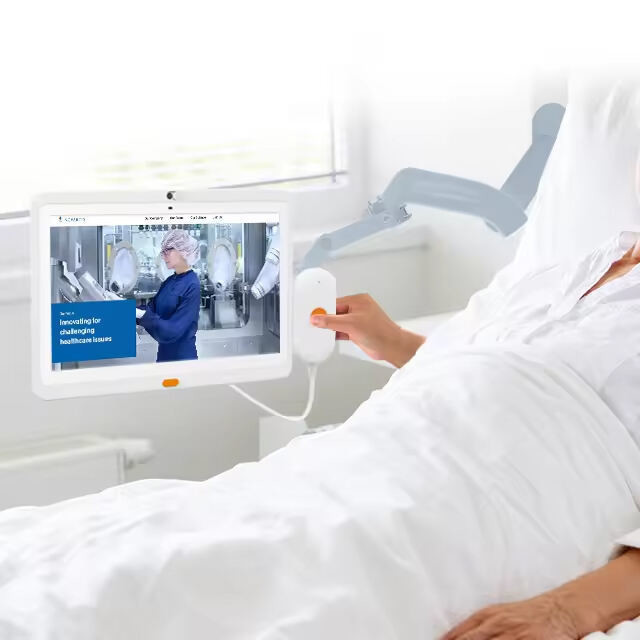

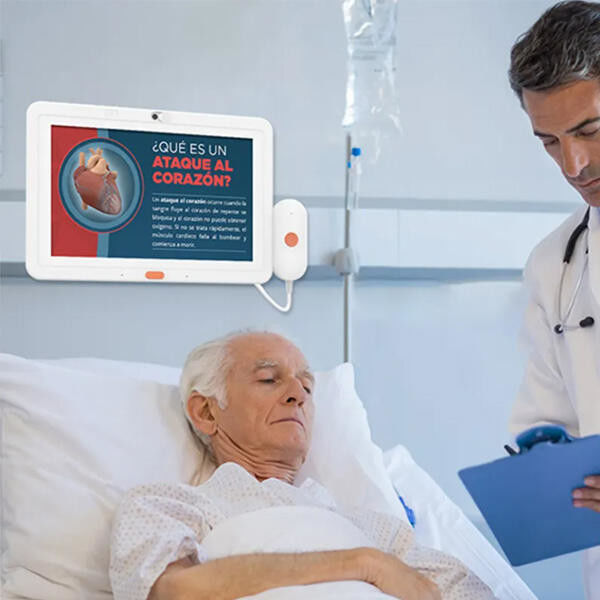

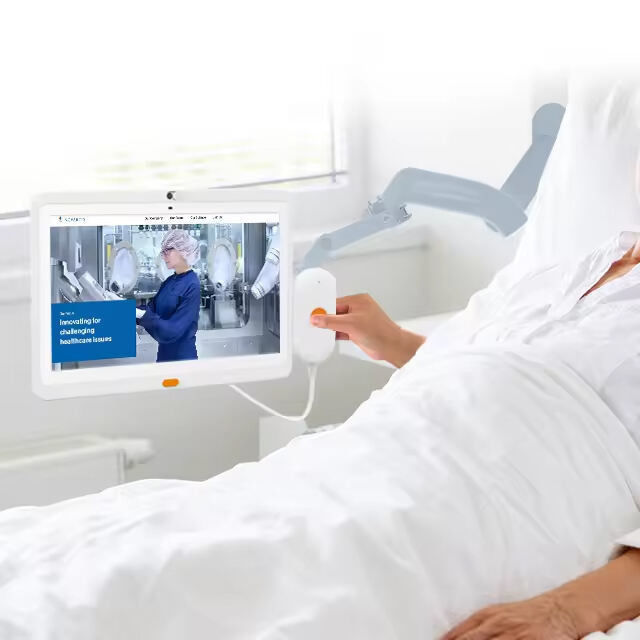

One-Click call system
Equipped with a one -click call handle. Patients can notify the medical staff to change the needle and pull the needle, etc. The device is equipped with standard double microphone, the call is clearer, the communication is more convenient, and the user experience is better.
Widely Use

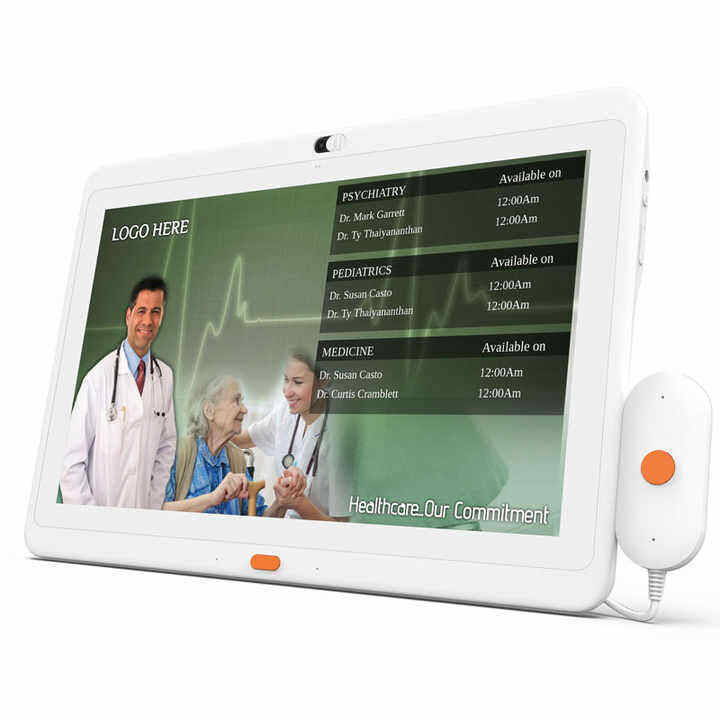

The playback terminal can be installed in the Lobby/waiting room/elevator passage.Establish medical information guidance system platform.Multi-unit network control,unified management.And display of information.With touch query.Patients can find the corresponding department faster.
Packaging support customization, users can customize logo tags on the box. Customized packaging can be customized according to the different needs of the user.
