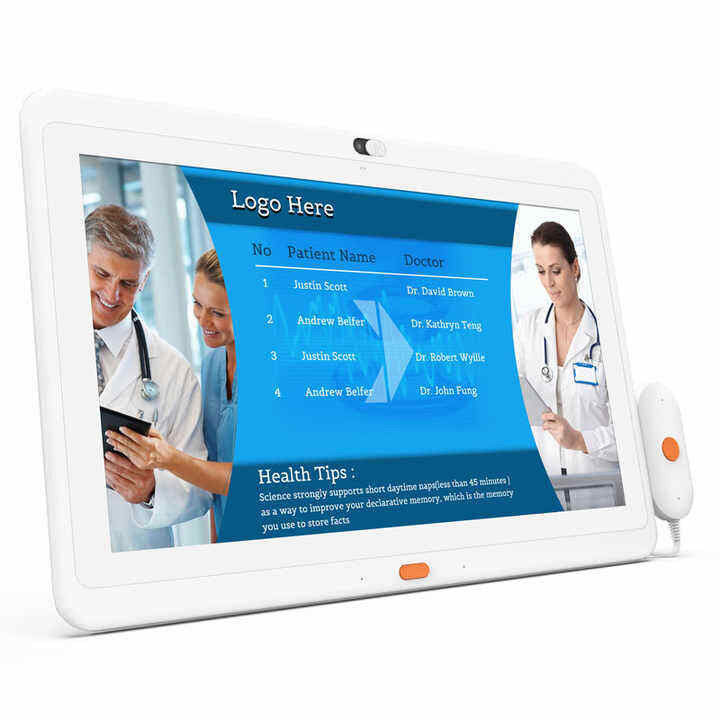

Hospital 15.6inch Health Care Tablet Android All in one Medical Industry Grade Tablets With Call Handle Camera

Specifications Product Description Request A Quote
Specifications
Specifications
Highlight:

Android Medical Industry Grade Tablets

,

Hospital Medical Industry Grade Tablets

,

15.6inch Medical Industry Grade Tablets

Product Description
  • Video
  • Features
  • Parameter
  • Products Description
  • Packaging
  • Recommended Products
Video
Features

Tablet Key Features

  • CPU:RK3566  Quad core cor-tex A55
  • RAM:2 GB
  • Memory:16 GB
  • System:Android 11
  • Panel: 15.6"LCD panel
  • Resolution:1920x1080
  • Support USB、Type-C、RJ45 Input
  • Support NFC POE Power
  • 5.0M/P,front camera

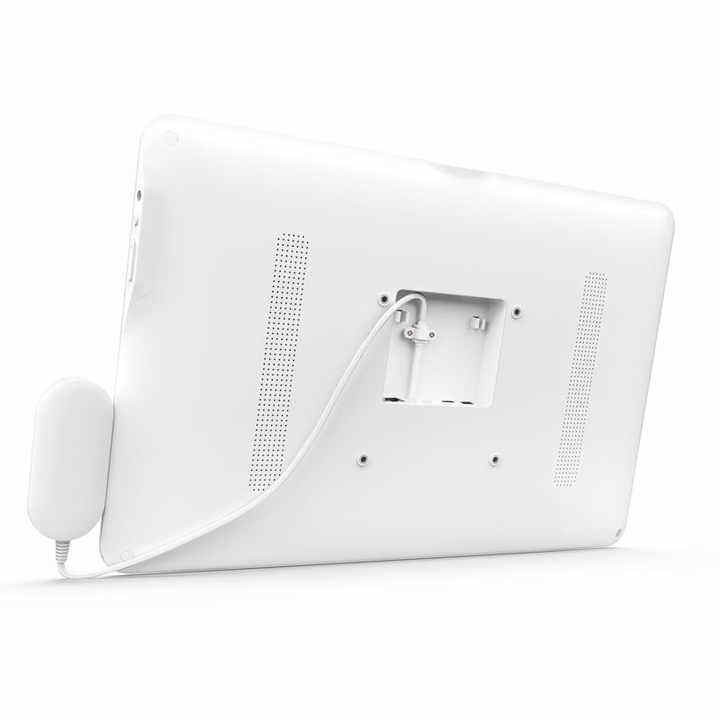

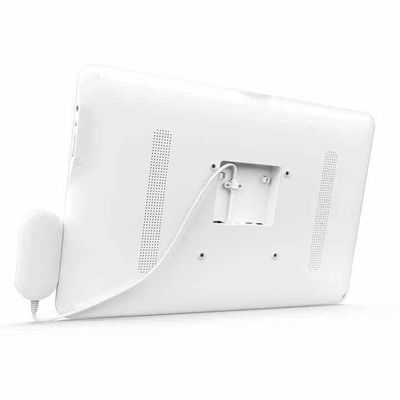

  • With Call handgrip
Parameter
System
CPU RK3566  Quad core cor-tex A55
RAM 2GB
Internal memory  16GB
Operation system Android 11
Touch screen 10-Point capacitive touch
Display
Panel 15.6"LCD panel
Resolution 1920*1080
Display mode Normally black
viewing angle 80/80/80/80(L/R/U/D)
Contrast ratio 600
Luminance 250cdm2
Aspect Ratio 16:9
Network
WiFi 802.11b/g/n/ac,2.4G/5G
Ethernet 100M/1000M
Serial port Serial port( TTL format)
Bluetooth Bluetooth 5.0
Interface
Type-c USB OTG Only
Power Jack  DC power input
RJ45 Ethernet interface  ( POE function standard, IEEE802.3at,POE+,class 4, 25.5W  )
USB USB Host 2.0
Serial 8PIN, 2.0MM ( TTL fomat)
Earphone 3.5mm earphone +microphone
Media play
Video format MPEG-1,MPEG-2,MPEG-4,H.265,H.264,VC-1,VP8,VP9, etc.,support up to 4K
Audio format MP3/WMA/AAC etc.
Photo jpeg
Other
Stand yes
Light sensor Support
NFC Optional ,(NFC 13.56MHz,ISO14443A/ISO14443B/ISO 15693/Mifare classic/Sony felica)
Speaker 2*3W
Camera 5.0M/P,front camera
Microphone Standard Dual microphone
Language Multi-language
Working temp 0--40degree
Accessories
Adapter Adapter,12V/2A
User manual yes
Call handgrip yes
Products Description



15.6Inch Screen

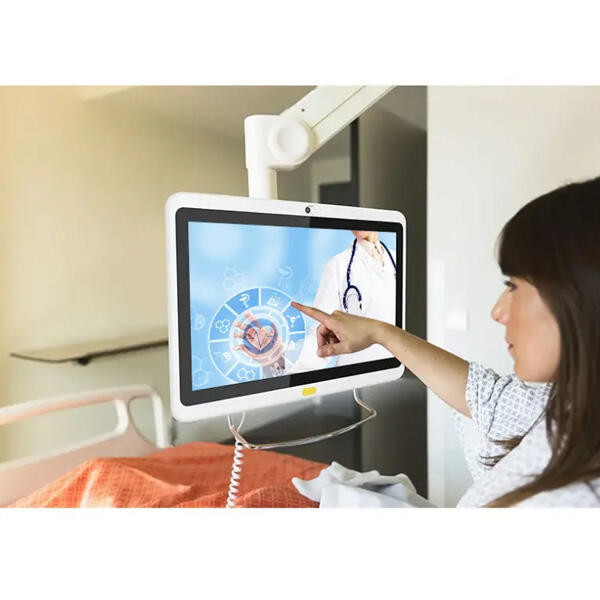

This tablet is designed with a 15.6 -inch size. Compared to 13.3 inches, the screen is larger, showing more areas, and at the same time, it will not be too bulky and easy to use. Larger screens, more operation space, more intuitive viewing content, and improving work efficiency. The design of the bracket is suitable for not only to display the patient's information by the bed by the bed, or it can be used for doctors to carry with them. It can be used for many scenarios and other scenarios.

multi size.jpeg



1920x1080 Resolution

With the high -definition resolution of 1920x1080, the screen can display more high -definition images. The viewing of charts and images is clearer and better.

stand by me tv 1080p(35e13e965e).jpg



RK3566 CPU

Equipped with RK3566 is a quad -core processor with high performance and low performance, which can effectively process patient information and suitable for daily use of tablets. With 2+16GB memory, it is enough to meet the daily needs such as electronic health records and patient information query.

RK3566 4+64GB.jpg



Grade A Original Screen
Use BOE grade A original screen,work stably.Long Service Life,no jitter on the picture.High-definition display,beautiful picture quality.

hd screen medical tablets.jpg

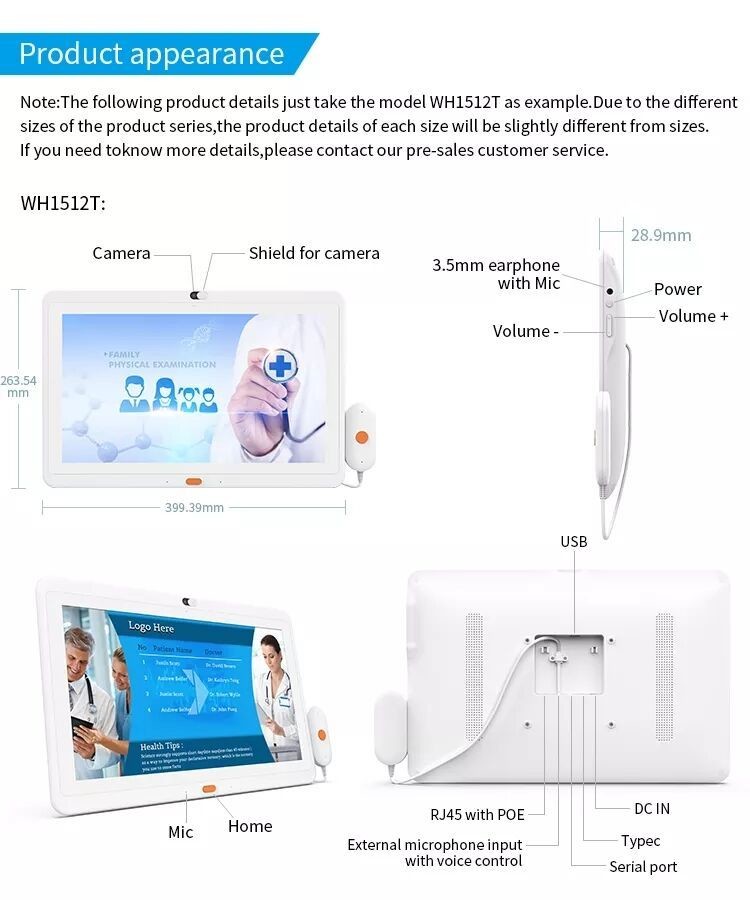

Hidden camera

For the special environment of the hospital, we designed a privacy camera. A slide film is installed in front of the camera. When you need it, you can open the slide to the right. If you do n’t use it, hide the camera, which greatly guarantees the privacy and safety of the patient and enhances the user's experience.

hospital tablets with camera.jpg

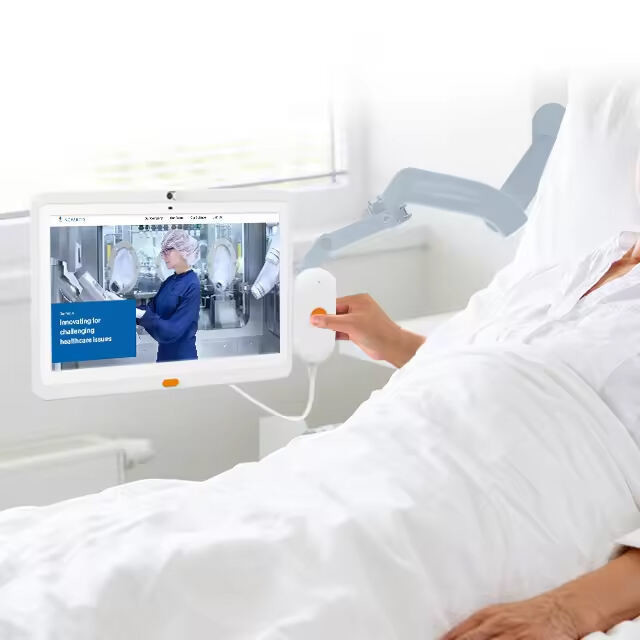

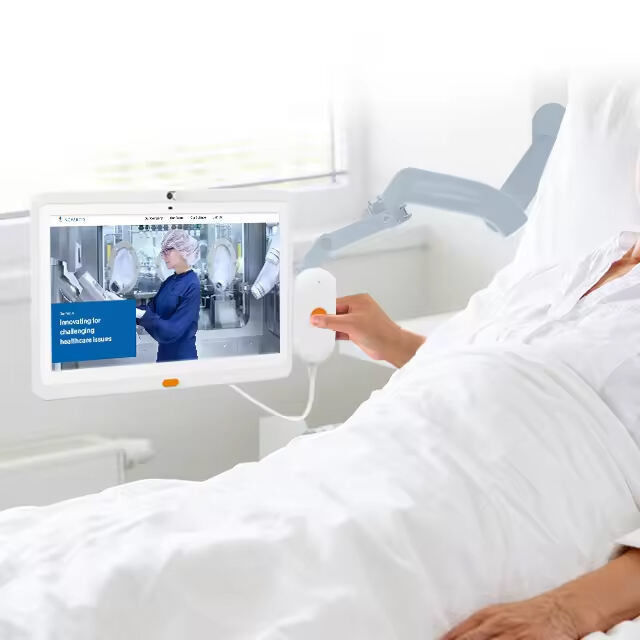

One-click call system

The equipment is equipped with a one -click call handle. Patients can quickly call the nursing staff, and the doctor can also communicate with the patient in real time through the handle to improve efficiency.

medical tablets with call.jpg



POE Power

The tablet has a POE function. A network cable can be powered and data transmission at the same time, simplifies the wiring, improves the integration of the ward, and is more convenient to use. No power cord is required, it can be flexibly installed in different positions to meet the needs of various scenarios. POE has higher power supply safety, saves costs, has better effect, and enhances user experience.

medical grade tablet poe.jpg

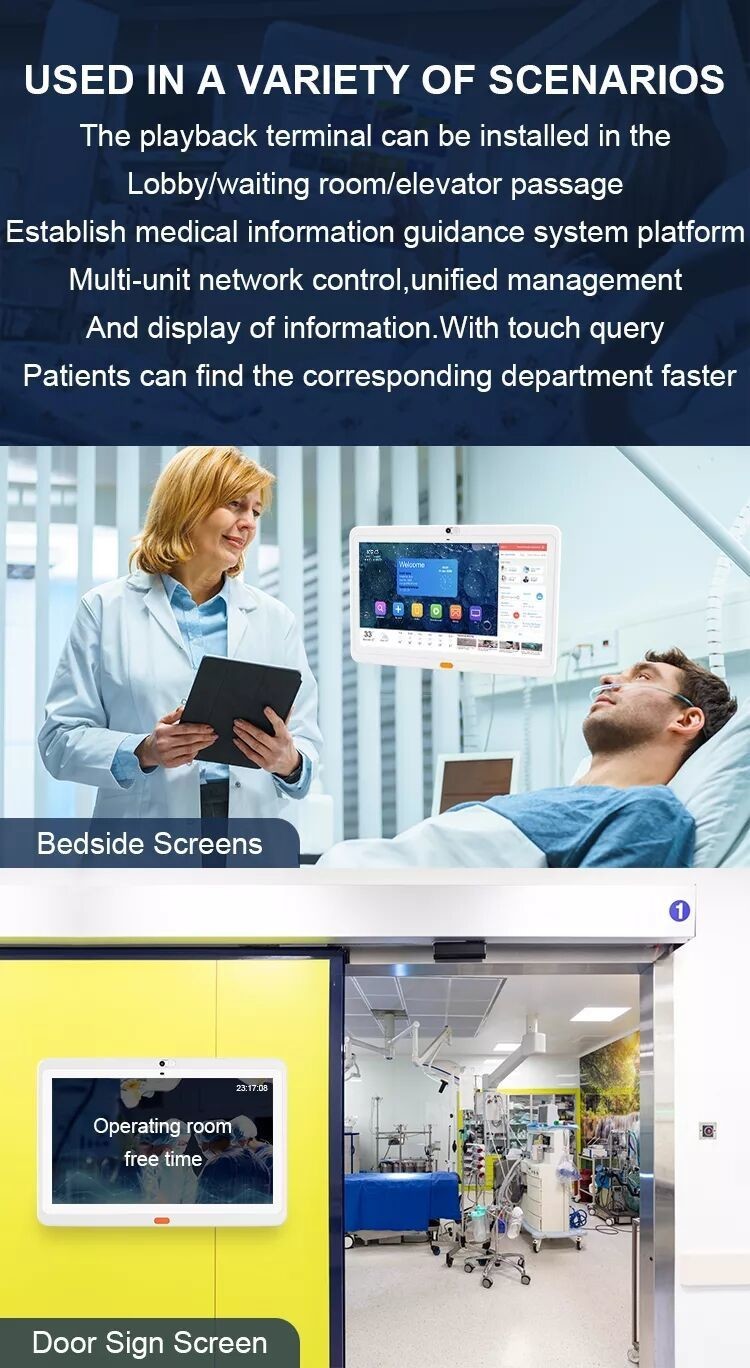

Widely use

The playback terminal can be installed in the Lobby/waiting room/elevator passage.Establish medical information guidance system platform.Multi-unit network control,unified management.And display of information.With touch query Patients can find the corresponding department faster.

widely use tablets.jpgtablets hospital with base.jpg

Packaging

Packaging support customization, users can customize logo tags on the box. Customized packaging can be customized according to the different needs of the user.
