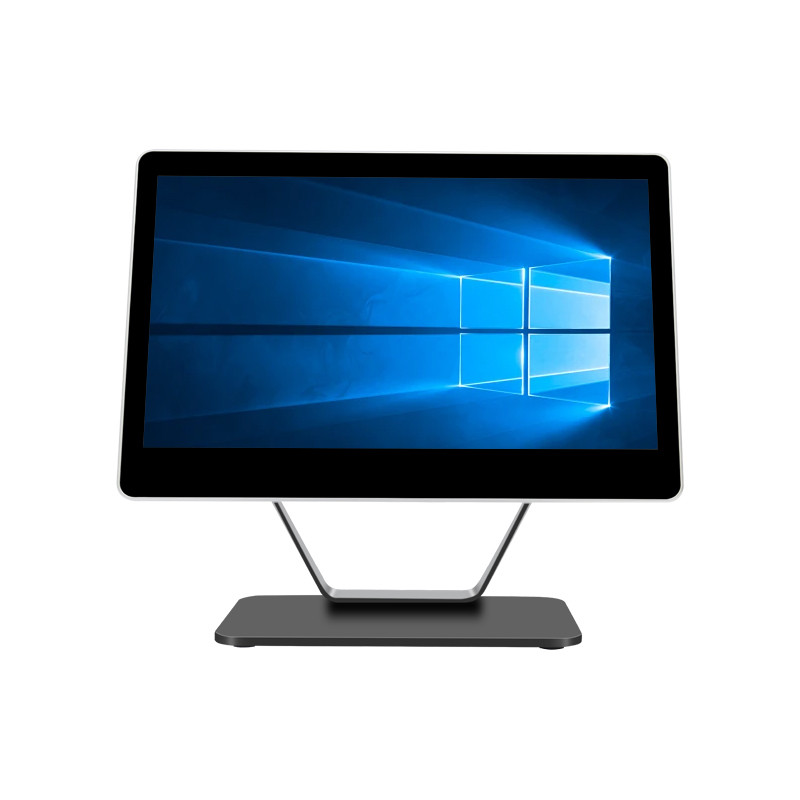

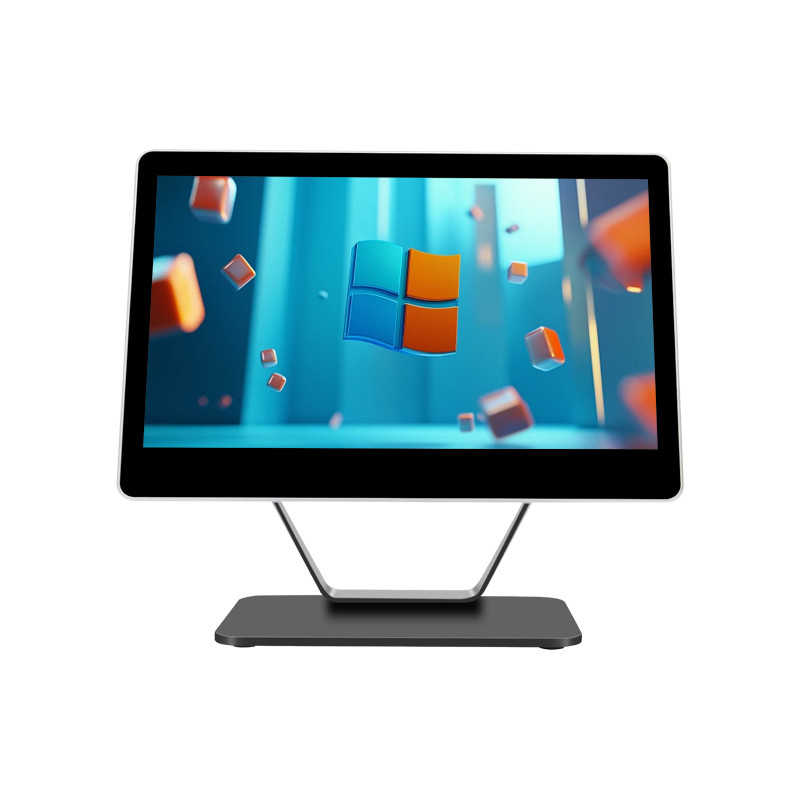

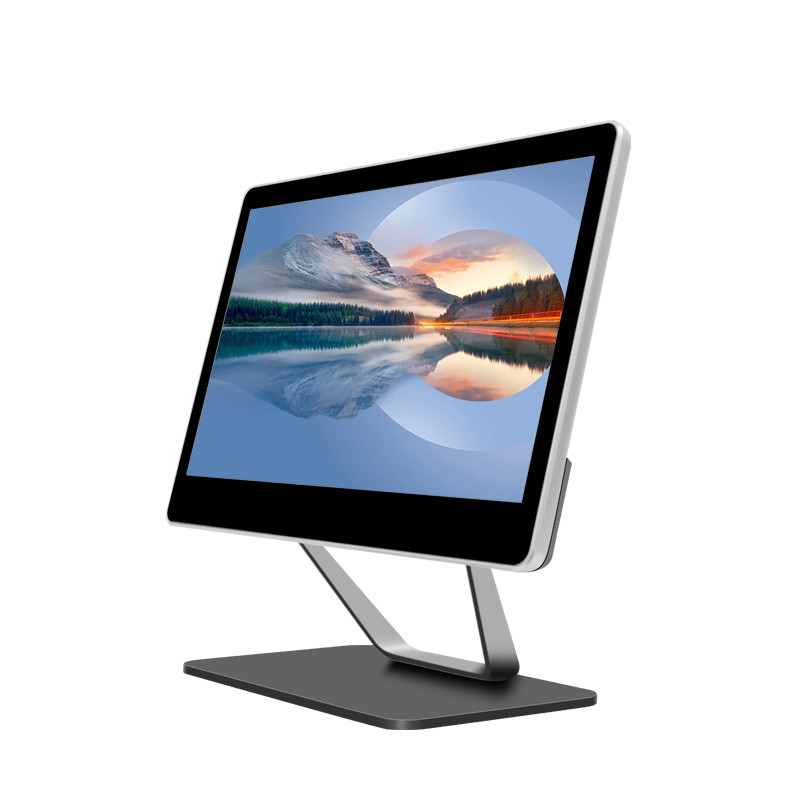

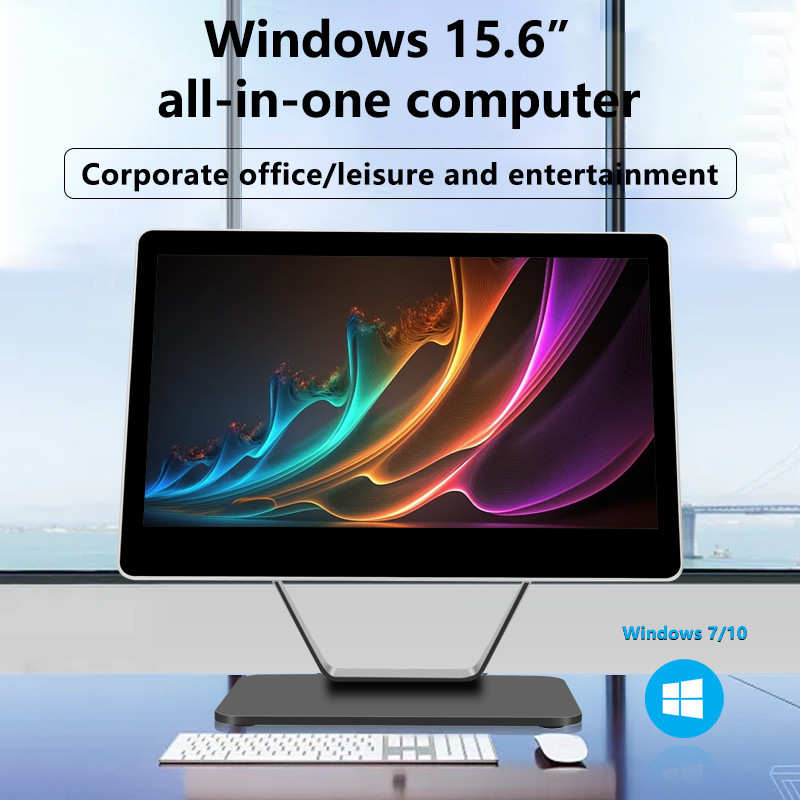

15.6" LCD Panel Capacitive Touch Screen POS Terminal Win7/8/10 Cash Register All-in-One System for Hospitality Industry
15.6 inch POS touch screen
,capacitive touch cash register
,hospitality POS all-in-one system
Designed for hospitality environments where efficient transaction processing and dependable daily operation are essential, this 15.6-inch All-in-One POS Terminal combines a commercial-grade touch display, Windows platform compatibility, and integrated desktop deployment into a compact checkout solution. The system provides a responsive touch interface for order entry, payment processing, and cashier operations while supporting a wide range of POS peripherals through multiple communication interfaces. Its industrial display, Gigabit Ethernet connectivity, and expandable storage architecture make it suitable for hotels, restaurants, cafés, and other hospitality businesses seeking a reliable front-end transaction terminal.

| Feature Group | Feature Name | Feature Value |
|---|---|---|
| RS602 POS AIO | Size | 15.6 inch |
| Touch screen | Capacitive screen | |
| Interface | USB 6; 1 serial port; 1 network port; 2 audio ports; 1 VGA |
|
| color | white/black | |
| Power supply | 12V/5A | |
| Ram+Rom | 2+32GB | |
| Screen | TN/IPS | |
| Storage | SSD/HDD | 2GB+32GB |
| SATA Slot | 1 * mSATA Slot | |
| Display | LCD Panel | Industrial 15.6" TFT LED |
| Resolution | 1366X768 | |
| Brightness | 300 cd/㎡ | |
| Touch Screen | 10 Points capacitive touch panel | |
| I/O Ports | USB | USB2.0: 6 * Rear I/O + 2 * Header ((Internal, reserved for touch screen,MSR) |
| Serial | 1 * COM(DB9) | |
| LAN | 1 * Realtek FE LAN chip (10/100/1000 Mbps) | |
| VGA | 1 * VGA(DB15) | |
| Audio | ALC662 5.1 Channel HDA Codec , Support MIC/Line-out Ports |
The terminal features a 15.6-inch industrial TFT LED display with a 1366 × 768 resolution and up to 300 cd/m² brightness, delivering clear on-screen information for daily checkout tasks. A 10-point capacitive multi-touch panel enables smooth interaction with POS software, allowing staff to navigate menus, enter orders, and complete transactions efficiently. The display is available with TN or IPS panel options as listed on the product page, providing deployment flexibility while maintaining consistent touch responsiveness for high-frequency commercial use.

Supporting Windows 7, Windows 8, and Windows 10, the terminal integrates easily into existing hospitality software environments without requiring major system changes. The listed hardware configuration includes 2GB memory with 32GB storage, while the product page also references an optional 32GB memory configuration. An integrated mSATA slot provides additional storage expansion capability, allowing businesses to adapt the platform to changing application requirements while preserving compatibility with established POS software ecosystems.

Hospitality checkout stations often require multiple external devices, and this POS terminal is designed to simplify system integration. The rear I/O configuration includes six USB 2.0 ports with two additional USB headers, along with a COM port, VGA output, Ethernet connection, and dual audio interfaces. These interfaces allow convenient connection to commercial POS peripherals, external displays, receipt printers, payment devices, and other business equipment. The standardized interface layout also helps reduce deployment complexity for system integrators and IT teams.


Reliable communication is essential for connected POS environments. The integrated Realtek Gigabit Ethernet controller supports 10/100/1000 Mbps network communication, enabling stable connectivity with local business systems and network infrastructure. Combined with a regulated 12V/5A power supply, the desktop all-in-one architecture is designed for continuous operation in hospitality service areas where dependable transaction processing and uninterrupted system availability are important to daily business workflows.


Built as a compact desktop All-in-One POS terminal, this solution combines commercial display technology, responsive touch interaction, Windows compatibility, and extensive peripheral connectivity within a single hardware platform. The integrated design minimizes installation complexity while providing flexibility for future expansion through storage upgrades and external device connections. For hospitality businesses planning new POS deployments or upgrading existing checkout stations, the platform offers a practical foundation for evaluation, software integration, and long-term operational use.




- Quality: We have a strict quality control system. All products ordered from our factory are inspected by a professional quality control team.
- After-sales service: We provide after-sales service team, all problems and questions will be resolved by our after-sales service team.
- MOQ: We accept small orders and mixed orders. According to our customers' requirements, as a dynamic team, we want to connect with all our customers.
- Experience: As a dynamic team, through our more than 10 years of experience in this market, we are still continuing to research and learn more knowledge from customers, hoping that we can become the largest and professional supplier in China in this market Business one.
- OEM: Accept ODM/OEM.
- Samples: We provide of this product from our source.
- Production time: within 7 working days after confirming the order.


We offer high quality products and the best after-sales services to clients. We adhere to the principle of "credibility first and
service oriented. We have set up departments of scientific research, management and production. Our production base covers 3,000
square meters, with a dust-free professional workshop and 4 supporting comprehensive production lines.





- 1. What is your company's main product? A:Our main product is digital photo frames, tablet pc , advertising players.
- 2. Q:What is the minimum order? A: yes, our company mainly deals in wholesale business,but if you insist on buying one, or you only need one set,we will also deliver the goods to you.
- 3. Q:What payment methods your company accept? A:We accept most of the payment methods,but mainly accept T/T, Western Union/ assurance trade payment.
- 4. Q:I haven't done business with you guys before,how can i trust your company? A:Our company has been in .com for 11,which is longer than most of our fellow suppliers,we've been golden suppliers for years.what's more,we've got quite a lot authority certificates,for example,CE, ROHS, FCC, On site checkcertificate.
- 5. Q:what's the shipment terms and delivery time of your company? A:Well, they depends on the quantity of your order.As you know ,we need time to manufacture the machines.but mostly ,the shipment time is 3-8 working days after delivery.As for detailed cost, it depends on your final order.
- 6. Q:I would like to ask you if it's possible to have my logo on the product. A:Yes, Our one-stop service can be customized according to customer requirements ODM/OEM development design production and processing
