9.7 inch Android 13 Automation Tablet All-in-one RK3566 Smart Home Control Screen

Specifications Product Description Request A Quote
Specifications
Specifications
Highlight:

9.7 inch Android 13 Automation Tablet

,

All-in-one Smart Home Control Screen

,

RK3566 Smart Home Control Screen

Product Description
  • Video
  • Features
  • Parameter
  • Products Description
  • Packaging
  • Recommended Products
Video
Features

Tablet Key Features

  • CPU:RK3566  Quad core cortex A55
  • RAM:4 GB
  • Memory:32/64 GB
  • System:Android 13
  • Panel: 9.7 "high-definition full view screen  full lamination
  • Resolution: 1536x2048
Parameter
System
CPU RK3566  Quad core cortex A55
RAM 4/8GB
Internal memory  32/64GB
Operation system Android 13
Touch screen 10-Point capacitive touch
Display
Panel 9.7 "high-definition full view screen  full lamination
Resolution 1536*2048
Display mode Normally black
Viewing angle 85/85/85/85(L/R/U/D)
Contrast ratio 900
Luminance 250cd/m2
Aspect Ratio 4:3
Touch
Model Type  Capacitive touch screen
Number of points 10-Point
Interface for touch USB
Network
WiFi 802.11a/b/g/n/ac/ax(WiFi 6E),802.15.4/Thread
Buletooth Bluetooth 5.3
Zigbee Protocol Supports Zigbee protocol device connection
Matter Protocol Supports the connection of Matter protocol devices
Interface
Type-C USB2.0 supports OTG functionality
Relay port Control home devices that support Relay connections
RS-232 Serial port Communicating with RS232 devices
RS-485 Serial port Communicating with RS485 devices
IR port Used for infrared remote control, with an external plug-in receiver, which can control the device
I/O port Input (output) ports between equipment and external devices

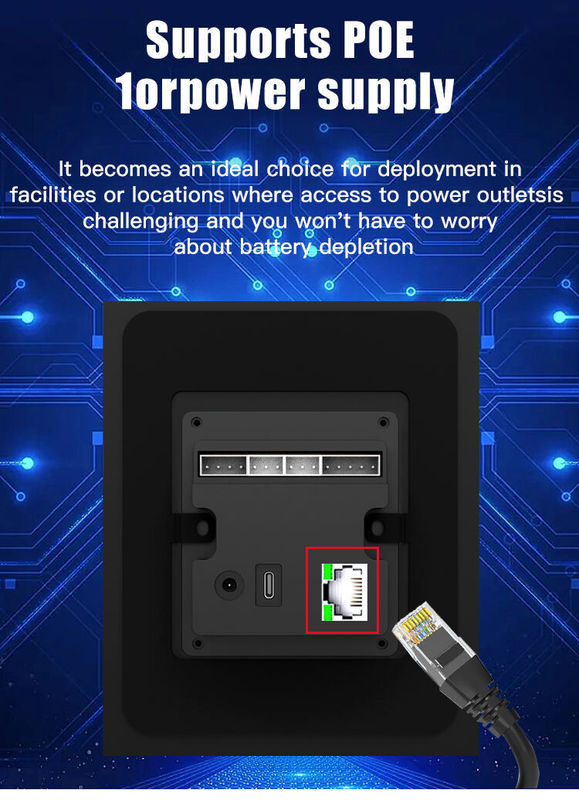

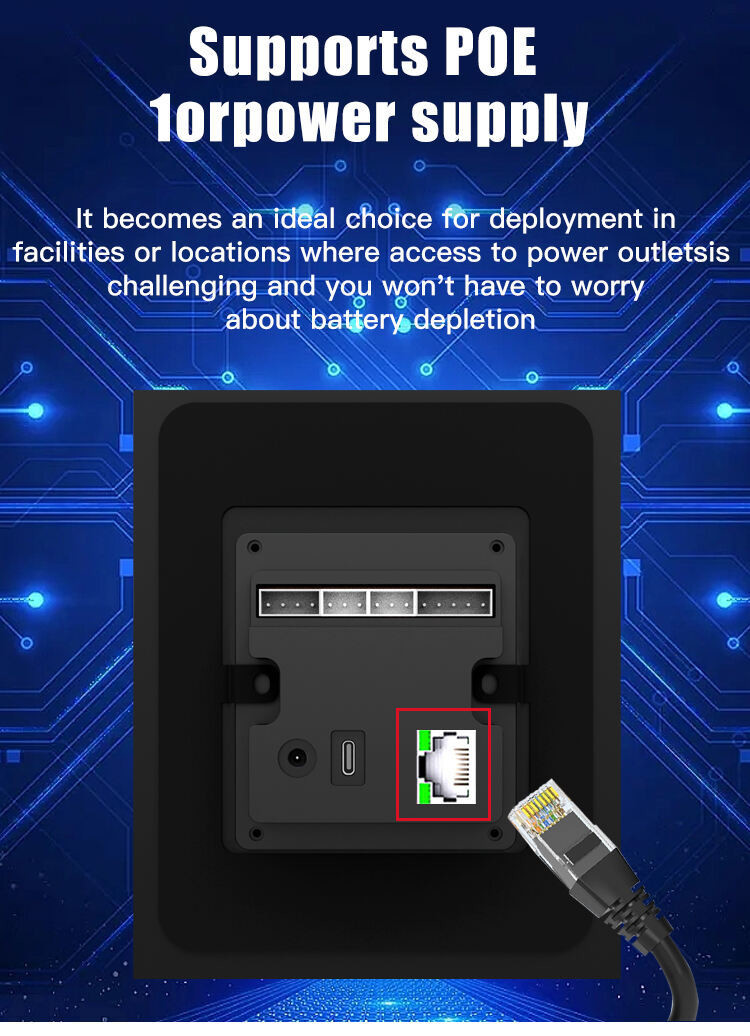

RJ45  Ethernet interface  ( POE function standard  IEEE802.3at,POE+,class 4, 25.5W  )
Power jack  DC power input
Media play
Video format MPEG-1,MPEG-2,MPEG-4,H.265,H.264,VC-1,VP8,VP9, etc.
Audio format MP3/WMA/AAC etc.
Photo jpeg
Other
Microphone Four microphones
Speaker 2*2W BOX chamber horn
LED light strip RGB
Temperature and humidity sensor YES
Light Sensor YES
G-sensor YES
Camera 5MP from a conventional perspective
Working temp 0--40degree
Certificates 3C,FCC,CE,ROHS etc.
Language Multi-language
Usage Wall hanging (standard accessory)
Accessories
Adapter Adapter,12V/1.5A
User manual yes
Products Description

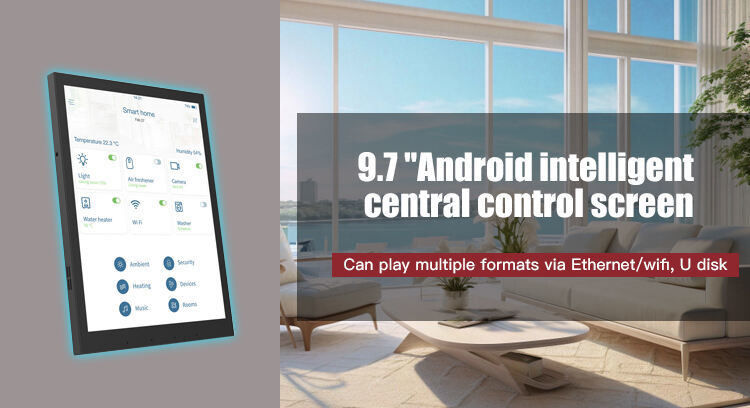

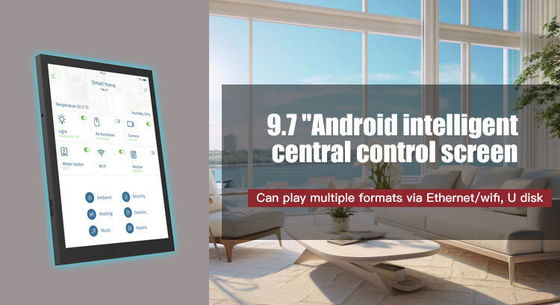

9.7Inch screen

The size of 9.7 inches is moderate in size, which is convenient for daily touch operation and use. It is convenient to install on the wall, occupying small space and looks more beautiful.

9.7 inch Android 13 Automation Tablet All-in-one RK3566 Smart Home Control Screen 09.7 inch Android 13 Automation Tablet All-in-one RK3566 Smart Home Control Screen 1

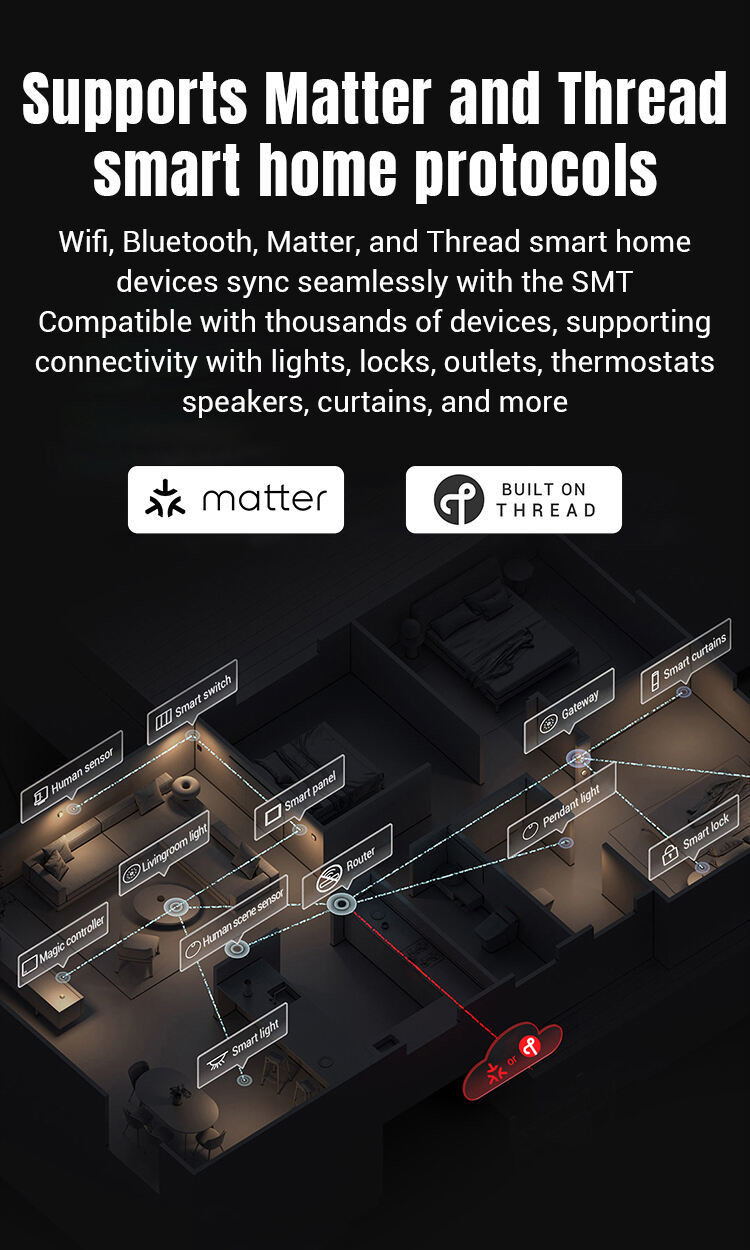

Connect to various devices

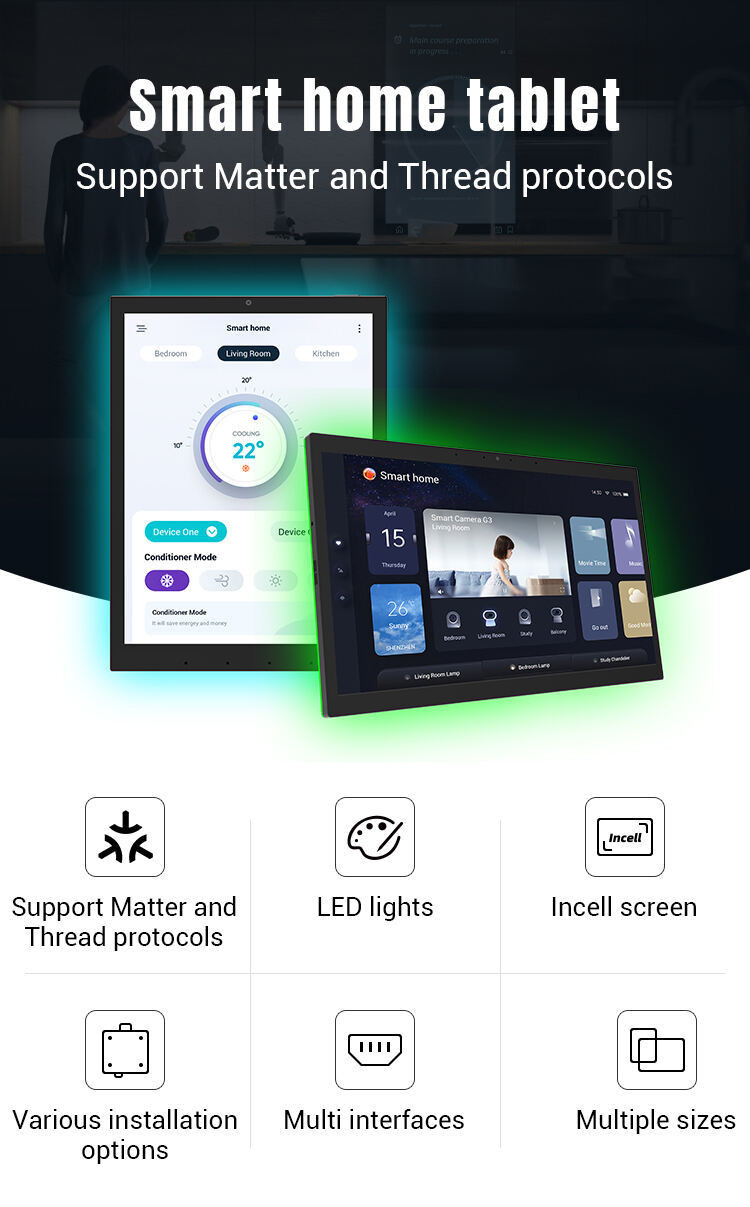

Wifi, Bluetooth, Matter, and Thread smart home devices sync seamlessly with the SMT Compatible with thousands of devices, supporting connectivity with lights, locks, outlets, thermostats speakers, curtains, and more.

9.7 inch Android 13 Automation Tablet All-in-one RK3566 Smart Home Control Screen 2

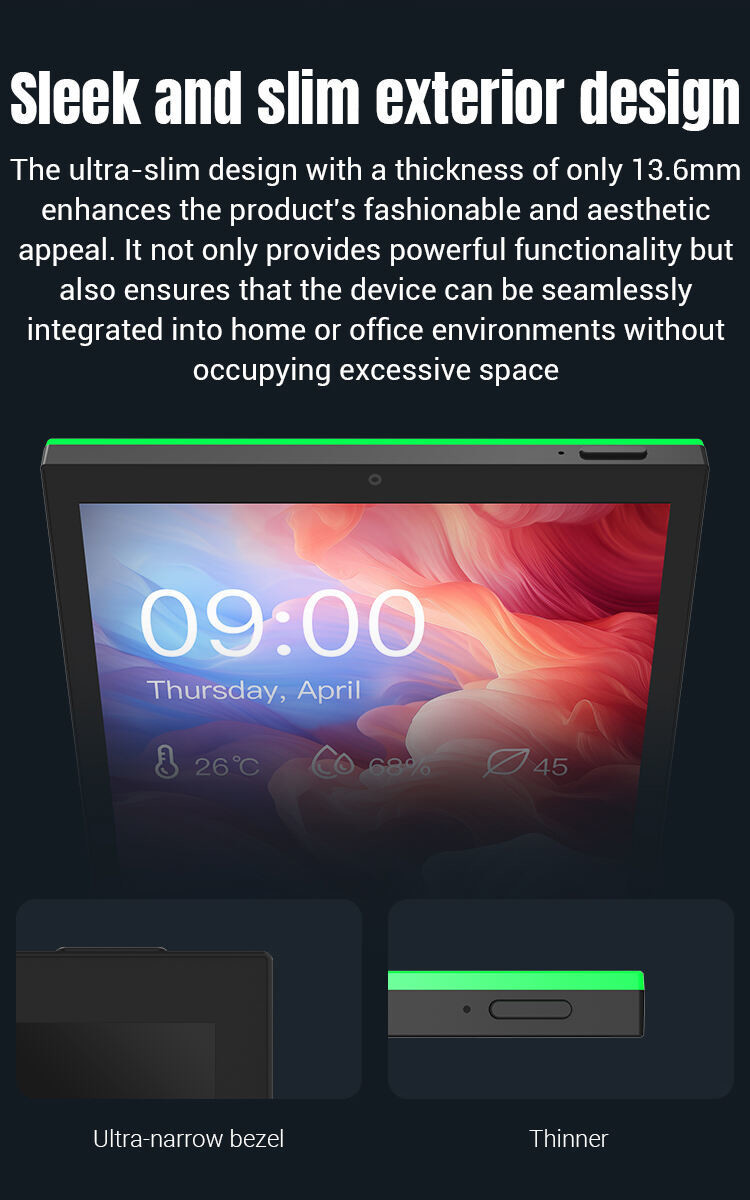

Slim design

The ultra-slim design with a thickness of only 13.6mm enhances the product's fashionable and aesthetic appeal. lt not only provides powerful functionality but also ensures that the device can be seamlessly integrated into home or office environments without occupying excessive space.

9.7 inch Android 13 Automation Tablet All-in-one RK3566 Smart Home Control Screen 3



Adopting In-cell technology

Utilizing In-Cell technology, the screen is thinner andclearer, coupled with a 10-point capacitive touch enhancing the flexibility of user-device interaction and elevating the overall user experience.

9.7 inch Android 13 Automation Tablet All-in-one RK3566 Smart Home Control Screen 4

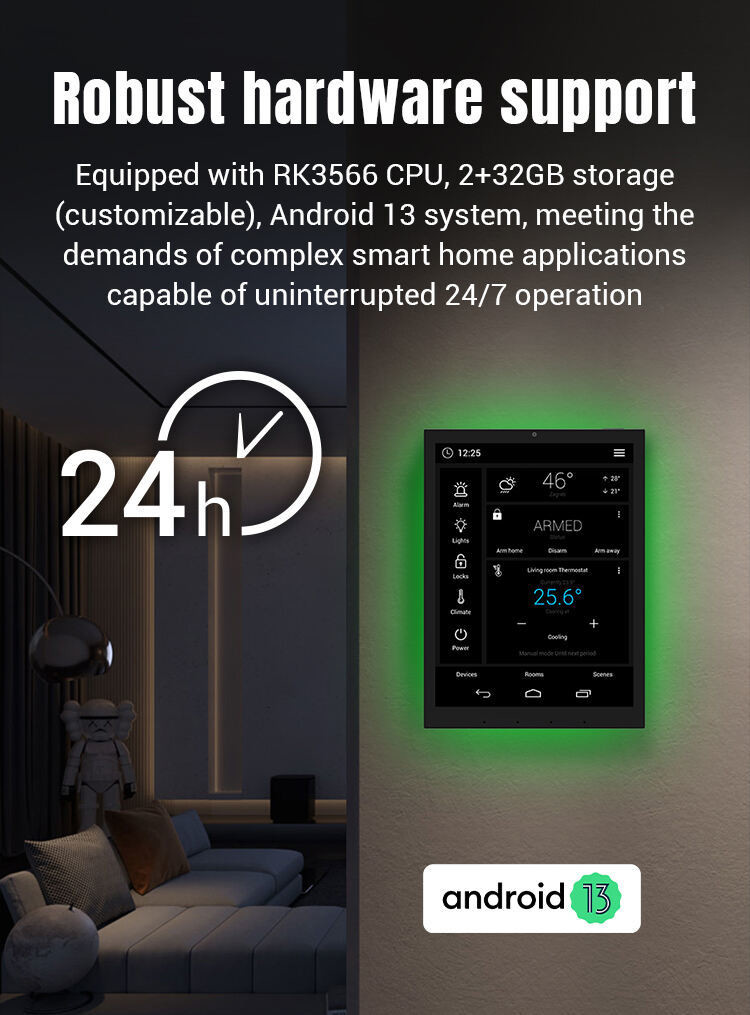

Customized support

Equipped with RK3566 CPU, 2+32GB storage(customizable), Android 13 system, meeting the demands of complex smart home applications capable of uninterrupted 24/7 operation.

9.7 inch Android 13 Automation Tablet All-in-one RK3566 Smart Home Control Screen 5

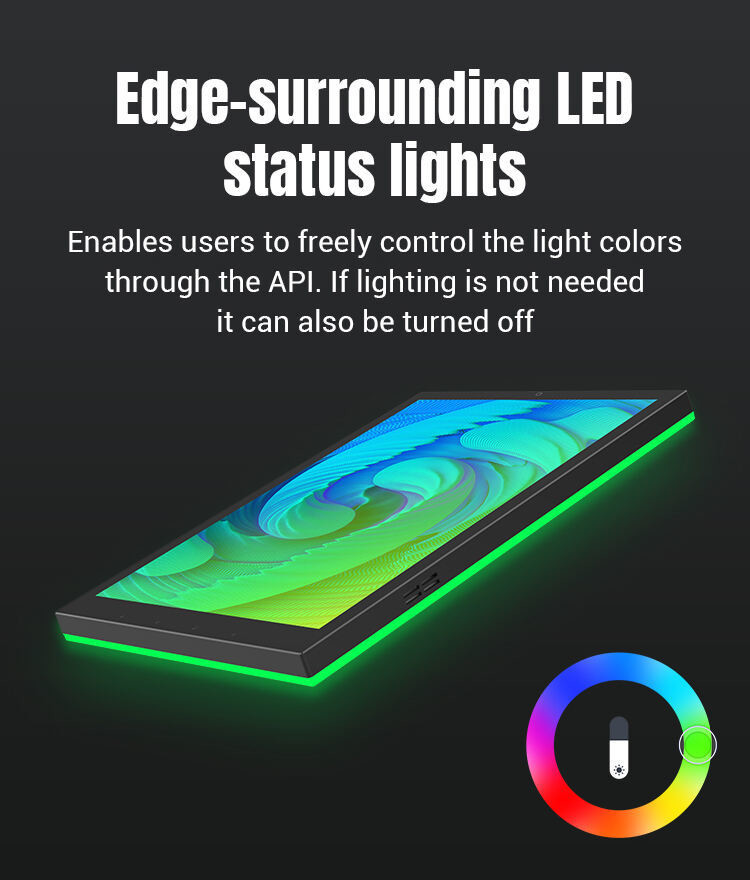

Surrounding LED Lights

Enables users to freely control the light colors through the APl. lf lighting is not needed it can also be turned off.

9.7 inch Android 13 Automation Tablet All-in-one RK3566 Smart Home Control Screen 6

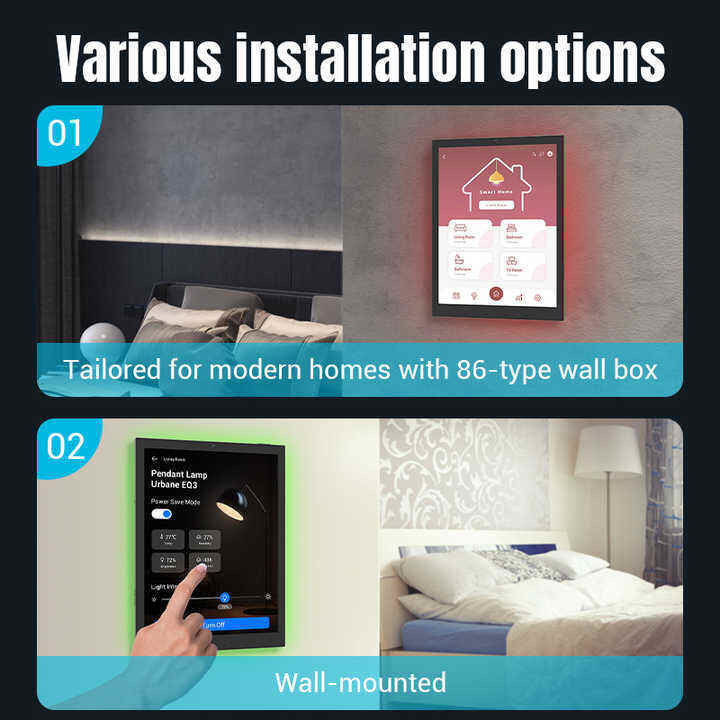

Various installation options

Tailored for modern homes with 86-type wall box.The equipment also supports wall -mounted design, and the installation method is more flexible.

9.7 inch Android 13 Automation Tablet All-in-one RK3566 Smart Home Control Screen 79.7 inch Android 13 Automation Tablet All-in-one RK3566 Smart Home Control Screen 8

Packaging

Packaging support customization, users can customize logo tags on the box. Customized packaging can be customized according to the different needs of the user.
