15.6 Inch RK3399 Wall Mounted Android Tablet Perfect for Smart Home Screen Control

Specifications Product Description Request A Quote
Specifications
Specifications
Highlight:

RK3399 Wall Mounted Android Tablet

,

Smart Home Screen Control Android Tablet

,

15.6 Inch Wall Mounted Android Tablet

Product Description
  • Video
  • Features
  • Parameter
  • Products Description
  • Packaging
  • Recommended Products
Video
Features

Tablet Key Features

  • CPU:RK3399
  • RAM:4 GB
  • Memory:32 GB
  • System:Android 13
  • Panel: 15.6 "high-definition full view screen fully bonded
  • Resolution: 1920x1080
  • Support POE
  • Four sides led light strip
Parameter
System
CPU RK3399,Dual-core A72+quad-core A53
RAM 4GB
Internal memory  32GB
Operation system Android 13
Touch screen 10-Point capacitive touch
Display
Panel 15.6 "high-definition full view screen   fully bonded
Resolution 1920*1080
Display mode Normally black
Viewing angle 85/85/85/85(L/R/U/D)
Contrast ratio 1000
Luminance 300cd/m2
Aspect Ratio 16:9
Network
WiFi 802.11a/b/g/n/ac/ax(WiFi 6E),802.15.4/Thread
Buletooth Bluetooth 5.3
Zigbee Protocol Supports Zigbee protocol device connection
Matter Protocol Supports the connection of Matter protocol devices
Ethernet 100M/1000M ethernet

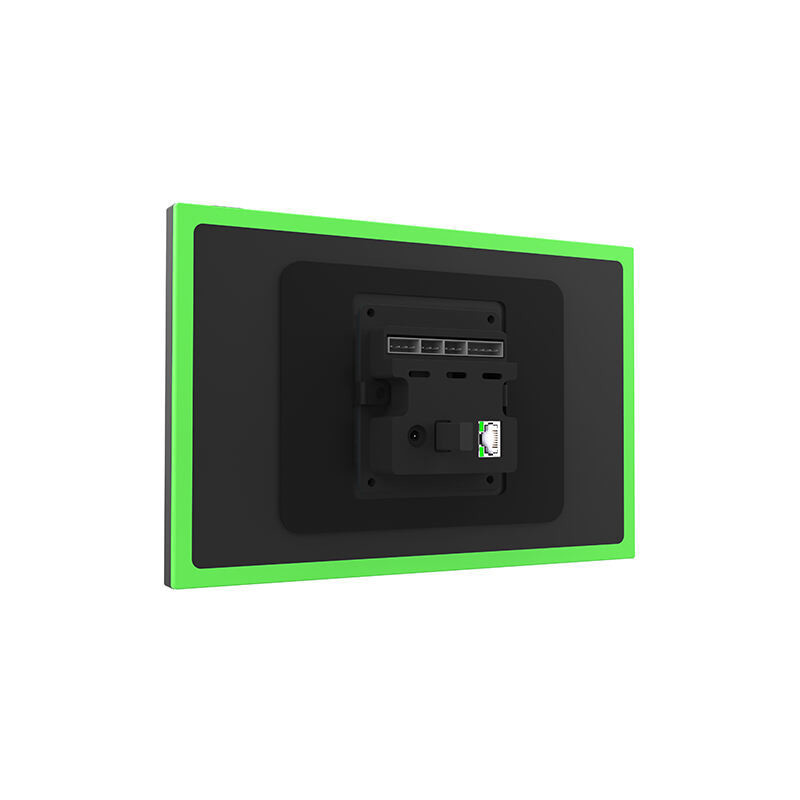

Interface
Type-C USB2.0 supports OTG functionality
Relay port Control home devices that support Relay connections
RS-232 Serial port Communicating with RS232 devices
RS-485 Serial port Communicating with RS485 devices
IR port Used for infrared remote control, with an external plug-in receiver, which can control the device
I/O port Input (output) ports between equipment and external devices
RJ45  Ethernet interface  ( POE function standard  IEEE802.3at,POE+,class 4, 25.5W  )
Power jack  DC power input
Media play
Video format MPEG-1,MPEG-2,MPEG-4,H.265,H.264,VC-1,VP8,VP9, etc.
Audio format MP3/WMA/AAC etc.
Photo jpeg
Other
Microphone Four microphones
Speaker 2*2W BOX chamber horn
LED light strip RGB
Temperature and humidity sensor YES
Light Sensor YES
G-sensor YES
Camera 5MP from a conventional perspective
Working temp 0--40degree
Certificates 3C,FCC,CE,ROHS etc.
Language Multi-language
Usage Wall hanging (standard accessory)
Accessories
Adapter Adapter,12V/2A
User manual yes
Products Description

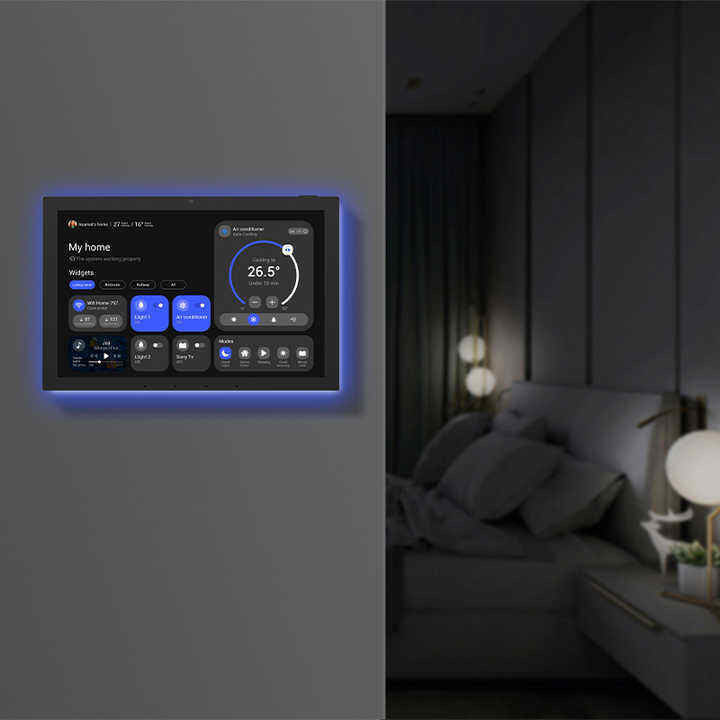

15.6Inch screen

With a 15.6 -inch size, compared to 10.1 inches, it provides a larger display area and has more display content. You can view a variety of information on a screen at the same time without the need for tedious switching interface.

15.6 Inch RK3399 Wall Mounted Android Tablet Perfect for Smart Home Screen Control 0



POE Power

The setting of the POE simplifies the installation of the tablet. Without the power cord, it can be used where there are network cables. It improves the flexibility of equipment use and is more portable.

15.6 Inch RK3399 Wall Mounted Android Tablet Perfect for Smart Home Screen Control 1



RK3399 CPU

Using RK3399 CPU, it is a low-power, high-performance processor. It uses a large and small nucleus architecture, four A53 small cores+two A72 large cores, internal integrated GPUMALI-T860, supports decoding 4K, encoded 1080P. The RK3399 processor is powerful, the response speed is fast, and the user's operating equipment is more silky.

15.6 Inch RK3399 Wall Mounted Android Tablet Perfect for Smart Home Screen Control 2



4+32GB Memory

The memory is basically configured with 4+32GB, and the maximum can reach 4+64GB. Compared with 2GB, 4GB of RAM has a stronger task processing ability and smoother systems. Equipped with the Android system, reduce memory occupation and background process burden, reduce stuttering, and users use better.

15.6 Inch RK3399 Wall Mounted Android Tablet Perfect for Smart Home Screen Control 3



Slim design

The ultra-slim design with a thickness of only 13.6mm enhances the product's fashionable and aesthetic appeal. lt not only provides powerful functionality but also ensures that the device can be seamlessly integrated into home or office environments without occupying excessive space.

15.6 Inch RK3399 Wall Mounted Android Tablet Perfect for Smart Home Screen Control 4



In-cell touch

Utilizing In-Cell technology, the screen is thinner and clearer, coupled with a 10-point capacitive touch enhancing the flexibility of user-device interaction and elevating the overall user experience.

15.6 Inch RK3399 Wall Mounted Android Tablet Perfect for Smart Home Screen Control 5



Smart control

Wifi, Bluetooth, Matter, and Thread smart home devices sync seamlessly with the SMT Compatible with thousands of devices, supporting connectivity with lights, locks, outlets, thermostats speakers, curtains, and more.

15.6 Inch RK3399 Wall Mounted Android Tablet Perfect for Smart Home Screen Control 6



Four-sided lamp design

The four -sided lamp design is used to make users more convenient to find and use the equipment in a darkest environment. The design of the lamp belt adds the beauty of the device, and the message notification reminder can be set through different light flash mode setting through the light band, which increases practicality.

15.6 Inch RK3399 Wall Mounted Android Tablet Perfect for Smart Home Screen Control 715.6 Inch RK3399 Wall Mounted Android Tablet Perfect for Smart Home Screen Control 8

Packaging

Packaging support customization, users can customize logo tags on the box. Customized packaging can be customized according to the different needs of the user.

15.6 Inch RK3399 Wall Mounted Android Tablet Perfect for Smart Home Screen Control 9
