Product Details:
|
|
| Place of Origin: | Guangdong,China |
|---|---|
| Brand Name: | OEM /ODM |
| Certification: | CE&FCC |
| Model Number: | P1504 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 unit |
| Price: | Price can be negotiable |
| Packaging Details: | 50X14X41 |
| Delivery Time: | 5~7 days |
| Payment Terms: | T/T, L/C, Western Union, Paypal |
| Supply Ability: | 50000 pcs/month |
VGA HDMI VESA 75mm LED Computer Monitors 15.4 Inch LCD PC Monitor
15.4 Inch LCD PC Monitor Wide Screen VGA HDMI VESA 75mm Led Computer Monitors
1. Small size LCD monitor
2. OEM/ODM free of charge
3.19 years factory in China , Shenzhen,ISO9001 certificated .
| General | |||||
| LCD Type | 15.4” TFT LCD Monitor | ||||
| Video Input | HDMI, VGA | ||||
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | ||||
| Power Supply | Type: External brick | ||||
| Input (line) voltage: 100-240 VAC, 50-60 Hz | |||||
| Output voltage/current: 12 volts at 4 amps max | |||||

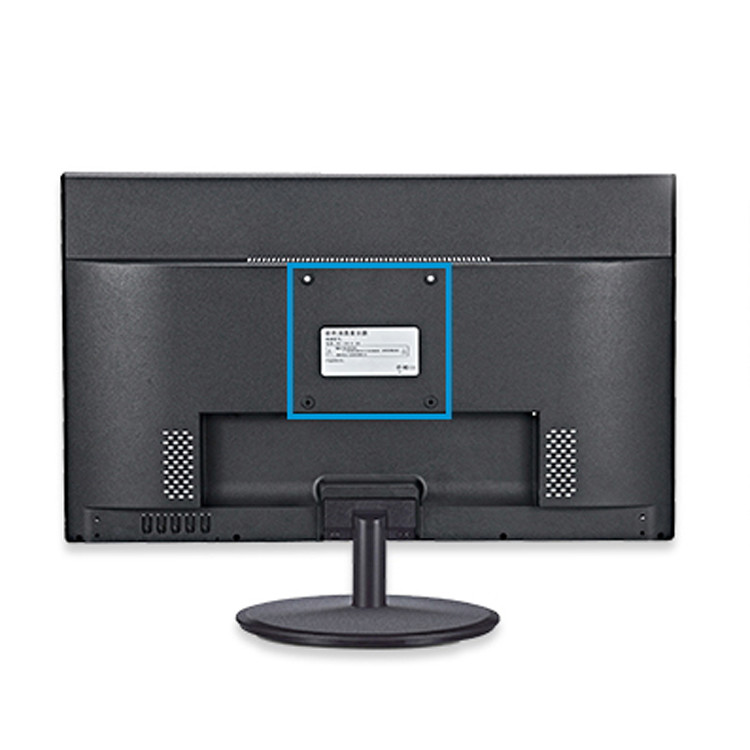

| Mount Interface | 1)VESA 75mm | ||||
| 2)Mount bracket, horizontal or vertical | |||||
| LCD Specification | |||||
| Active Area(mm) | 345.80 (H) x 195.20 (V) | ||||
| Device dimension | 375*238.5*34.5mm | ||||
| Resolution | 1280*800 | ||||
| VESA mount | 75x75mm | ||||
| Dot Pitch(mm) | 0.297×0.297 | ||||
| Nominal Input Voltage VDD | +3.3V(Typ) | ||||
| Viewing angle (v/h) | 80°/80° | ||||
| Contrast | 1000:1 | ||||
| Luminance(cd/m2) | 250cd/m2 | ||||
| Response Time(Rising/Falling) | 5ms/6ms | ||||
| Support Color | 16.2M | ||||
| Backlight MTBF(hr) | 50000 | ||||

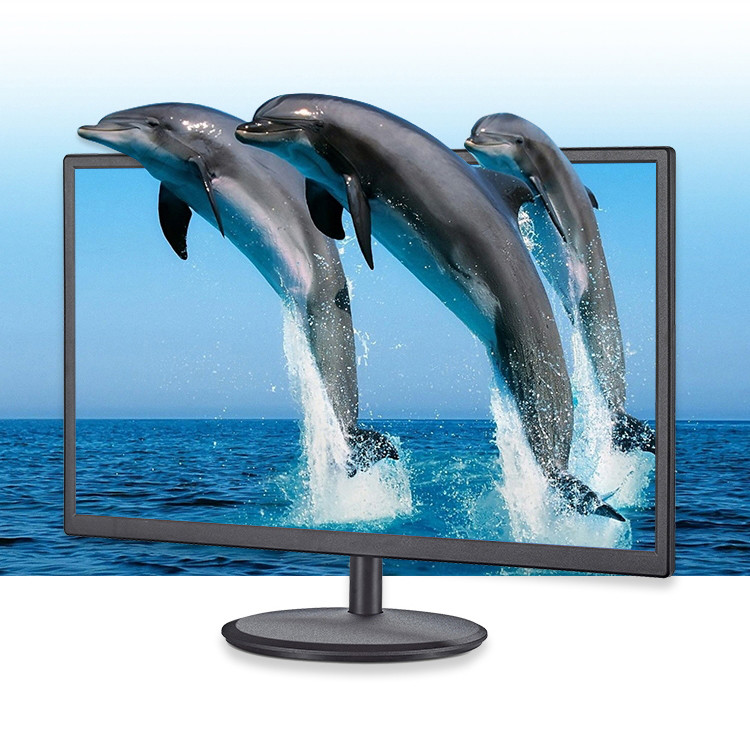

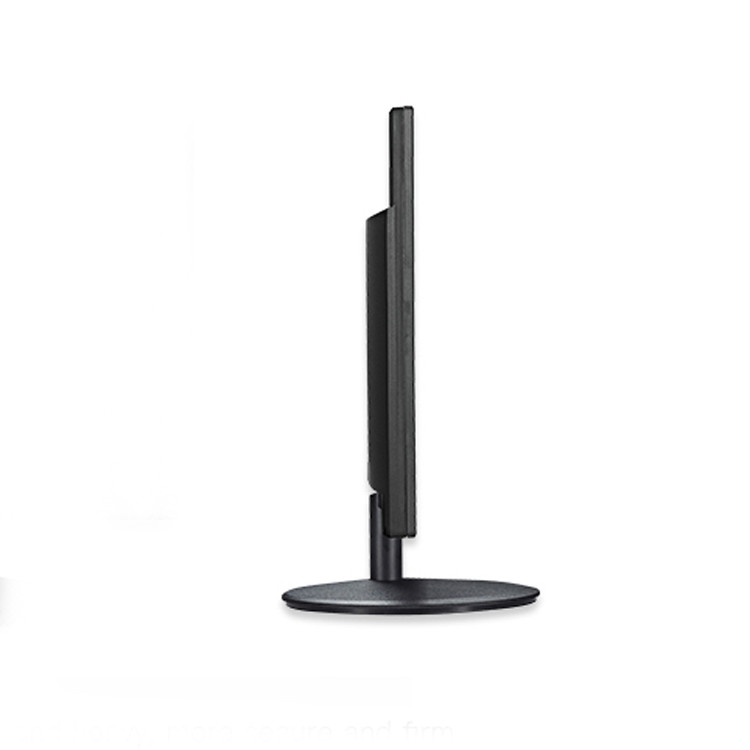

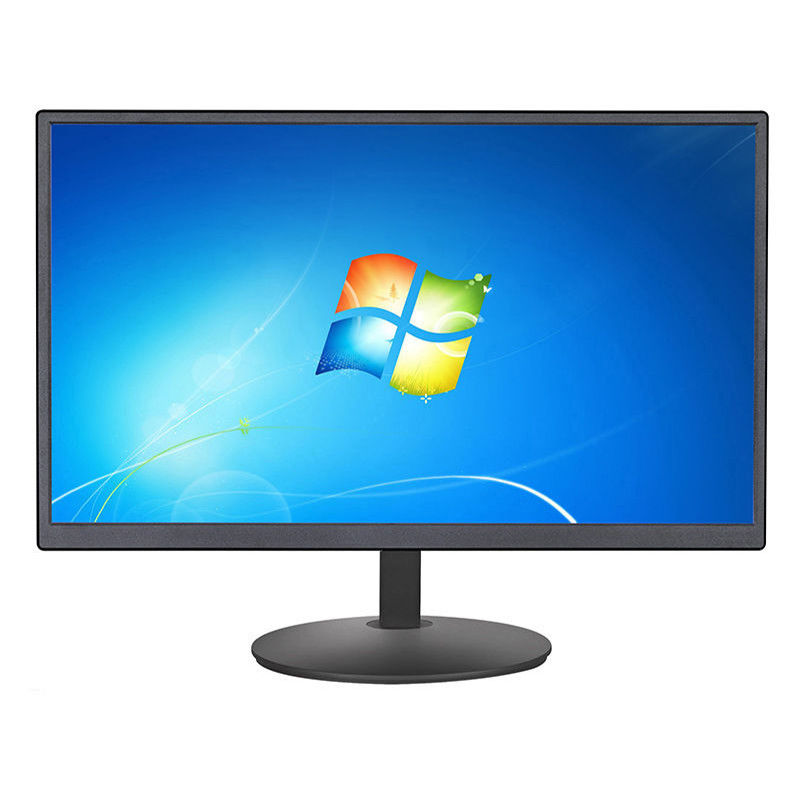

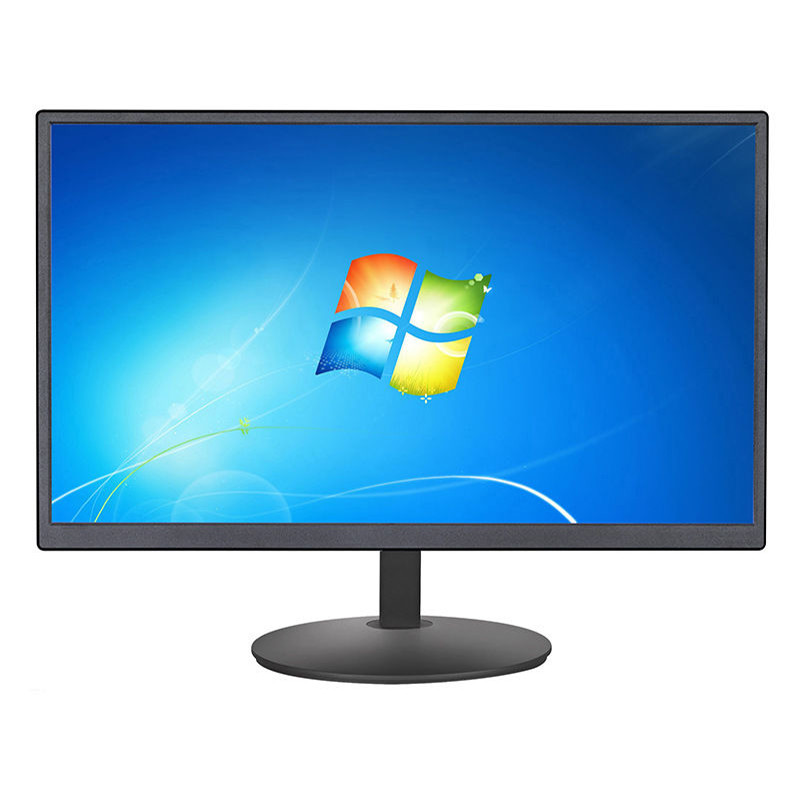

Detail pictures
