15 Inch PCAP Touch Monitor Pure Flat Screen With HD USB RS232

The 15-inch screen size and 1024*768 resolution provide a compact display format for equipment where screen space and enclosure size need to be controlled. This is particularly relevant when replacing an existing monitor, developing a new POS terminal, or integrating a touch interface into an industrial or ordering device. The 304*228 mm display area provides sufficient working space for menus, transaction information, operating controls, and other application interfaces without requiring a larger commercial display. For procurement teams, the key advantage is the ability to evaluate a familiar 15-inch format against existing equipment dimensions and software requirements, helping reduce unnecessary changes to the surrounding product structure.

The 10-point capacitive touch interface allows the screen to become part of the equipment's operating workflow rather than functioning only as an information display. Users can interact directly with ordering menus, POS interfaces, industrial controls, or other compatible applications. The listed 5ms touch response and more than 1,000,000 touch validity provide defined technical references when comparing touch monitor options for repeated commercial use. USB or RS232 touch connectivity gives integrators a choice when matching the monitor with an existing host system. For buyers, this means the display can be assessed not only by image specifications, but also by how easily touch operation can be incorporated into the finished equipment.

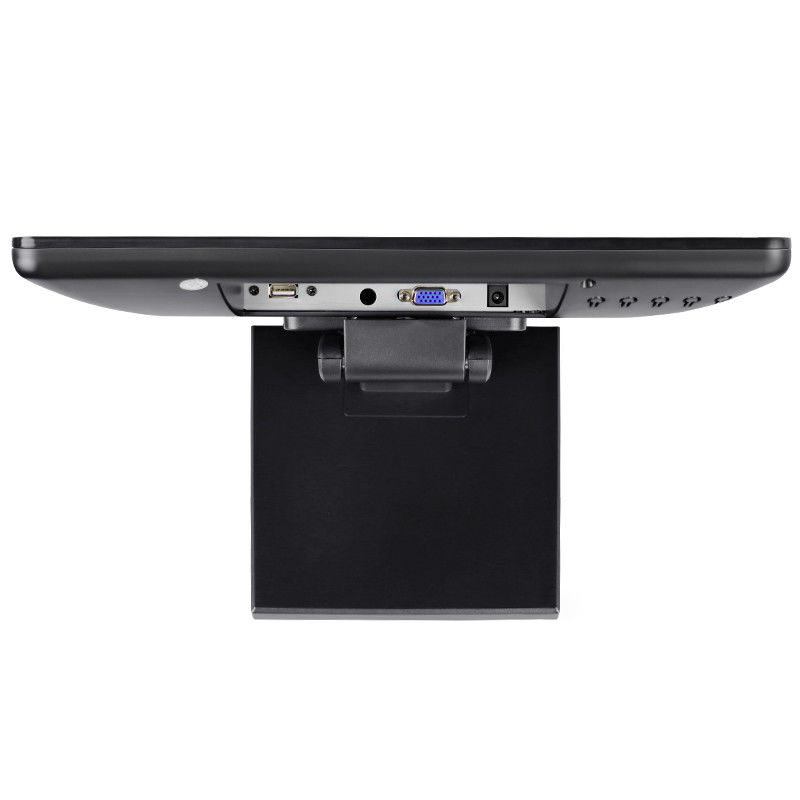

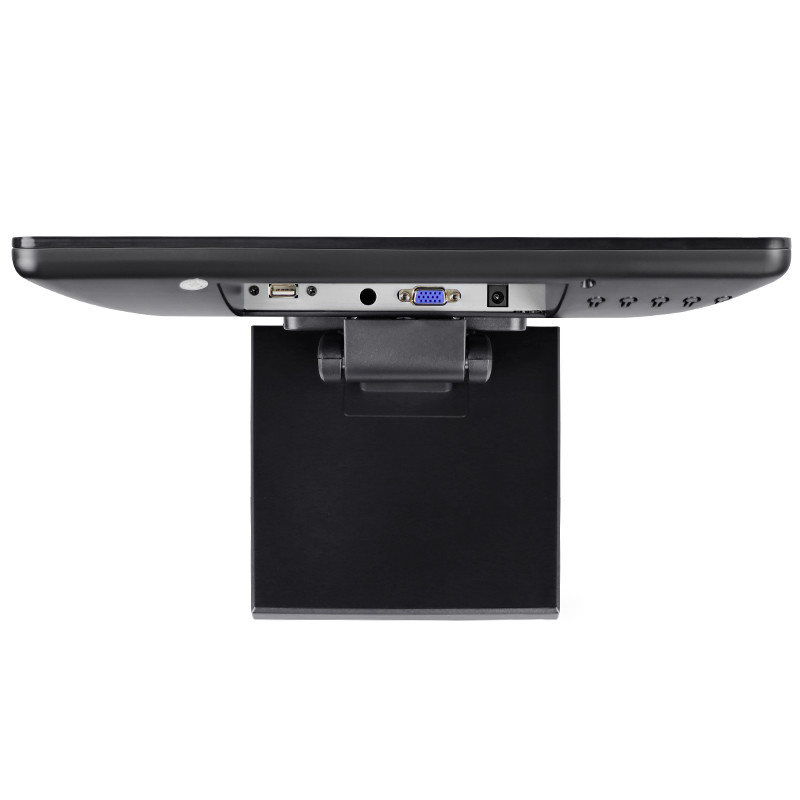

The monitor provides VGA and HDMI video interfaces, while USB or RS232 can be used for touch communication. DVI is also listed as an optional interface. This combination gives procurement and engineering teams more flexibility when matching the monitor with existing computers, controllers, POS hardware, or industrial systems. Instead of selecting a display first and redesigning the host equipment afterward, buyers can compare the available connection options against their current architecture. For projects involving multiple equipment models, interface flexibility can also make it easier to determine whether one monitor platform can be reused across different configurations. The final interface combination can be confirmed according to the project requirements.

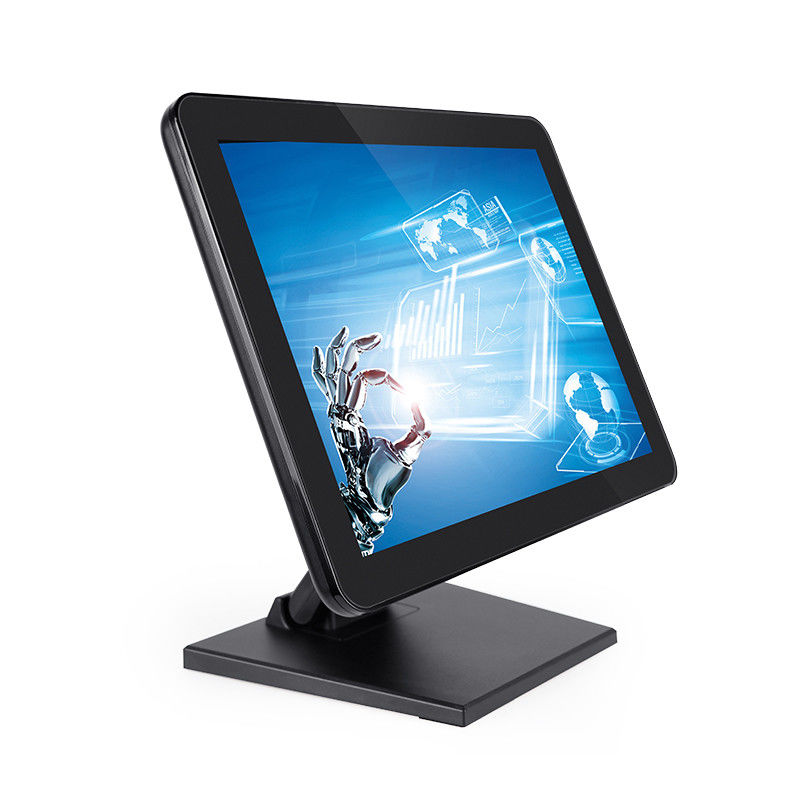

The pure flat screen, toughened glass panel, and black plastic case give the 1503M a straightforward form for integration into commercial equipment. A flat front surface is particularly suitable where the display needs to sit within or alongside the front structure of a terminal rather than appear as a conventional desktop monitor. This can simplify the visual integration of the display into POS, ordering, industrial, and other equipment designs. The toughened glass panel also provides a defined front-panel construction for touch applications. For OEM buyers, the physical structure can be evaluated together with the planned enclosure, mounting position, user access, and front-panel design before confirming the final configuration.

The source lists POS, ATM, industrial, ordering, desktop, indoor, wall mounting, and car as application categories. These applications represent different purchasing requirements, but they share the need for a display that can be integrated into a larger equipment system. A POS manufacturer may need a compact customer or operator interface, while an ordering equipment manufacturer may require direct menu selection. Industrial equipment may use the monitor as an operator interface, while other projects may require desktop or wall-mounted deployment. For distributors and system integrators, this application range also provides an opportunity to evaluate the same 15-inch platform across multiple project types rather than sourcing a completely different display for every application.

The 1503M provides 350 cd/m² brightness, 16.2M colors, 1000:1 contrast ratio, 5ms response time, and 160° horizontal / 140° vertical viewing angles. These specifications give procurement teams a clear technical baseline when comparing the monitor with alternative 15-inch touch displays. The 1024*768 resolution is consistently identified in the supplied product information, making it suitable for projects built around this display format. The source also lists a 50,000-hour duration, although testing conditions are not specified. Rather than treating this figure as a guaranteed service-life statement, buyers can use it as a reference point during supplier evaluation and request additional technical confirmation when the project requires specific reliability documentation.
