HD 1280×800 IPS Display 10.1 Inch Touch Screen Monitor 300cd/M2

Hopestar 10.1" LCD Touch Screen Monitor HD 1280*800 IPS in Metal Case

Product Overview

The Hopestar 10.1" LCD Touch Screen Monitor offers a high-definition visual experience with its 1280x800 IPS panel, encased in a durable metal frame. Designed for versatility, it serves as an ideal solution for various applications including CCTV security, PC monitoring, and indoor display systems. Its robust construction and advanced features ensure reliable performance in demanding industrial and commercial environments.

Key Features

• 【Visual Enjoyment】: The stunning 10.1 IPS display screen with 1280*800 resolution delivers excellent detail, making it perfect used as CCTV security monitor, PC monitor or indoor monitor use. What's more, you can use the screen as mini size TV screen,photo scanner.
• 【Extensive Connectivity】: The TOGUARD IPS display provides a rich set of video input options – including one AV port, one VGA port,and one HDMI port (1080P), so you can easily power and extend the enjoyment from different video sources on a Full HD display.With touch function, you can stylus pen to control the screen. The monitor screen suits for various operating systems for touching
• 【Astounding Contrast Ratio】: The 1000:1 contrast ratio radiates the clear color image, giving you a crystal-clear viewing experience of all your content.
• 【Energy Efficient】: Environmentally friendly, the TOGUARD IPS monitor is designed to meet Energy Star standards. Automatic sleep function reducing energy costs and conserving energy.
• 【Two Way Installation】: This TFT monitor support two way installation, it can be easily mounted on the wall with the industry standard VESA 75 mount ( not include ), Or mounted on desktop by provided adjustable mount stand , perfect for home use.

Technical Specifications

Product Highlights

IPS Display Delivers Clear Visual Performance from Multiple Viewing Angles

The monitor features a 10.1-inch IPS LCD panel with a resolution of 1280 * 800, producing sharp graphics and clear interface elements for industrial control panels, embedded terminals, and interactive displays. With 300 cd/m² brightness, 16.7 million display colors, and a fast 5 ms response time, the screen delivers smooth image performance for everyday commercial operation. The 178° horizontal and vertical viewing angles help maintain image consistency from different positions, making the display suitable for environments where operators frequently interact with equipment from varying directions.

Accurate 10-Point Capacitive Touch for Responsive User Interaction

A standard 10-point capacitive touch screen enables intuitive multi-touch operation, allowing users to perform navigation, control, and data input with high responsiveness. The supplied touch driver simplifies integration into supported systems, reducing deployment time during equipment development. For projects requiring different interaction methods, the monitor also supports optional resistive, surface acoustic wave (SAW), and infrared touch technologies. This flexibility allows manufacturers to select the touch solution that best matches their application requirements without changing the overall display platform.

Multiple Interface Options Simplify Embedded System Integration

The monitor supports both modern and legacy industrial equipment through a versatile interface configuration. HDMI and VGA inputs provide compatibility with a wide range of video sources, while an optional DVI interface offers additional flexibility for specialized deployments. Touch communication is supported through USB as standard, with optional RS232 available for industrial control systems requiring serial communication. This combination of display and touch interfaces helps simplify integration into embedded devices, industrial controllers, automation equipment, and customized commercial terminals.

Designed for Long-Term Commercial Reliability

Commercial display equipment is expected to operate consistently over extended periods, and this monitor is built with long-term reliability in mind. The display is rated for a service life of up to 50,000 hours, while the capacitive touch system supports more than one million touch operations, helping maintain stable interaction throughout continuous use. The combination of durable touch technology and dependable display performance makes the monitor suitable for equipment that requires reliable daily operation with minimal maintenance.

OEM Display Solution for Customized Equipment Development

In addition to its hardware capabilities, the monitor supports OEM logo and packaging customization, allowing manufacturers to integrate the display into branded commercial products and private-label solutions. The compact design, flexible interface options, and multiple touch technology configurations provide a practical foundation for customized equipment development while reducing engineering complexity. Whether used in embedded control systems, industrial HMI projects, or interactive commercial devices, the platform offers a reliable display solution that can adapt to evolving product requirements and long-term deployment plans.

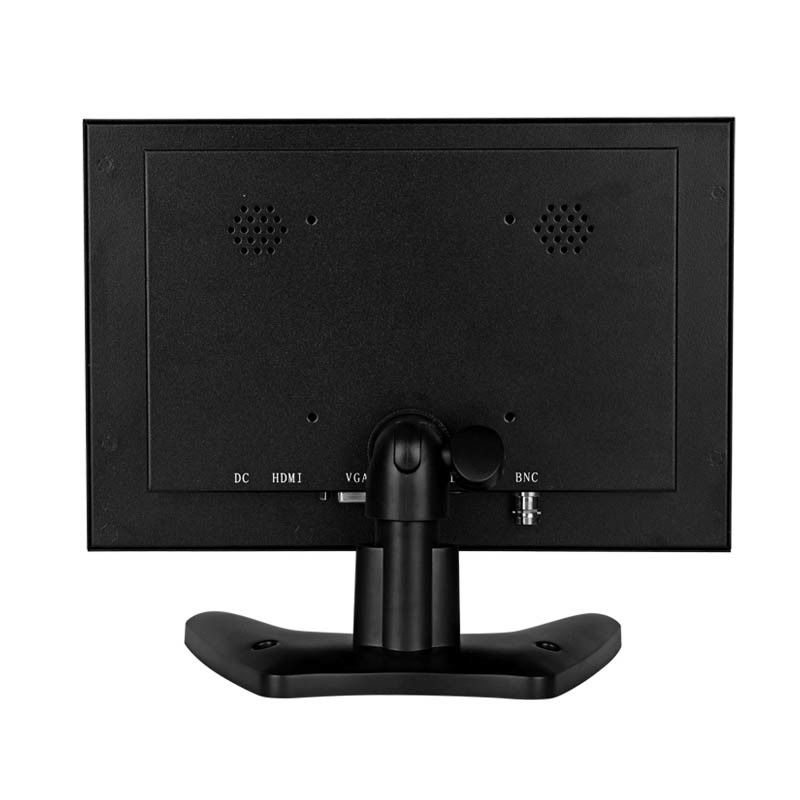

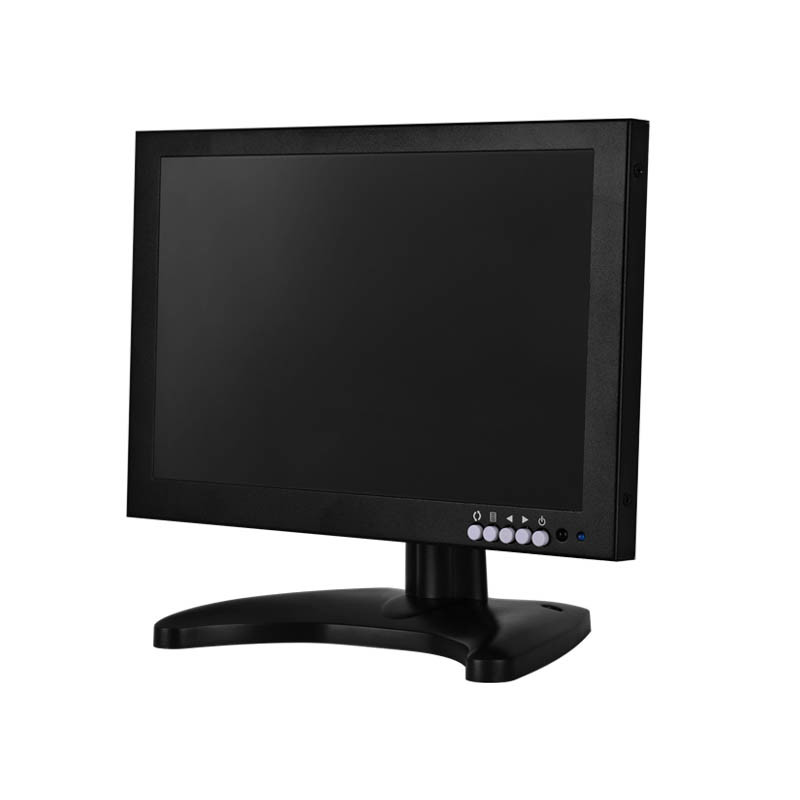

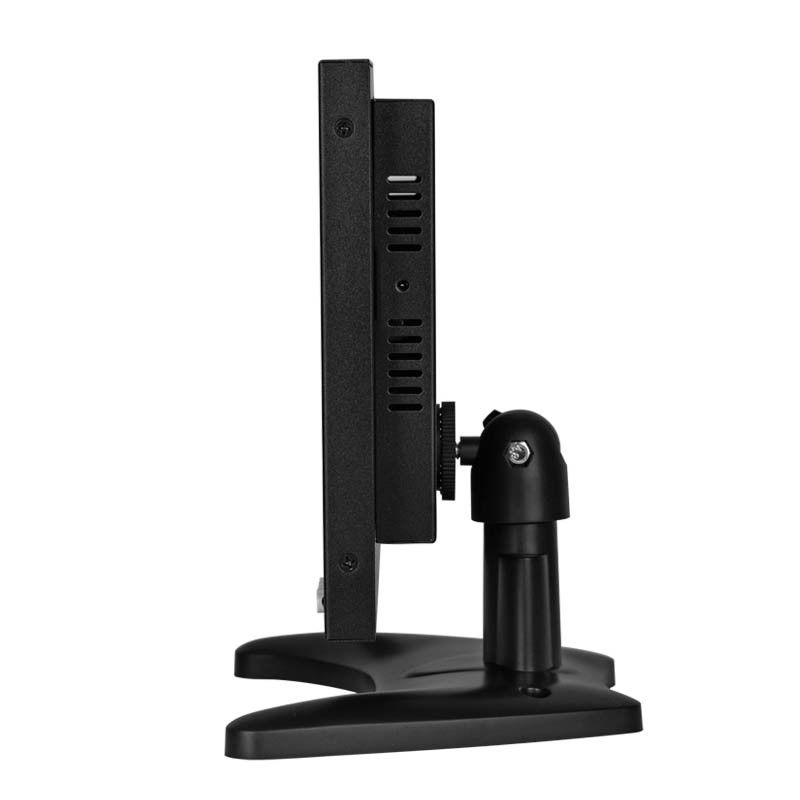

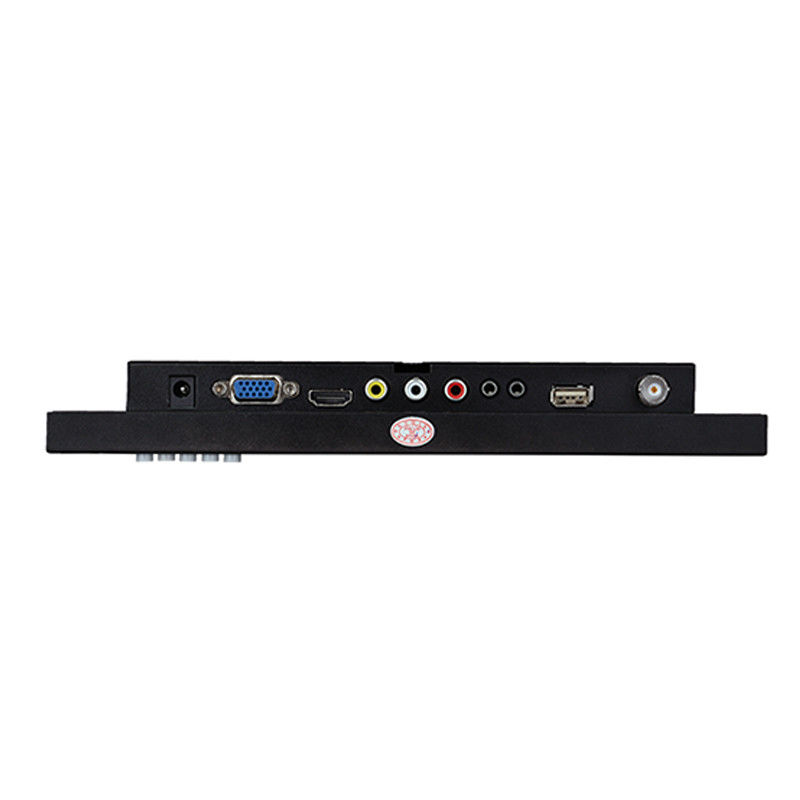

Detailed photos:
