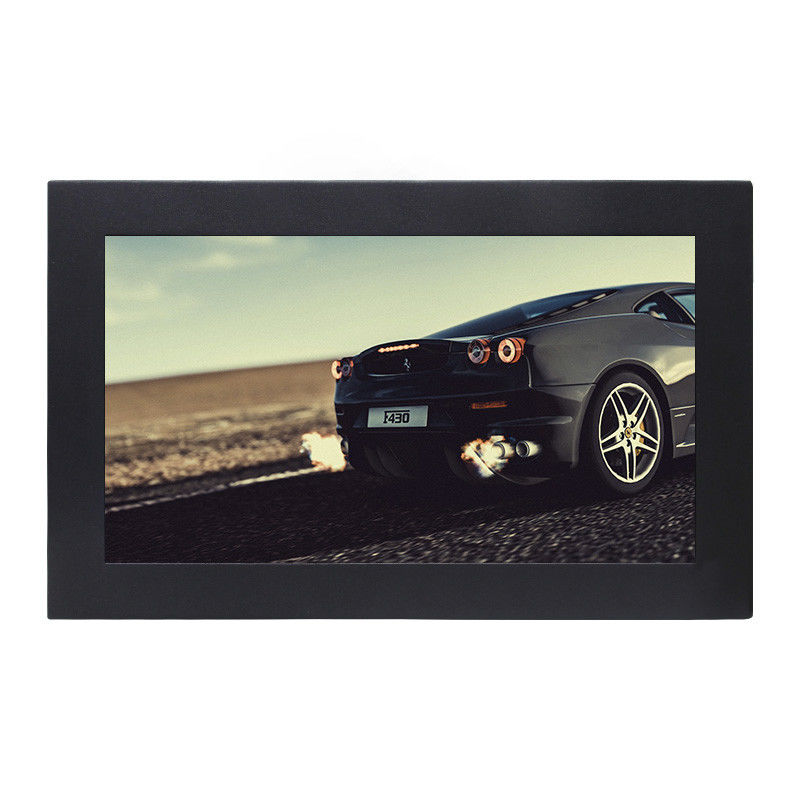

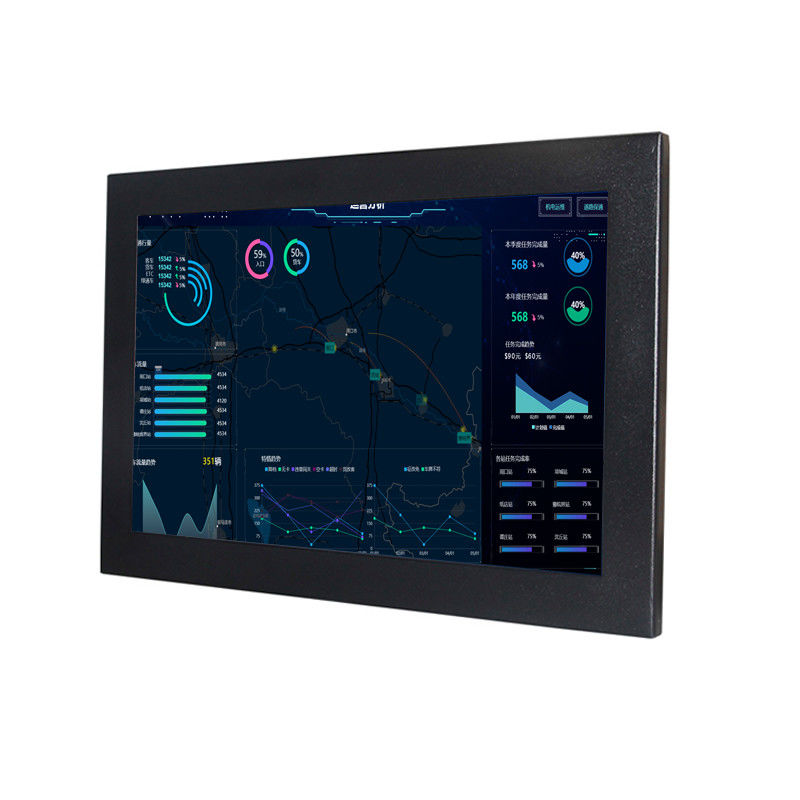

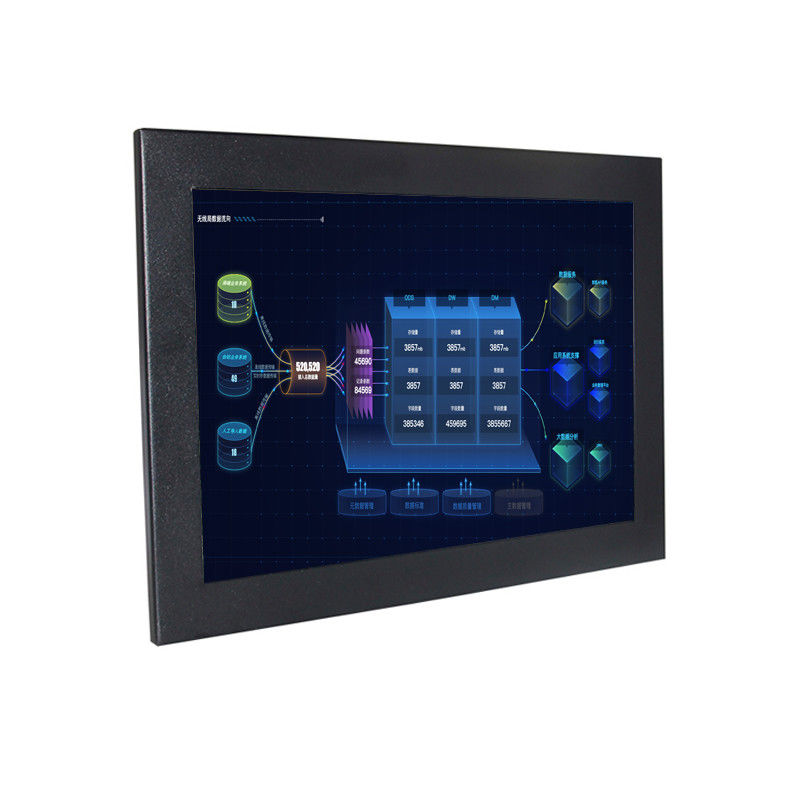

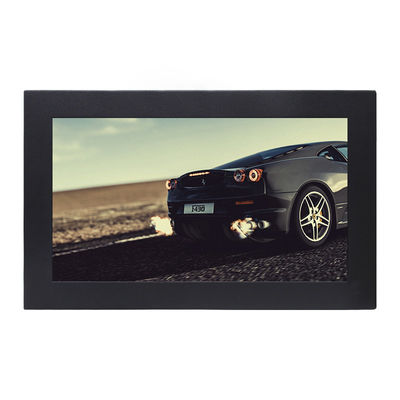

Full HD IPS 15.6inch Open Frame Touch Screen Monitor 350cd/m2 PCAP Display

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Hopestar
Certification: CE FCC Rohs
Model Number: HOP156
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price can be negotiable
Packaging Details: 59x10x27cm
Delivery Time: 5~7 days
Payment Terms: T/T, L/C
Supply Ability: 50000 pcs/month
Specifications Product Description Request A Quote
Specifications
Specifications
Screen Size: 15.6 Inch IPS
Color: Black
Resolution: 1920x1080
Interface Type: VGA HDMI USB DC
Type: Capacitive
Brightness: 350cd/m2 (1000cd/m2, Optional)
Installation: Embeded, Wall Mount
Warranty: 3 Years
High Light:

15.6inch Open Frame Touch Screen Monitor

,

Open Frame Touch Screen Monitor 350cd/M2

,

15.6 inch touch screen monitor 350cd/M2

Product Description
  • Full HD 1080p (1920x1080) 16:9 LED Touch Screen Monitor with HDMI, VGA Inputs
  • With a robust, scratch resistant 10-point multi-touch Full HD 1080p touchscreen, versatile connections, and frameless-design, it is ideal for use in retail, education, or enterprise
  • Freestanding slim bezel tablet design with muted black finish, stable adjustable stand, and 7H scratch resistant surface
  • 50M:1 Dynamic Contrast Ratio; 178/178 Degree Viewing Angles
  • 3-year Limited Warranty; Energy Star Certified; Package Content: Touch Monitor, Power Cable, Power Adapter, HDMI Cable, USB Cable,Quick Start Guide
  • Compatible with Windows; Linux; Raspberry Pi; Android etc



General
Series Open frame
LCD Type 15.6" IPS panel
Video Input VGA and HDMI
OSD controls Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Supply Type: DC 12V
Input (line) voltage: 100-240 VAC, 50-60 Hz
Output voltage/current: 12v, 4A

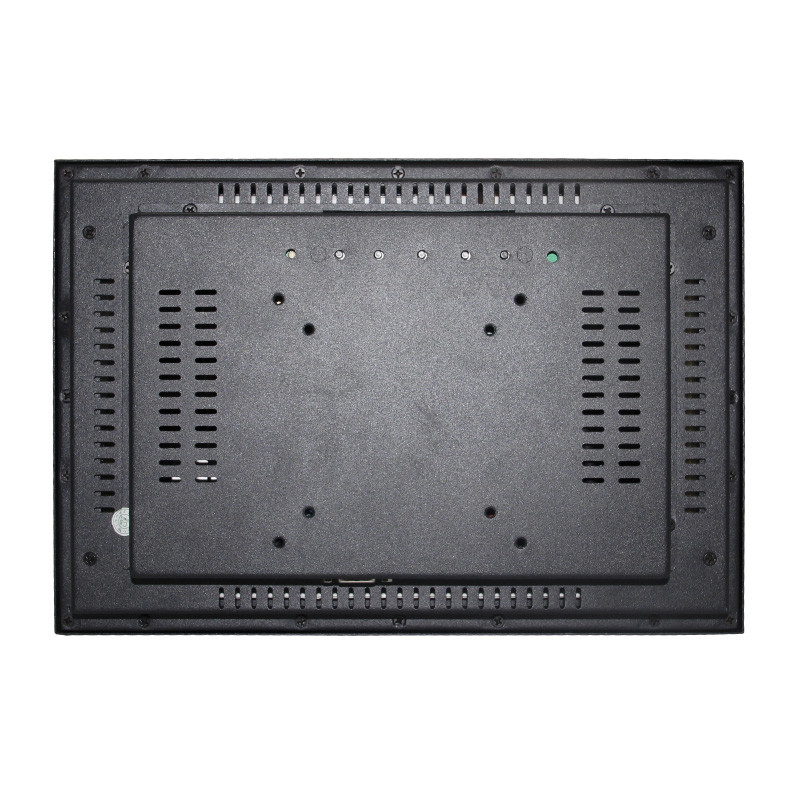

Mount Interface 1)VESA 75mm and 100mm
2)2)Mount bracket, horizontal or vertical





LCD Specification
Active Area(mm) 344.2×193.5(mm2)
Resolution 1920x1080
Dot Pitch(mm) 0.3075×0.3075
Nominal Input Voltage VDD +3.3V(Typ)
Viewing angle (v/h) 178°/178°
Contrast 1500:1
Luminance(cd/m2) 300, 1000cd/m2 optional
Response Time 5ms
Support Color 16.7M colors
Backlight MTBF(hr) 80000





Touchscreen Specification
Type PCAP capacitive touchscreen
Resolution 4-wires/5-wires touch screen, IR etc optional
Light Transmission 97%
Touch Life Cycle 50 millions
Touch Response time 2ms
Touch System Interface USB interface
Power consumption +5V@80mA



Full HD IPS 15.6inch Open Frame Touch Screen Monitor 350cd/m2 PCAP Display 0Full HD IPS 15.6inch Open Frame Touch Screen Monitor 350cd/m2 PCAP Display 1Full HD IPS 15.6inch Open Frame Touch Screen Monitor 350cd/m2 PCAP Display 2
