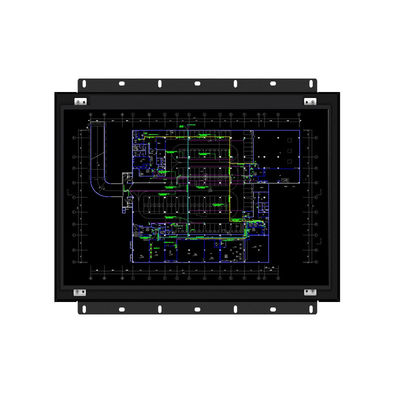

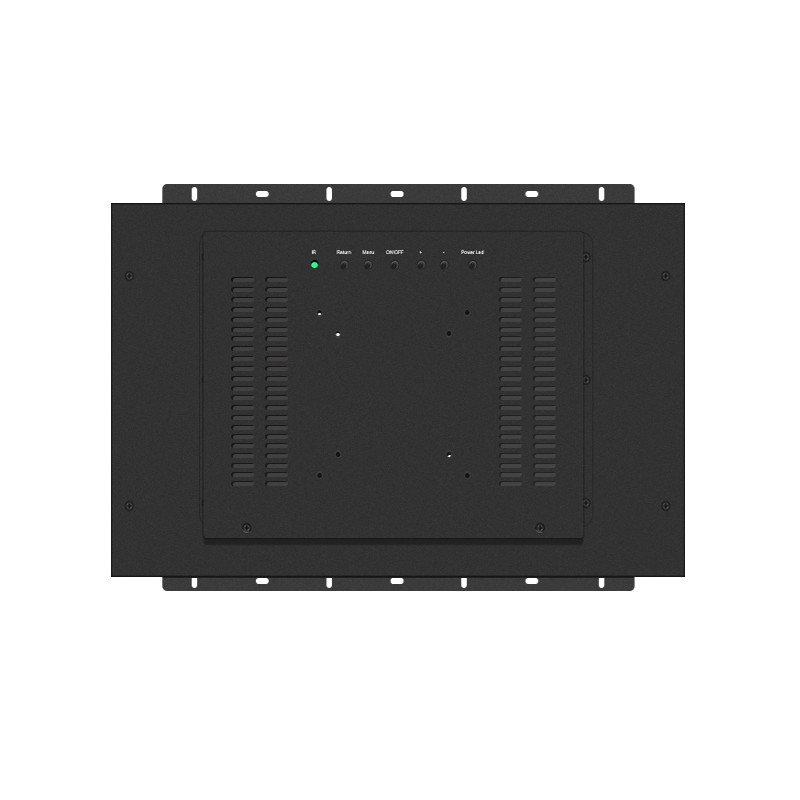

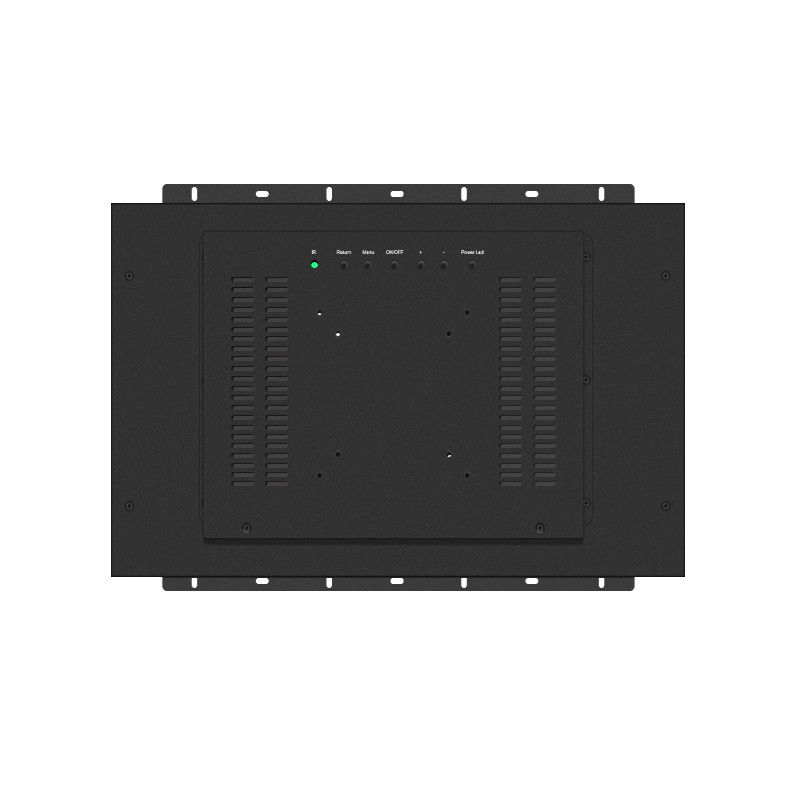

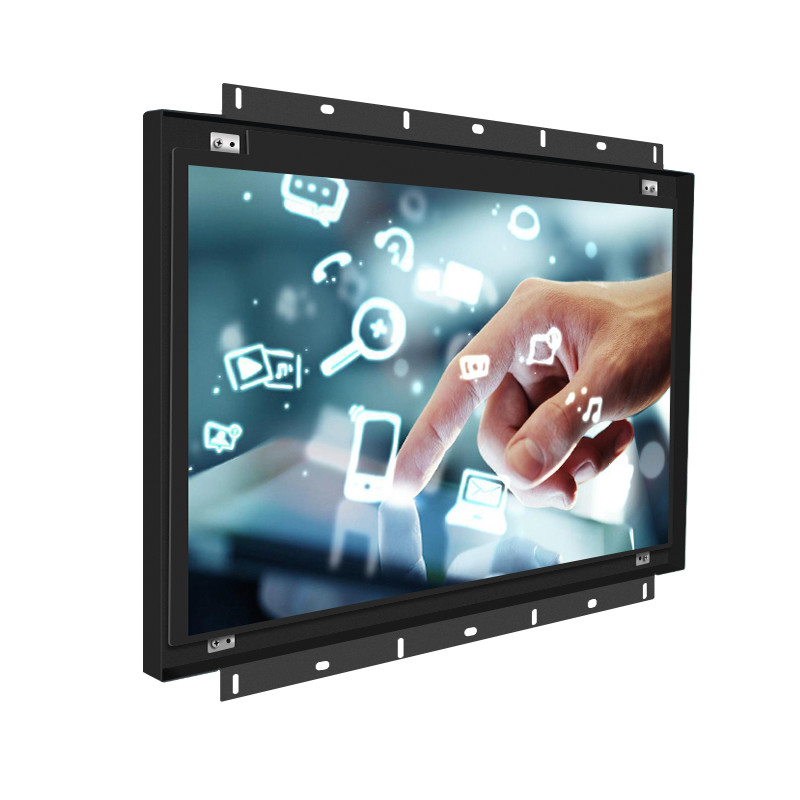

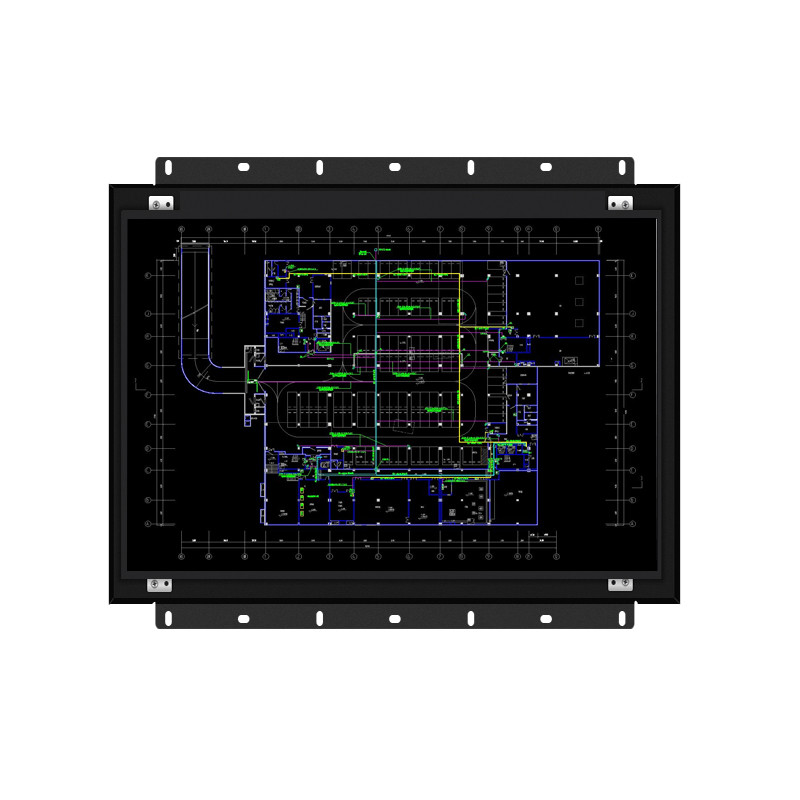

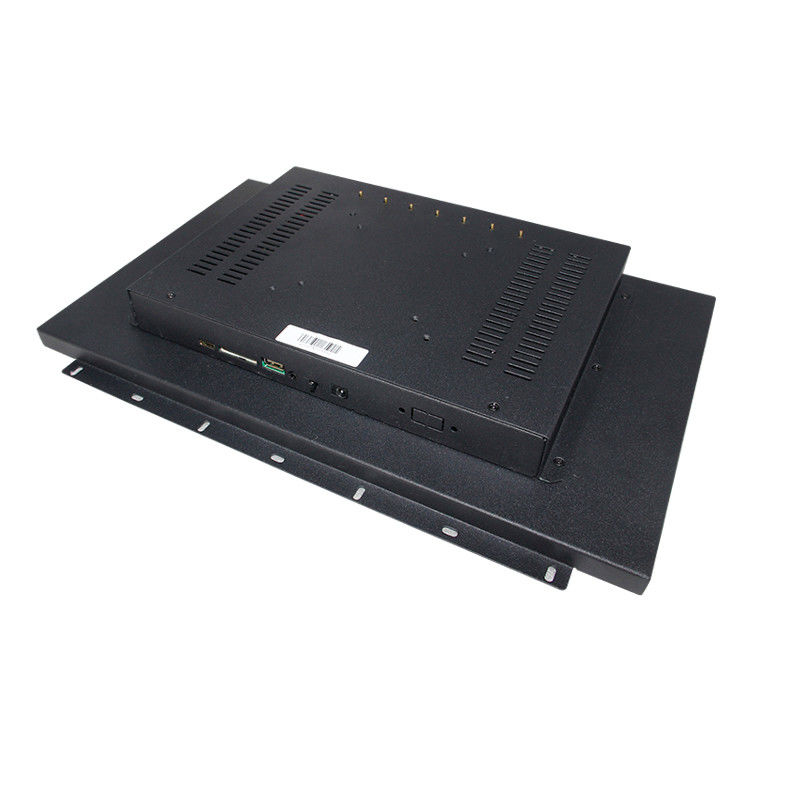

Kiosk 15inch DC12v Open Frame Touch Screen Monitor VGA HDMI USB
Place of Origin:Shenzhen, China
Brand Name:OEM or Hopestar
Certification:CE,ROHS, FCC,ISO9001,KC,CCC
Model Number:HOP151
Minimum Order Quantity:100PCS
Price:Price can be negotiable
Payment Terms:T/T, L/C
Supply Ability:50000 pcs/month
Product Details
Highlight:
15inch DC12v Open Frame Touch Screen Monitor
,Kiosk DC12v Open Frame Touch Screen Monitor
,DC12v 15 inch touch screen monitor
Screen Size:
15 Inch
Color:
Black
Resolution:
1024x768
Interface Type:
VGA HDMI USB DC
Type:
Resistive Touch, 4-wires, 5-wires, Capacitive
Brightness:
350cd/m2 (1000cd/m2, Optional)
Installation:
Embeded, Wall Mount
Warranty:
3 Years
Product Description
Product Features
- TOUCH READY - touch solution adopts the resistive touchscreen and the latest projected capacitive solution with (G+G) 10-point touch available ,it delivers great optical clarity and touch durability. 3mm thickness tempered cover glass provide front IK08 vandal-proof degree .
- FEATUREED ELMENTS -The touch screen is sealed to prevent the bad influence from dirt, dust and liquid , can meet the front IP65 water-resistant requirement.
- RICH INTERFACES - Coming with HDMI , VGA and Audio interfaces to meet different needs of various professional display application.
- Various choices of surface treatments available, anti-Newton, -glare, special chemical strengthen hard coating,anti-reflection; Capable of handing spacer dots diameter is less than 0.035mm; Has our own factories,so our price is competitive; Excellent sales service; Applications: Light industry; Home appliances; Portable sport devices; Access control terminals; Portable medical devices
General Specifications
| General | |||||
| Series | Open frame | ||||
| LCD Type | 15” TFT-LCD | ||||
| Video Input | VGA and HDMI | ||||
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | ||||
| Power Supply | Type: DC | ||||
| Input (line) voltage: 100-240 VAC, 50-60 Hz | |||||
| Output voltage/current: 12v, 3A | |||||
| Mount Interface | 1)VESA 75mm and 100mm | ||||
| 2)2)Mount bracket, horizontal or vertical | |||||
LCD Specification
| LCD Specification | |||||
| Active Area(mm) | 246.0(H)×184.5(V) | ||||
| Resolution | 1024*768 | ||||
| Dot Pitch(mm) | 0.3075×0.3075 | ||||
| Nominal Input Voltage VDD | +3.3V(Typ) | ||||
| Viewing angle (v/h) | 176°/170° | ||||
| Contrast | 1000:1 | ||||
| Luminance(cd/m2) | 300, 1000cd/m2 optional | ||||
| Response Time | 5ms | ||||
| Support Color | 16.7M colors | ||||
| Backlight MTBF(hr) | 80000 | ||||
Touchscreen Specification
| Touchscreen Specification | |||||
| Type | Resistive touch screen | ||||
| Resolution | 4-wires/5-wires touch screen, capacitive touchscreen | ||||
| Light Transmission | 97% | ||||
| Touch Life Cycle | 50 millions | ||||
| Touch Response time | 2ms | ||||
| Touch System Interface | USB interface | ||||
| Power consumption | +5V@80mA | ||||
