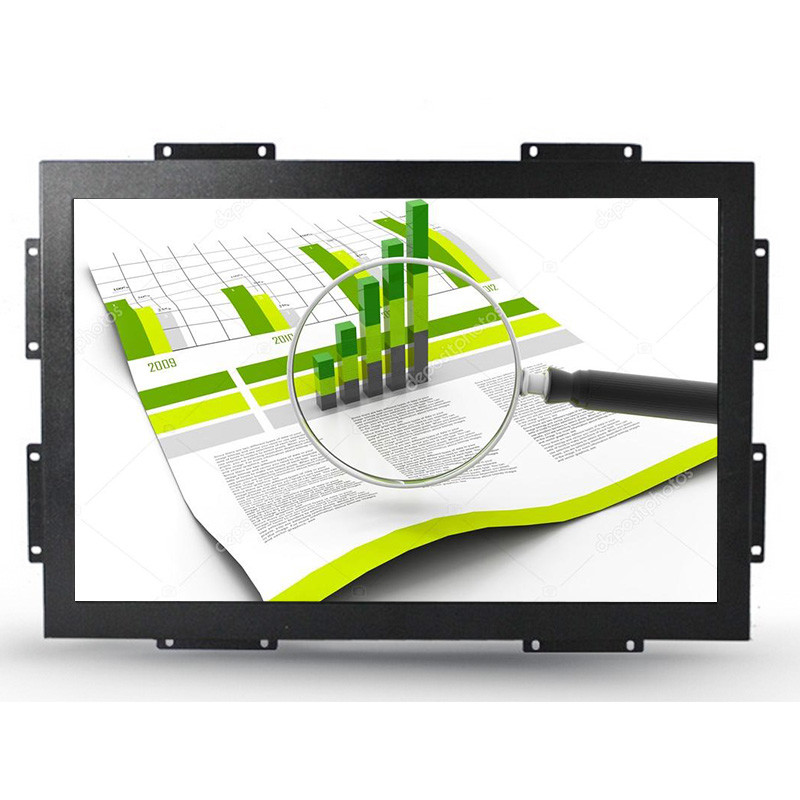

350nits 32 Inch Open Frame Touch Monitor / capacitive touch screen monitor

Product Details:
Place of Origin: Guangdong,China
Brand Name: OEM or CNHOPESTAR
Certification: CE&FCC&Rohs
Model Number: HOP215WPC-8
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: usd 315-319 /pcs
Packaging Details: 59x10x27cm
Delivery Time: 2-8 working days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 50000 pcs/month
Specifications Product Description Request A Quote
Specifications
Specifications
Screen Size: 32 Inch
Color: Black
Interface Type: VGA And HDMI, RS232- Optional
Type: IR Touch , Capacitive Touch
Brightness: 350cd/m2 (1000cd/m2, Optional)
Installation: Kiosk, Embeded, Wall Mount
3M: Support
Material: Metal
Name: Touch Screen Monitor
Aplication: Pos
High Light:

350nits 32 Inch Open Frame Touch Monitor

,

350nits Capacitive Touch Screen Monitor

,

350nits 32 inch touch screen monitor

Product Description

PC Open Frame monitor hdmi USB Open Frame Touch Screen Monitor





    • Lilliput 32 inch Industrial Touch Screen Monitor Open Frame
    • 32" LED display panel with 1920*1080 native resolution
    • Application: - KIOSK / POS machine - Transportation machine
    • High contrast: 1500:1, High brightness: 300cd/m²
    • Viewing angle: 178° / 178° (H/V)
    •
    • Faceplate surface: anti-glare coating and glare coating; Film thickness: 0.175 and 0.188mm; Glass thickness: 0.7, 1.1 and 1.8mm; Operation pressure: 20 to 150g; Storage temperature: -30 to 80¡ãC;Message noise: 5 to 15m/second; Operating current: 5 to 25mA; Humidity: <95%; Isolation resistance: 20M¦¸¡ü, 25V DC;Sealable against dust, water, oil and static; Advantages: Products insulation point is ¦µ0.03mm
    •
    • Various choices of surface treatments available, special chemical strengthen hard coating,anti-reflection; Has our own factories,so our price is competitive; Excellent sales service; Applications: Light industry; Home appliances; Portable sport devices; Access control terminals; Portable medical devices , anti-Newton,
    •
    • Different size optioanl from 10.4 inch to 32 inch
Specification
Display Specifications
Characteristic Value Comment
LCD Size/Type 32”TFT-LCD
Aspect Ratio 16:9
Active Area Horizontal 473.5mm
Vertical 297.4 mm
Pixel Horizontal 0.24825
Vertical 0.24825
Panel Resolution 1920*1080 Native
Display Color 16.7 Million 6-bits + Hi-FRC
Contrast Ratio 1000:1 Typical
Brightness 350nits Typical
Response Time 5 ms Typical
Viewing Angle Horizontal 178 Typical
Vertical 178
Video Signal Input VGA and DVI , HDMI - optional
Electrical Specifications
Power Supply DC 12V 4A Power Adapter Included
100-240 VAC, 50-60 Hz Plug Input
Power Consumption Operating 38 W Typical
Sleep 3 W
Off 1 W
Touch Screen Specifications
Touch Technology Project Capacitive Touch Screen 10 Touch Point
Touch Interface USB (Type B)
OS Supported Plug and Play Windows All (HID) ,Linux (HID) (Android Option)
Driver Driver Offered
Environmental Specifications
Condition Specification
Temperature Operating -10°C ~+ 50°C
Storage -20°C ~ +70°C
Humidity Operating 20% ~ 80%
Storage 10% ~ 90%
MTBF 30000 Hrs at 25°C





350nits 32 Inch Open Frame Touch Monitor / capacitive touch screen monitor 0



Touchscreen Specification
Type IR Touch screen
Resolution 4-wires/5-wires touch screen
Light Transmission 92%
Touch Life Cycle 50 millions
Touch Response time 2ms
Touch System Interface USB/RS232 interface
Power consumption +5V@80mA





350nits 32 Inch Open Frame Touch Monitor / capacitive touch screen monitor 1

350nits 32 Inch Open Frame Touch Monitor / capacitive touch screen monitor 2

350nits 32 Inch Open Frame Touch Monitor / capacitive touch screen monitor 3
