10 Points Capacitive 0.297mm LCD Touch Screen Monitor USB SD Port

Product Details:
Place of Origin: Guangdong,China
Certification: CE&FCC
Model Number: Y156T-IPS
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pieces
Price: usd 106-112 usd /pcs
Packaging Details: 47x20x40cm
Delivery Time: 2-8 working days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 50000 pcs/month
Specifications Product Description Request A Quote
Screen Size: 15.6
Color: Black
Resolution: 1920*1080
Interface Type: VGA, HDMI, USB
Type: Capactitive Touch, 4-wires, 5-wires Touch Optional
Brightness: 350cd/m2
Driver: Package Will Come With Touch Driver
Warranty: 2 Years
Products Status: Stock
Response Time: 5ms
Application: Desktop,indoor,wall Mounting,Car / POS /ATM/ Industrial,ordering
Pixel Pitch: 0.297mm
Material: Metal Case + Toughened Glass Panel
Touch Points: 10 Points
Interface: USB
High Light:

10 Points Capacitive LCD Touch Screen Monitor


0.297mm LCD Touch Screen Monitor


0.297mm capacitive touch screen monitor

Product Description

15.6 inch 10 point capactitive LCD Touch Screen Monitor USB SD port


  • 15.6" 1366x768 16: 9 touch monitor with 75x75mm VESA mounting
  • Flexible connectivity with HDMI and VGA. Compliance and standards- energy Star, bema, cob, CE, C-TICK, EPEAT (silver) by region, Earp, j-moss, kick, PSB, RoHS, TCO6.0, tub-ergo, tugs, , Vici, WEEE, WHQL (Windows 10, Windows 8.1, Windows 7), Mbps, RCM, TUV flicker-free, KC, standby, TUV low Blue light, cu(each)
  • 10-Point touch capacity for virtual keyboards and multi-touch applications


  • Hook up (connect to) desktop or laptop computer by 15 pins VGA port directly.
  • Drivers support Windows NT, 2000, XP, Vista, Windows 7 / 8 / 8.1 / 10
  • Durable Touch Screen with foldable Metal POS base, designed for Day to Day high traffic POS environment
  • Touch Screen USB interface with USB connection for touch control
  • Drivers on convenient USB flash drive, easy to carry and install on any computer without CD

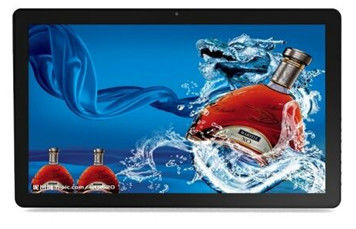

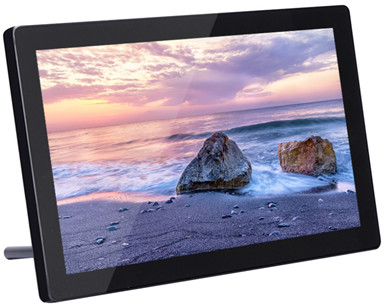

10 Points Capacitive 0.297mm LCD Touch Screen Monitor USB SD Port 0

Display Screen 15.6 inch IPS screen
Resolution 1920×1080
Brightness 350 cdm2
Contrast 1000:1
Display area 343×192 mm
Screen scale 16:9
Configuration Master chip Mstar V56
Memory Optional
Interface SD card slot One ( max support 32GB )
HDMI One ( MINI HDMI input )
AV One ( AV input )
USB 2.0 One ( Touch screen connect )
USB 2.0 One (U disk)
Power One (5.5×2.1 mm ) DC power input
Multi-Media Audio MP3
Video RM/RMVB/AVI/MPG/MPEG/FLV/VOB/MP4/MKV etc. ( Max 1920x1080-30MBps )
Picture JPEG
Other functions Remote control Full function remote control
Time Calendar, clock
Power on / off Timing on and off
Key Body 7 buttons
Auto play Boot automatically cycle: video, pictures, music, pictures + Music (can be set in settings)
Picture playback adjustment Adjust picture play interval, picture switch transition effect
Other parameters Power consumption 12W
OSD language Multi OSD language
Speaker Built-in 2×2W speaker
Color selection White / Black
Attachment Adapter One, specifications: 12V/2A
Desktop Bracket One
Remote control One
User's Manual One
HDMI cable Optional
Theftproof cover plate One ( Prevents the inserted SD card or U disk from being stolen )

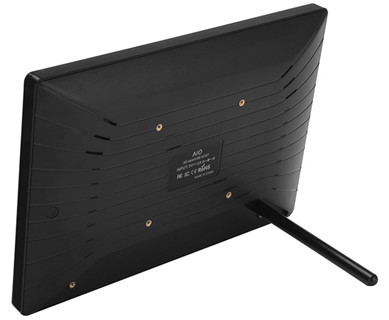

10 Points Capacitive 0.297mm LCD Touch Screen Monitor USB SD Port 1
