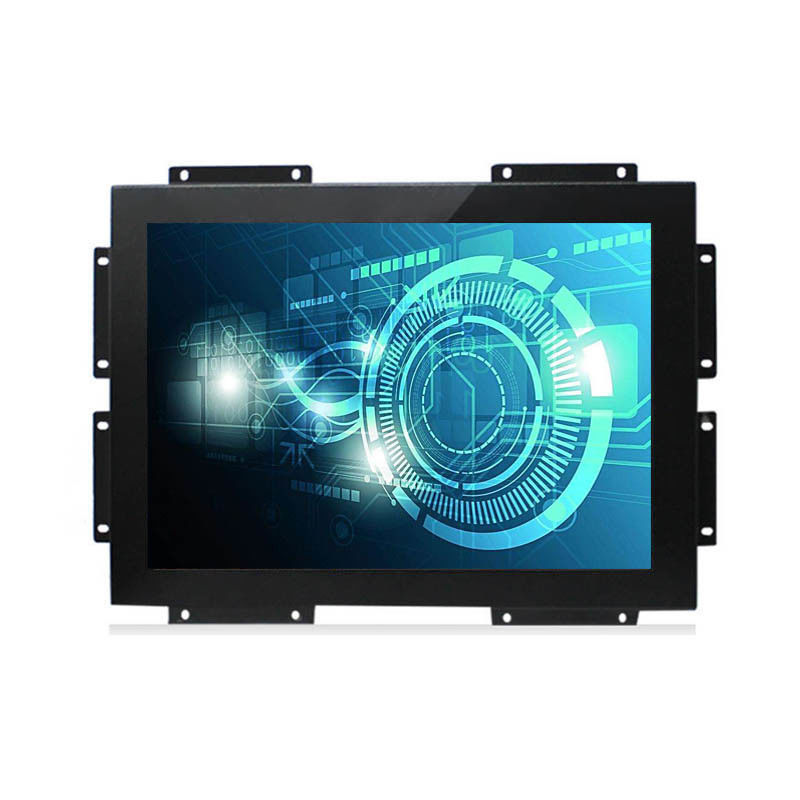

Embedded Open Frame Touch Monitor

Place of Origin:Guangdong,China
Brand Name:OEM or CNHOPESTAR
Certification:CE,ROHS, FCC,ISO9001,KC,CCC
Model Number:HOP170-8
Minimum Order Quantity:100PCS
Price:Price can be negotiable
Payment Terms:L/C, D/P, T/T, Western Union
Supply Ability:50000 pcs/month
Product Details
Highlight:

10.1 inch open frame touch monitor

,

IPS open frame touch screen

,

32 inch TFT LCD monitor
Screen Size: 10.1 12 15 15.6 17 19 21.5 24 32 Inch
Color: Black
Resolution: 1280x1024,1280*800,1920*1080,1440*900
Interface Type: VGA And DVI , HDMI, RS232- Optional
Type: Resistive Touch, Capative Optional
Brightness: 350cd/m2 (1000cd/m2, Optional)
Installation: Kiosk, Embeded, Wall Mount
Warranty: 3 Years
Case: Industrial Metal Frame,Open Frame
Product Description

Embedded Open Frame Touch Monitor 10.1 12 15 15.6 17 19 21.5 24 32 inch TFT LED LCD IPS Open Frame Touch Screen Monitor



  • Various choices of surface treatments available, anti-Newton, -glare, special chemical strengthen hard coating,anti-reflection; Capable of handing spacer dots diameter is less than 0.035mm; Has our own factories,so our price is competitive; Excellent sales service; Applications: Light industry; Home appliances; Portable sport devices; Access control terminals; Portable medical devices
  • 17 inch Usb Touch Screen lcd monitor for machine: USB control ,HDMI VGA input,DC 12V/4A input.17 TFT LED panel resalution:1024X768.brightness 800cd/m2,conrtast ratio 900:1,5 wire line touch screen panel,USB control;
  • Faceplate surface: anti-glare coating and glare coating; Film thickness: 0.175 and 0.188mm; Glass thickness: 0.7, 1.1 and 1.8mm; Operation pressure: 20 to 150g; Storage temperature: -30 to 80¡ãC;Message noise: 5 to 15m/second; Operating current: 5 to 25mA; Humidity: <95%; Isolation resistance: 20M¦¸¡ü, 25V DC;Sealable against dust, water, oil and static; Advantages: Products insulation point is ¦µ0.03mm



General
Series Water-proof and Open frame
LCD Type 10.1 12 15 15.6 17 19 21.5 24 32 ” TFT-LCD
Video Input VGA and DVI , HDMI - optional
OSD controls Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

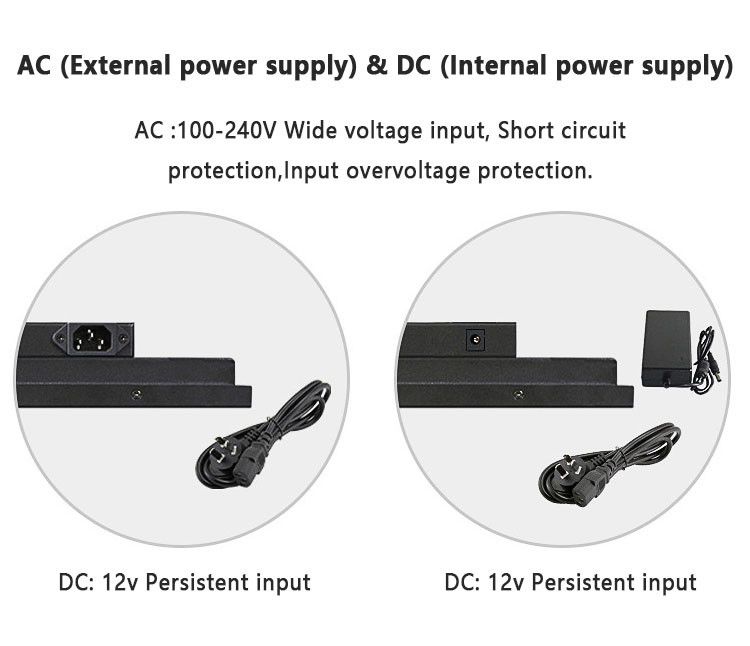

Power Supply Type: External brick
Input (line) voltage: 100-240 VAC, 50-60 Hz
Output voltage/current: 12 volts at 4 amps max
Mount Interface 1)VESA 75mm and 100mm
2)2)Mount bracket, horizontal or vertical





LCD Specification
Active Area(mm) 339.8(H)×272.5(V)
Resolution 1024*768,1920×1080,1280×1024,1440*900
Dot Pitch(mm) 0.3075×0.3075
Nominal Input Voltage VDD +3.3V(Typ)
Viewing angle (v/h) 60°/70°(CR>5)
Contrast 1000:1
Luminance(cd/m2) 350, 1000cd/m2 - optional
Response Time(Rising/Falling) 5ms/5ms
Support Color 16.2M colors
Backlight MTBF(hr) 50000





Touchscreen Specification
Type Resistive touch screen,Capacitive touch
Resolution 4-wires/5-wires touch screen
Light Transmission 92%
Touch Life Cycle 50 millions
Touch Response time 2ms
Touch System Interface USB interface
Power consumption +5V@80mA

Embedded Open Frame Touch Monitor 0Embedded Open Frame Touch Monitor 1

Embedded Open Frame Touch Monitor 2Embedded Open Frame Touch Monitor 3
