Display | |
Panel | 10.1"LCD panel |
Resolution | 1280x800 |
Display mode | Normally black |
Viewing angle | 85/85/85/85(L/R/U/D) |
Contrast ratio | 800 |
Luminance | 250cd/m2 |
Aspect Ratio | 16:10 |
Network | |
WiFi | 802.11b/g/n |
Ethernet | 100M/1000M ethernet |
Buletooth | Bluetooth 4.0 |
Interface | |
Card slot | SD card |
USB | USB 3.0 host |
Micro USB | Micro USB OTG |
USB | USB for serial(RS232 format) |
RJ45 | Ethernet interface ( POE function optional IEEE802.3at,POE+,class 4, 25.5W ) |
Power jack | DC power input |
Earphone | 3.5mm earphone + Microphone |
Media play | |
Video format | MPEG-1,MPEG-2,MPEG-4,H.265,H.264,VC-1,VP8,VP9, etc.,support up to 4K |
Audio format | MP3/WMA/AAC etc. |
Photo | jpeg |
Other | |
VESA | 75x75mm |
Micphone | yes |
Speaker | 2*2W |
LED Light bar | LED Light bar,RGB |
NFC | Optional ,NFC 13.56MHz,ISO14443A/ISO14443B/ISO 15693/Mifare classic/Sony felica |
Camera | Front camera 2.0M/P |
Working temp | 0--40degree |
Language | Multi-language |
Accessories | |
Adapter | Adapter,12V/1.5A |
User manual | yes |
Using RK3399 processor and Android operating system, it brings a smooth operation experience.
10.1-inch LCD screen, resolution of 1280x800, wide viewing angle (85/85/85/85°), clear picture quality, suitable for displaying meeting information.
Support NFC and POE functions to meet the needs of various scenarios.

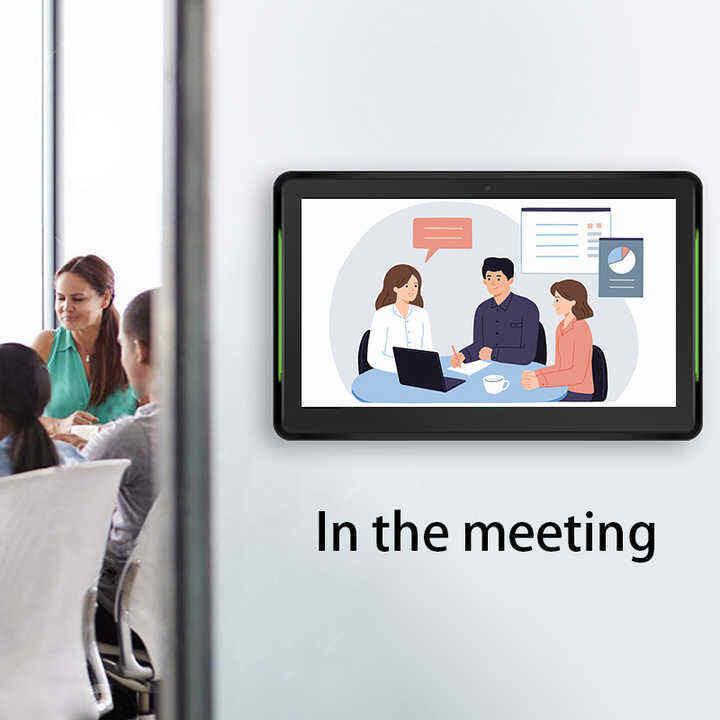

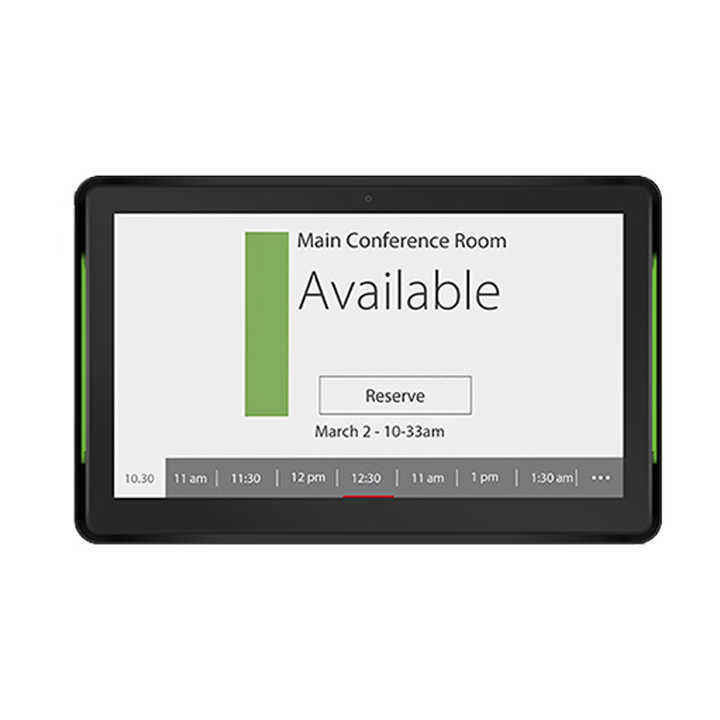

Equipped with LED light strips on both sides to help users quickly determine whether the meeting room is available.

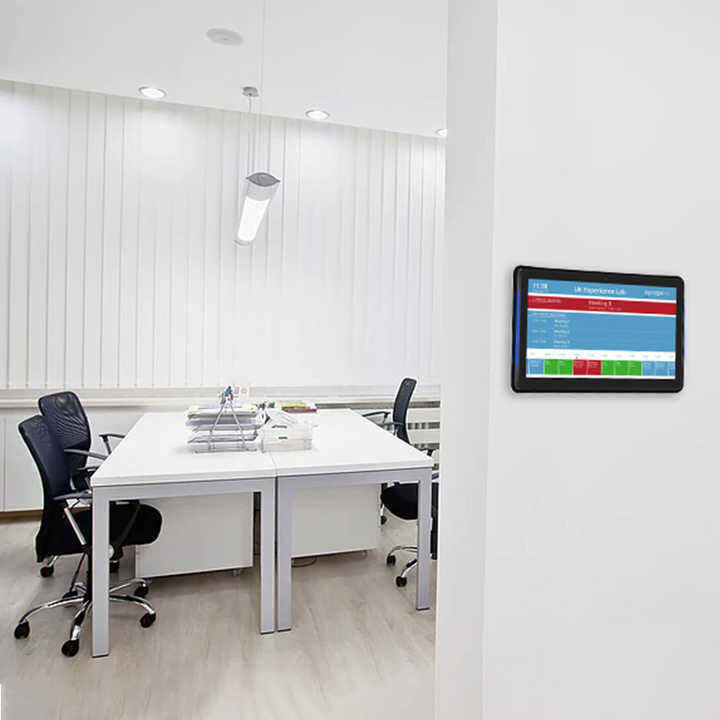

Support VESA installation, which is convenient for users to fix it on the wall or other brackets according to their needs.
Built-in front camera and microphone can support audio and video interaction or remote conferencing needs.
