Anti Newton 32 Inch Open Frame Touch Display IR Capacitive Touch For Kiosk

Product Details:
Place of Origin: Guangdong,China
Certification: CE&FCC&Rohs
Model Number: S32W
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price can be negotiable
Packaging Details: 59x10x27cm
Delivery Time: 2-8 working days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 50000 pcs/month
Specifications Product Description Request A Quote
Screen Size: 32 Inch
Color: Black
Interface Type: HDMI, Display Port
Type: IR Touch , Capacitive Touch
Brightness: 350cd/m2 (1000cd/m2, Optional)
Installation: Kiosk, Embeded, Wall Mount
3M: Support
Material: Metal
Name: Touch Screen Monitor
Aplication: Kiosk
High Light:

Anti Newton Open Frame Touch Display


Kiosk Open Frame Touch Display


IR Touch 32 Inch Open Frame Monitor

Product Description

32 Inch Open Frame Touch Display with HDMI and Display port for Kiosk​



    • Lilliput 32 inch Industrial Touch Screen Monitor Open Frame
    • 32" LED display panel with 1920*1080 native resolution
    • Application: - KIOSK / POS machine - Transportation machine
    • High contrast: 1500:1, High brightness: 300cd/m²
    • Viewing angle: 178° / 178° (H/V)
    • Various choices of surface treatments available, special chemical strengthen hard coating,anti-reflection; Has our own factories,so our price is competitive; Excellent sales service; Applications: Light industry; Home appliances; Portable sport devices; Access control terminals; Portable medical devices , anti-Newton,
    • Different size optioanl from 10.4 inch to 32 inch
Display Specifications
Characteristic Value Comment
LCD Size/Type 32”TFT-LCD
Aspect Ratio 16:9
Active Area Horizontal 473.5mm
Vertical 297.4 mm
Pixel Horizontal 0.24825
Vertical 0.24825
Panel Resolution 1920*1080 Native
Display Color 16.7 Million 6-bits + Hi-FRC
Contrast Ratio 1000:1 Typical
Brightness 350nits Typical
Response Time 5 ms Typical
Viewing Angle Horizontal 178 Typical
Vertical 178
Video Signal Input HDMI + Display Port
Electrical Specifications
Power Supply DC 12V 4A Power Adapter Included
100-240 VAC, 50-60 Hz Plug Input
Power Consumption Operating 38 W Typical
Sleep 3 W
Off 1 W
Touch Screen Specifications
Touch Technology Project Capacitive Touch Screen 10 Touch Point
Touch Interface USB (Type B)
OS Supported Plug and Play Windows All (HID) ,Linux (HID) (Android Option)
Driver Driver Offered
Environmental Specifications
Condition Specification
Temperature Operating -10°C ~+ 50°C
Storage -20°C ~ +70°C
Humidity Operating 20% ~ 80%
Storage 10% ~ 90%
MTBF 30000 Hrs at 25°C

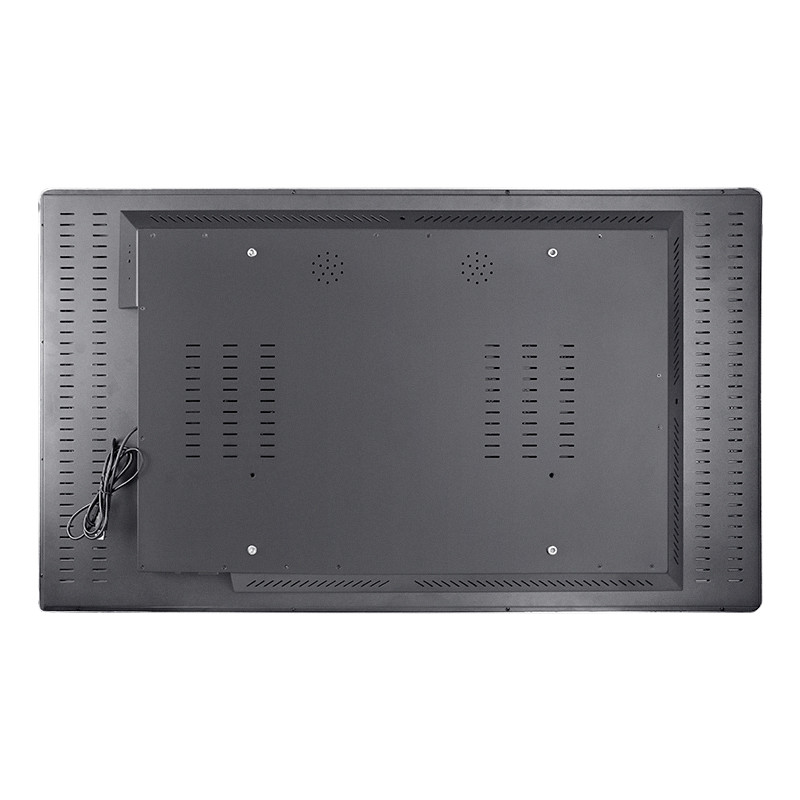

Anti Newton 32 Inch Open Frame Touch Display IR Capacitive Touch For Kiosk 0

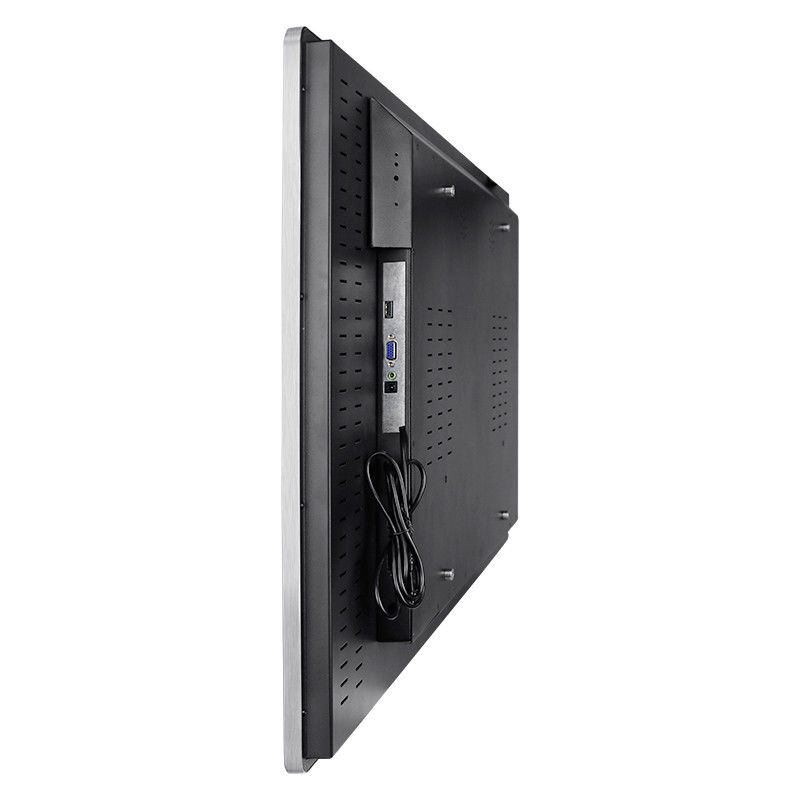

Anti Newton 32 Inch Open Frame Touch Display IR Capacitive Touch For Kiosk 1

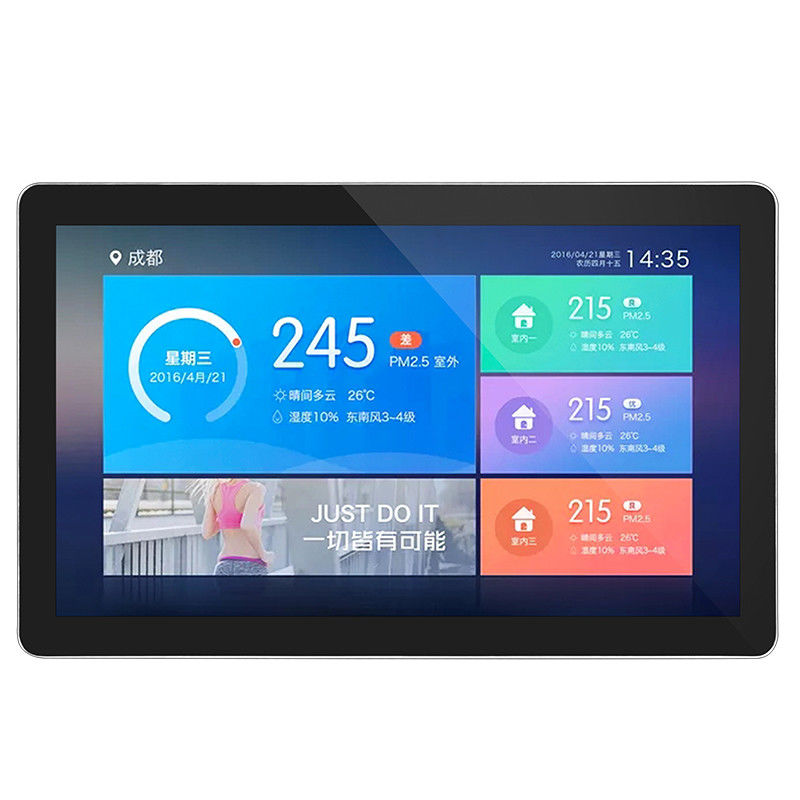

Anti Newton 32 Inch Open Frame Touch Display IR Capacitive Touch For Kiosk 2



1. What is your company's main product?

A:Our main product is digital photo frames, tablet pc , advertising players.


2. Q:What is the minimum order?

A: yes, our company mainly deals in wholesale business,but if you insist on buying one, or you only need one set,we will also deliver the goods to you.


3. Q:What payment methods your company accept?

A:We accept most of the payment methods,but mainly accept T/T, Western Union/Alibaba assurance trade payment.


4. Q:I haven't done business with you guys before,how can i trust your company?

A:Our company has been in for 11,which is longer than most of our fellow suppliers,we've been golden suppliers for years.what's more,we've got quite a lot authority certificates,for example,CE, ROHS, FCC, Alibaba On site checkcertificate.


5. Q:what's the shipment terms and delivery time of your company?

A:Well, they depends on the quantity of your order.As you know ,we need time to manufacture the machines.but mostly ,the shipment time is 3-8 working days after delivery.As for detailed cost, it depends on your final order.


6. Q:I would like to ask you if it's possible to have my logo on the product.

A:Yes, Our one-stop service can be customized according to customer requirements ODM/OEM development design production and processing
