Specifications

Screen Size: 10.1 12 15 15.6 17 19 21.5 24 32 ” TFT-LCD

Color: Black

Resolution: 1024*768，1920×1080，1280×1024，1440*900

Interface Type: VGA And DVI , HDMI, RS232- Optional

Type: Resistive Touch, 4-wires, 5-wires

Brightness: 350cd/m2 (1000cd/m2, Optional)

Installation: Kiosk, Embeded, Wall Mount

Warranty: 3 Years

Touch: Capacitive Touch

Case: Industrial Metal Frame

High Light:

5ms Open Frame Touch Screen Monitor

6ms Open Frame Touch Screen Monitor

Product Description

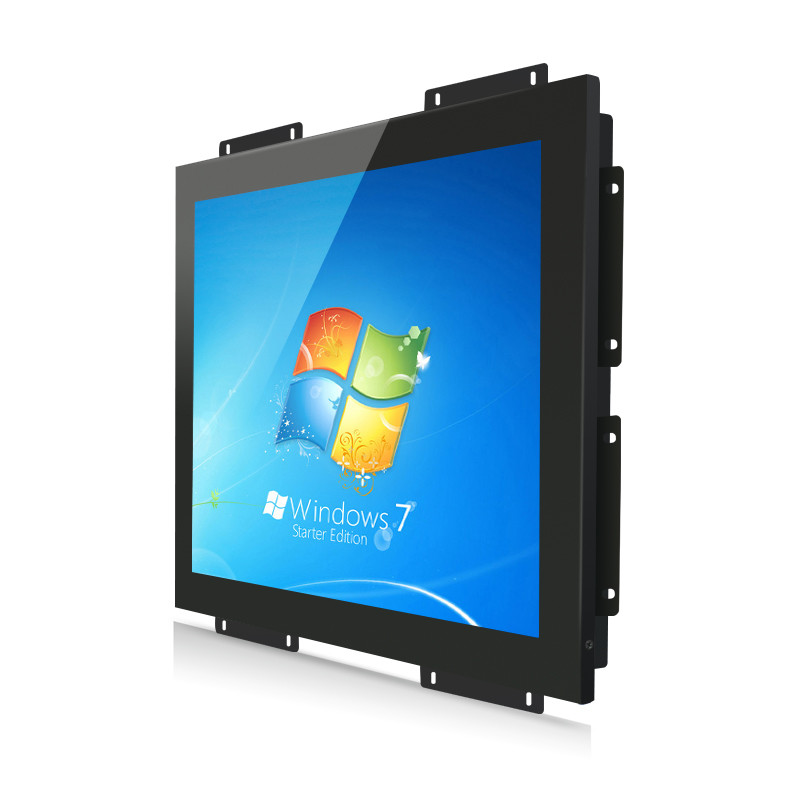

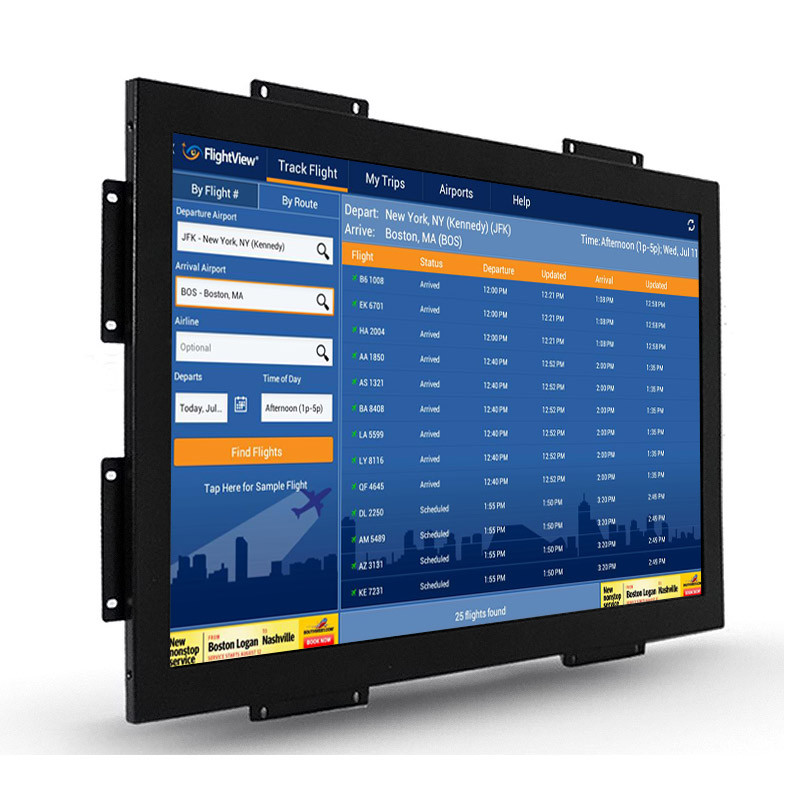

Embedded Touch 5ms 6ms Open Frame Touch Screen Monitor TFT LED LCD IPS

Embedded Touch Monitor 10.1 12 15 15.6 17 19 21.5 24 32 inch Waterproof TFT LED LCD IPS Open Frame Touch Screen Monitor

Various choices of surface treatments available, anti-Newton, -glare, special chemical strengthen hard coating,anti-reflection; Capable of handing spacer dots diameter is less than 0.035mm; Has our own factories,so our price is competitive; Excellent sales service; Applications: Light industry; Home appliances; Portable sport devices; Access control terminals; Portable medical devices
Touch Screen lcd monitor for machine: USB control ,HDMI VGA input,DC 12V/4A input. TFT LED panel resalution:1024X768.brightness 800cd/m2,conrtast ratio 900:1,5 wire line touch screen panel,USB control;
Faceplate surface: anti-glare coating and glare coating; Film thickness: 0.175 and 0.188mm; Glass thickness: 0.7, 1.1 and 1.8mm; Operation pressure: 20 to 150g; Storage temperature: -30 to 80¡ãC;Message noise: 5 to 15m/second; Operating current: 5 to 25mA; Humidity: <95%; Isolation resistance: 20M¦¸¡ü, 25V DC;Sealable against dust, water, oil and static; Advantages: Products insulation point is ¦µ0.03mm

Series	Water-proof and Open frame
LCD Type	10.1 12 15 15.6 17 19 21.5 24 32 ” TFT-LCD
Video Input	VGA and DVI , H-D-M-I - optional
OSD controls	Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Supply	Type: External brick
	Input (line) voltage: 100-240 VAC, 50-60 Hz
	Output voltage/current: 12 volts at 4 amps max
Mount Interface	1) VESA 75mm and 100mm
	2) Mount bracket, horizontal or vertical

Resolution	1024768,1920×1080,1280×1024,1440900
Dot Pitch(mm)	0.297×0.297
Nominal Input Voltage VDD	+3.3V(Typ)
Viewing angle (v/h)	80°/80°
Contrast	1000:1
Luminance(cd/m2)	350, 1000cd/m2 - optional
Response Time(Rising/Falling)	5ms/6ms
Support Color	16.2M
Backlight MTBF(hr)	50000
