21.5 Inch FHD Capacitive Touch Screen Monitor
Desk Top & Wall Mount Type with 1920x1080 Resolution
Key Features
- 21.5-inch cover lens with resolution 1920x1080, 16:10, wide screen, brightness 350nits and wide viewing angles ensuring sharpness of picture.
- VESA mounting 100 x 100mm.
- High durability and robustness via metal enclosure providing optimal thermal dissipation.
- 3 years warranty
- 10-point capacitive touch
Technical Specifications
| Panel size |
21.5 inch TFT-LCD Industrial Grade Touch Screen Monitor |
| Display ratio |
16:09 |
| Standard Resolution |
1920*1080/60HZ |
| Number of Colors |
16.7M |
| Brightness |
350cd/m2 |
| Response time |
5ms |
| View angle |
Horizontal:80° |
| Vertical:70° |
| Contrase ratio |
1000/1 |
| Video input format |
(analog) RGB |
| Interface |
VGA for video signal |
| HDMI, AV, TV, USB, BNC, DVI optional |
| Frequency |
HSF:30-80KHZ VSF:56-75HZ |
| Power supply |
External Power Supply: DC 12V |
| Operation Environment |
Workable Temperature:-10 to 60°C Storage temperature:-20 to 70°C |
| Operate relative humidity:20% to 80%;storage relative humidity:10% to 90% |
| Touch model |
Projected Capacitive touch screen |
| Optional |
(resistive touch,SAW,Infrared touch,etc optional) |
| Duration |
50000hours |
| touch validity |
>1,000,000 |
| Mount (optional) |
1) provide wall brackets for wall-mounting, VESA 75mm&100mm |
| 2) provide stable metal base to support the monitor |
| OSD control |
AUTO,+,POWER,-,MENU |
| brightness,contrast ratio,auto adjustment,phase position,clock,Languages,function,Install,reset |
| Touch interface |
USB or RS232 optional |
| Touch response time |
5ms |
| Warranty |
1 year,provide spare parts |
| Supporting O.S |
Win,Linux,Mac. |

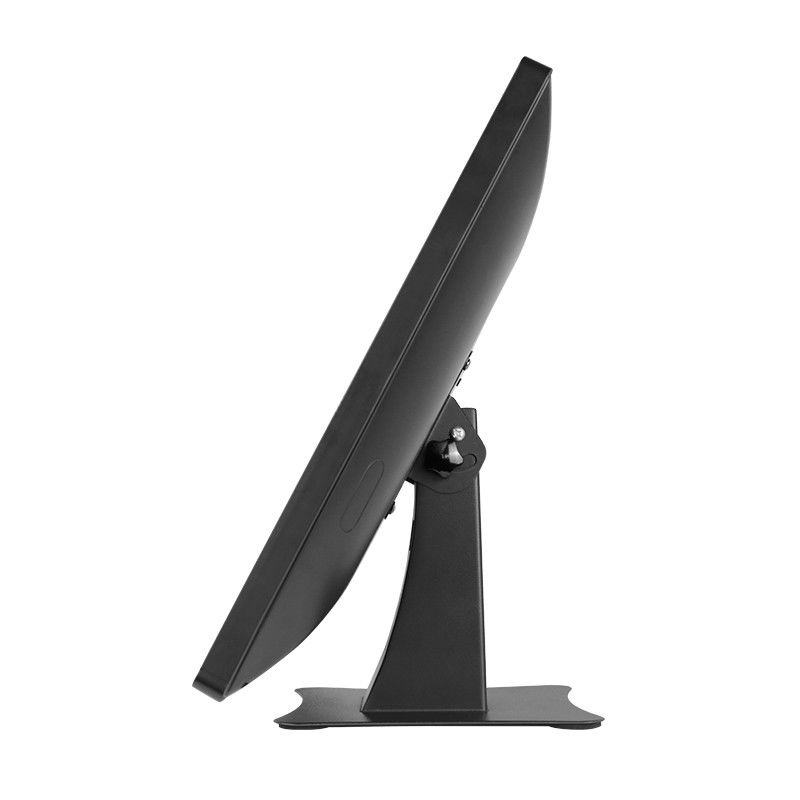

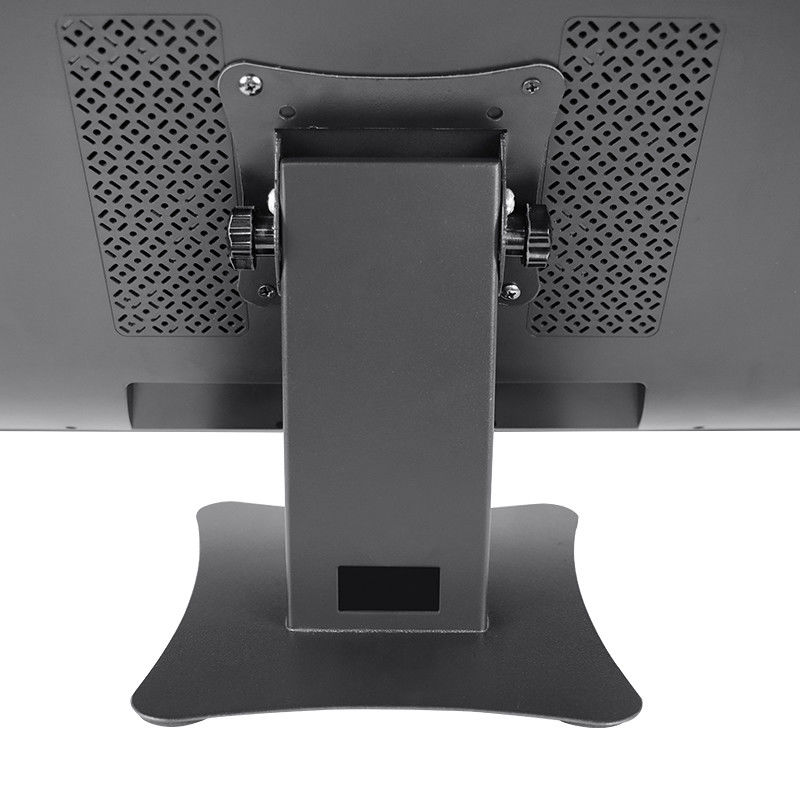

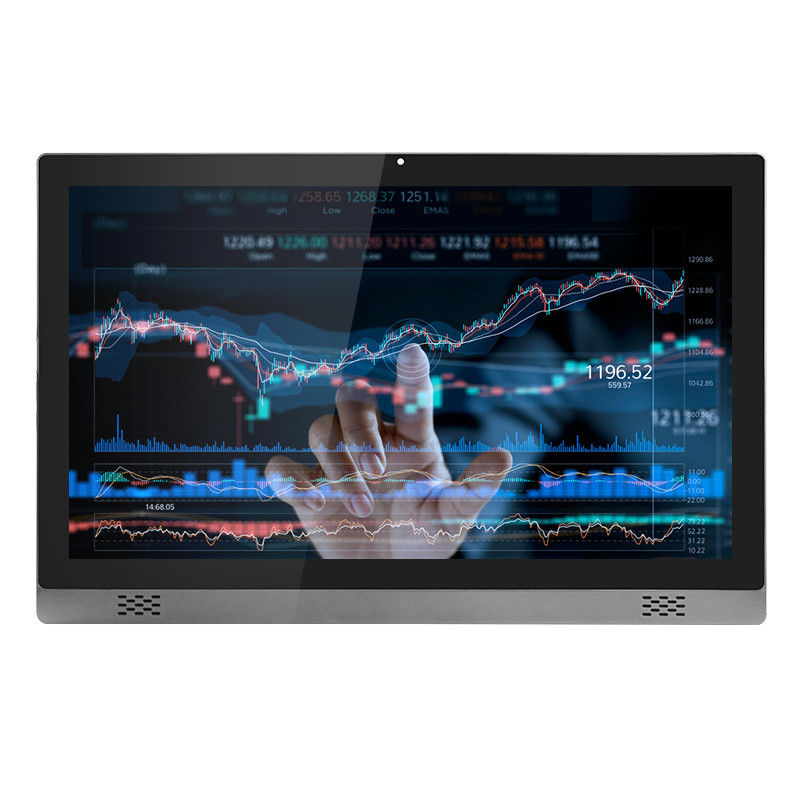

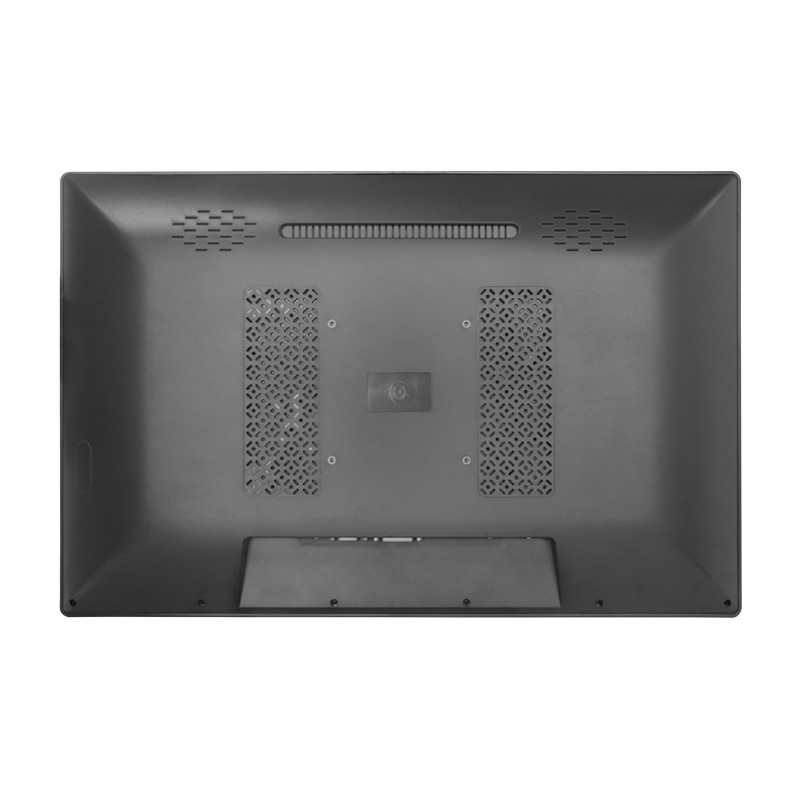

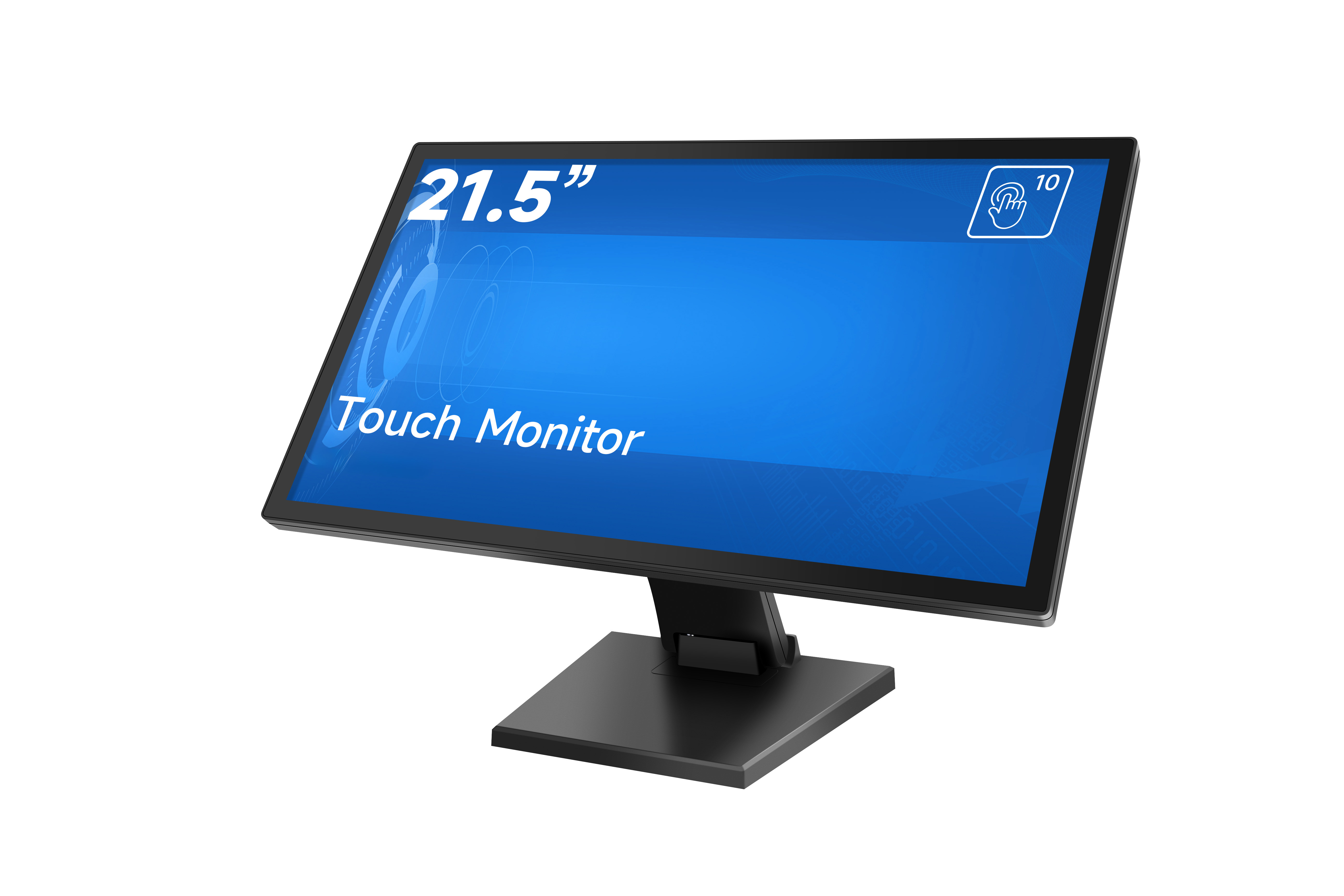

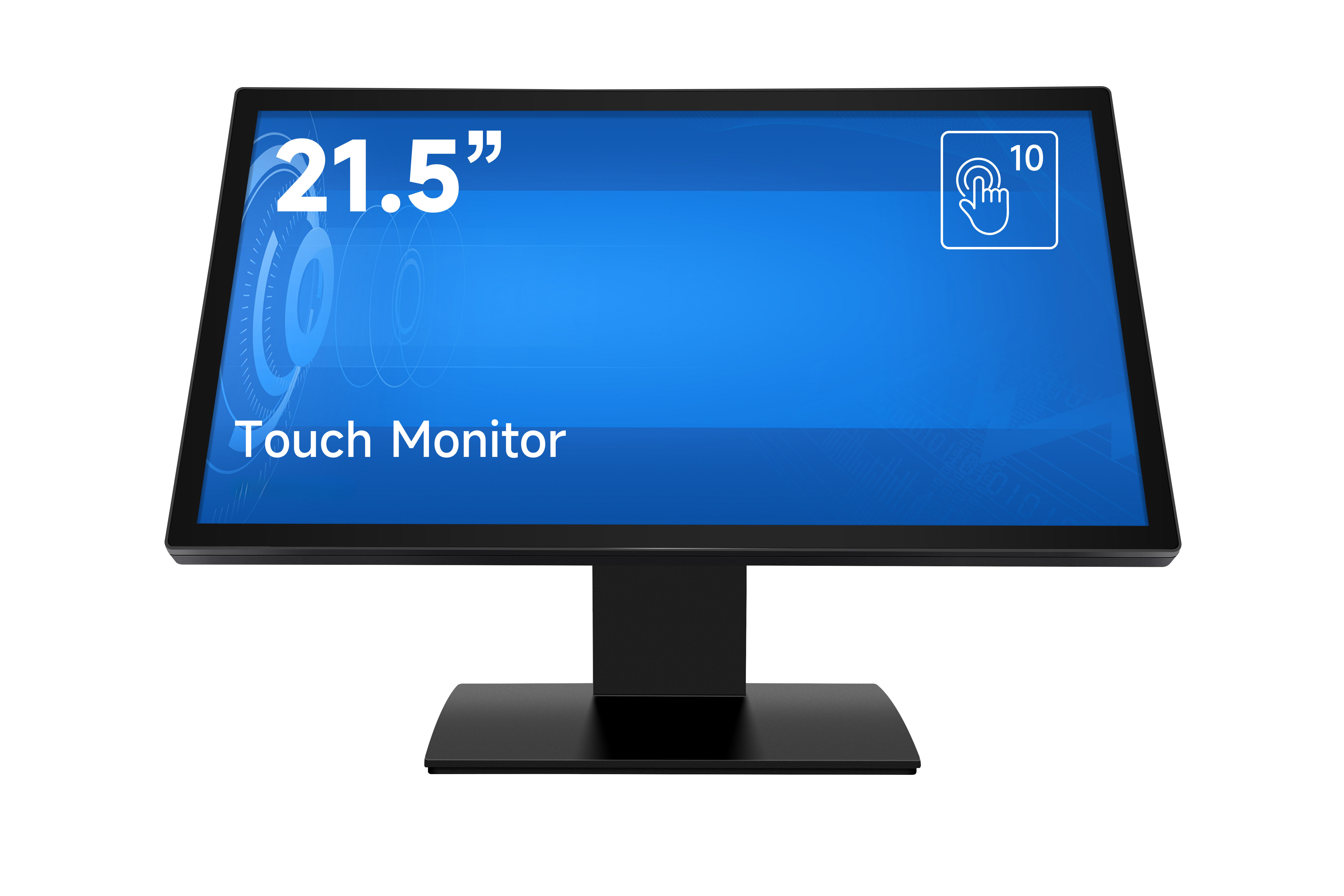

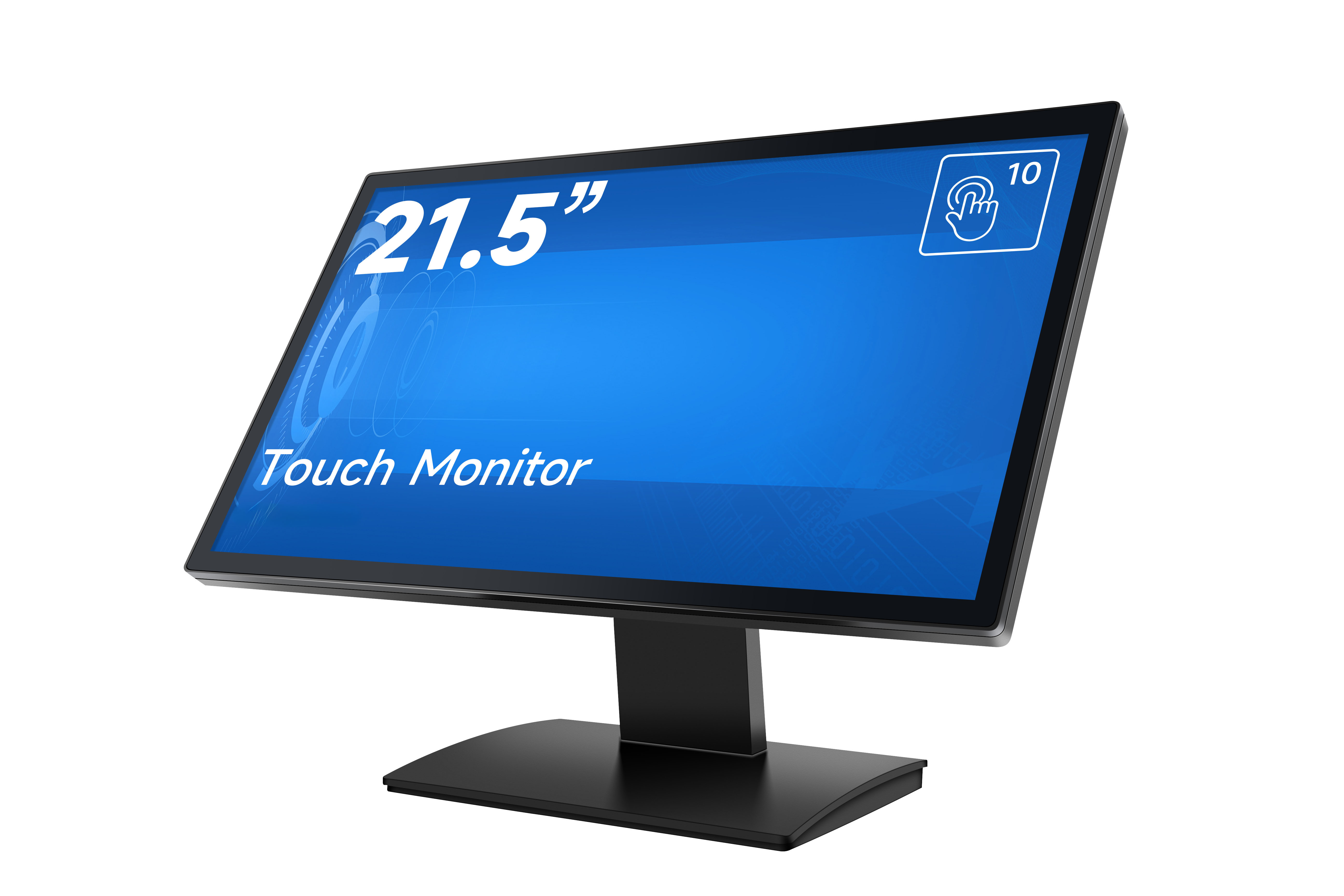

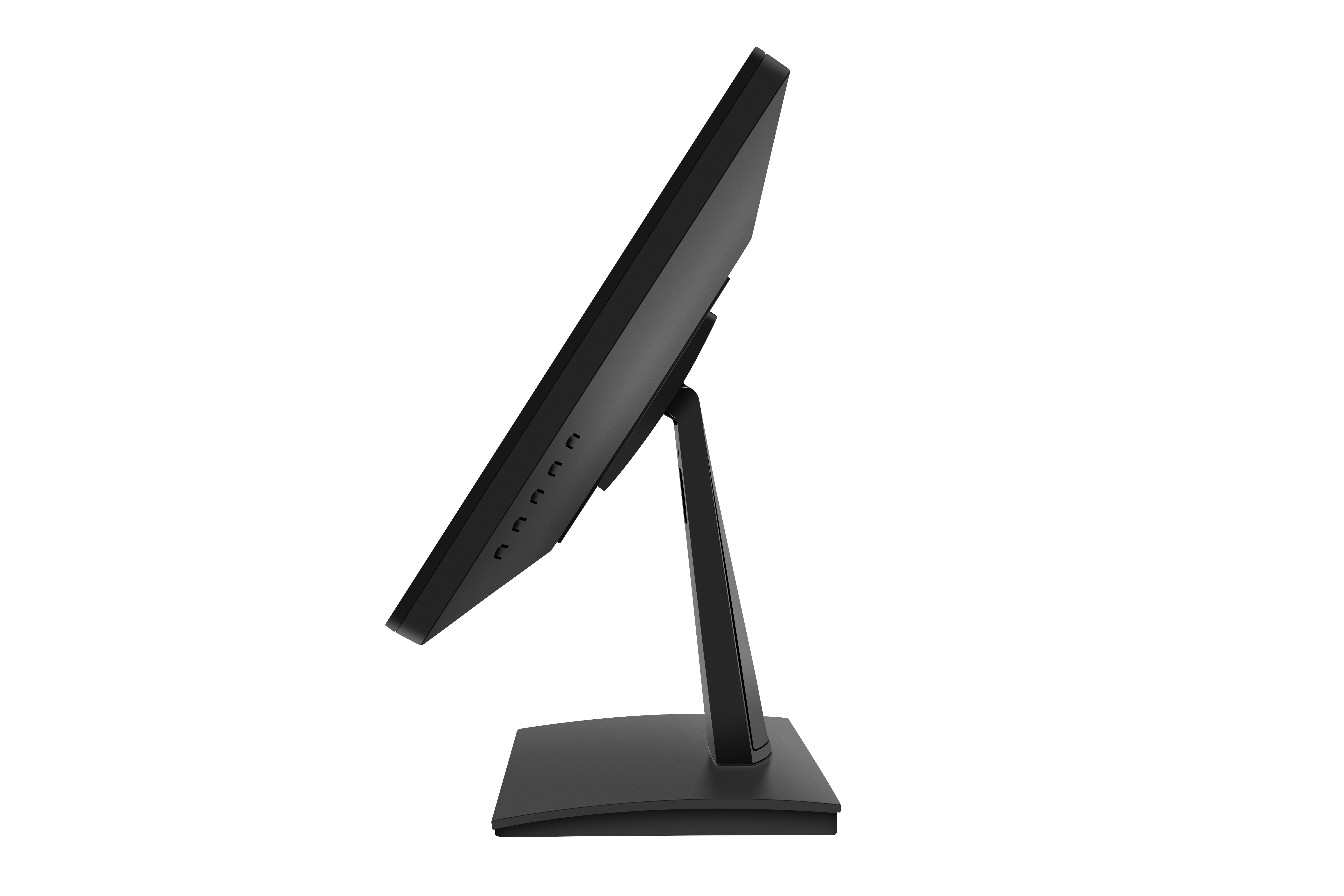

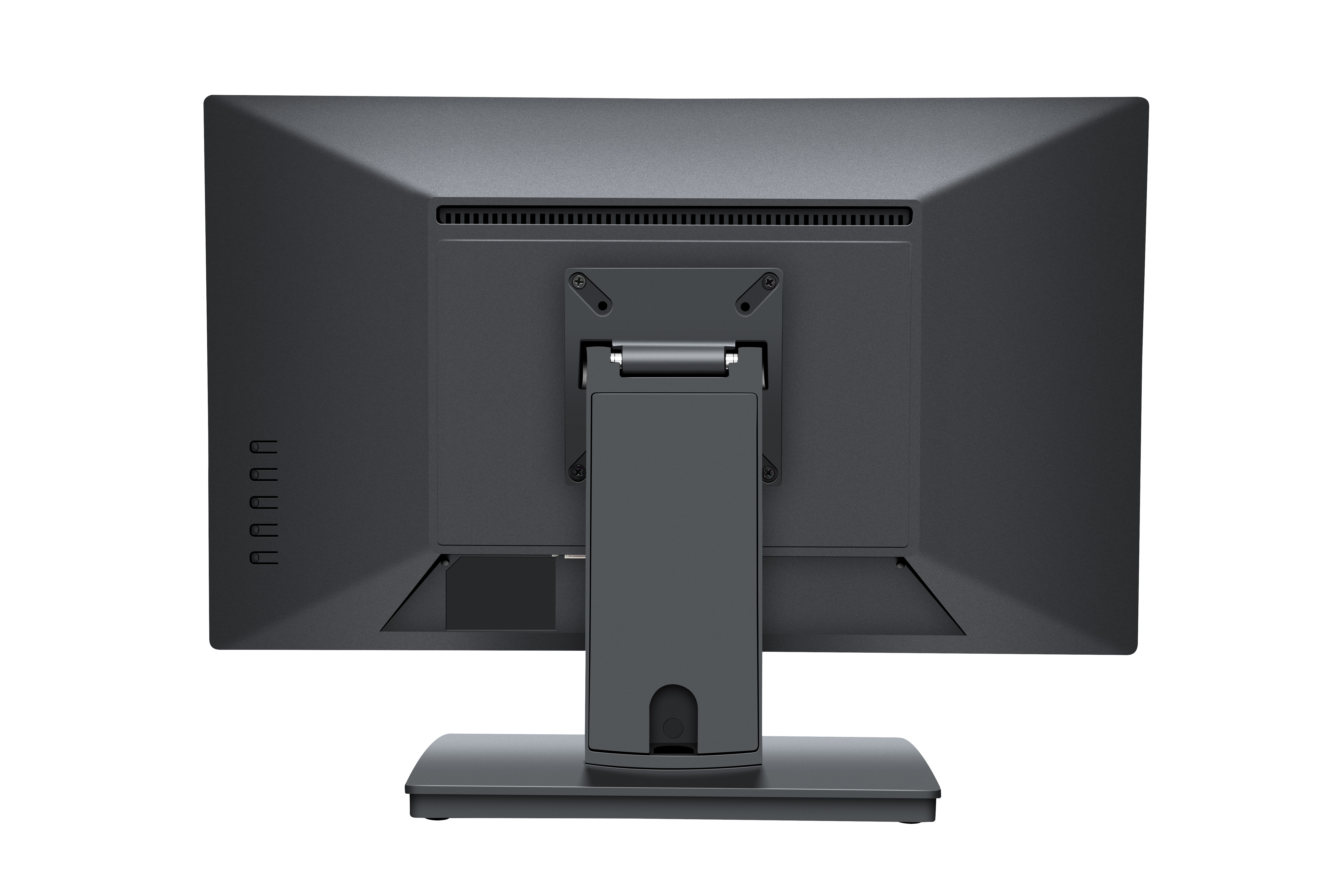

Detail Picture
Frequently Asked Questions
1. What is your company's main product?
A:Our main product is digital photo frames, tablet pc , advertising players.
2. Q:What is the minimum order?
A: yes, our company mainly deals in wholesale business,but if you insist on buying one, or you only need one set,we will also deliver the goods to you.
3. Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T, Western Union/ assurance trade payment.
4. Q:I haven't done business with you guys before,how can i trust your company?
A:Our company has been in .com for 11,which is longer than most of our fellow suppliers,we've been golden suppliers for years.what's more,we've got quite a lot authority certificates,for example,CE, ROHS, FCC, On site checkcertificate.
5. Q:what's the shipment terms and delivery time of your company?
A:Well, they depends on the quantity of your order.As you know ,we need time to manufacture the machines.but mostly ,the shipment time is 3-8 working days after delivery.As for detailed cost, it depends on your final order.
6. Q:I would like to ask you if it's possible to have my logo on the product.
A:Yes, Our one-stop service can be customized according to customer requirements ODM/OEM development design production and processing
