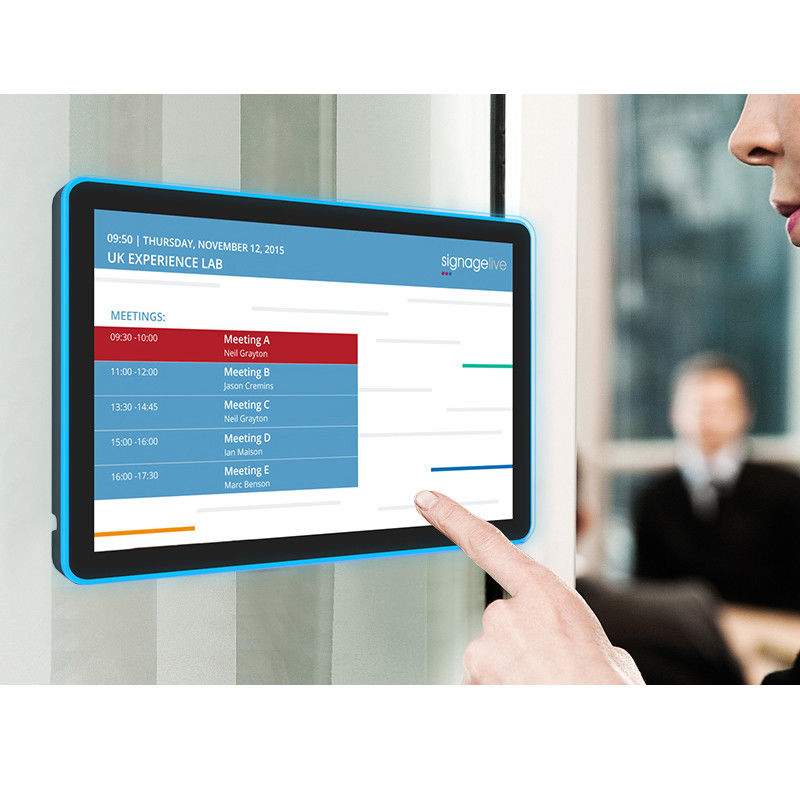

ROCKCHIP RK3288 Wall Mount Touch Screen Tablet With LED Light Bar
Product Overview
The Rockchip RK3288 wall mount touch screen tablet with LED light bar is designed for modern commercial environments, delivering reliable performance and interactive capabilities for retail, hospitality, and enterprise applications.
Key Specifications
- Operating System: Android 8.1, 10.0
- CPU: RK3288 Quad core cortex A17
- RAM: 2GB / 4GB
- ROM: 16GB / 32GB
- WiFi: 802.11b/g/n
- Bluetooth: 4.0
- Camera: 2MP Front (5MP Front optional, dual camera optional)
- Resolution: 1280×800 Display

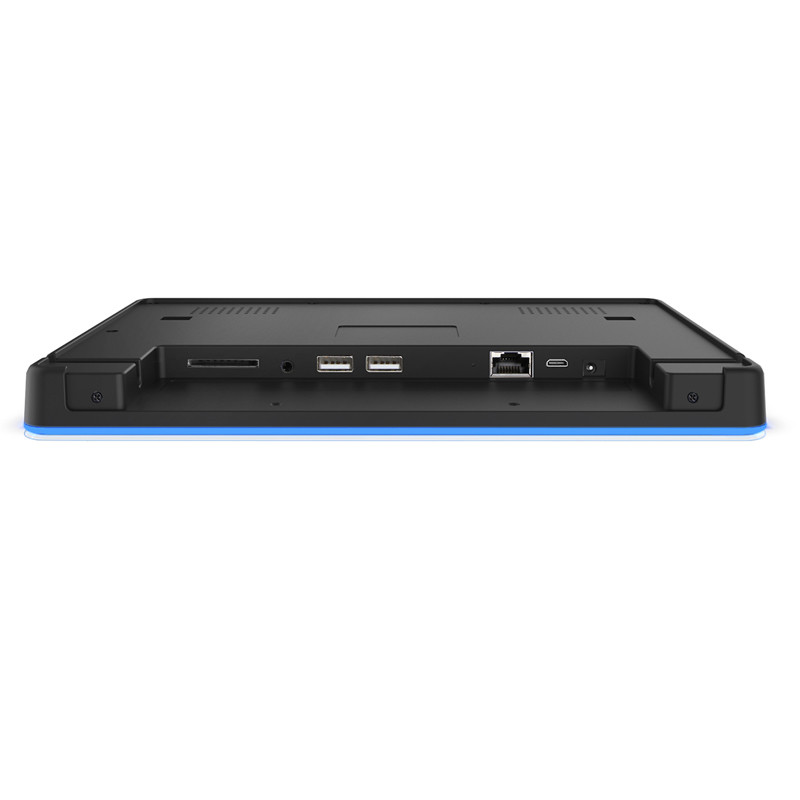

- Interfaces: Micro USB 2.0; 3.5mm earphone jack; Micro SD card slot; SIM Card Slot
- Multi-language Support
Package Contents
- 1 x 10 inch Android Tablet
- 1 x USB Cable
- 1 x OTG Cable
- 1 x User Manual
- 1 x AC Adapter
Technical Specifications
| System |
Specification |
| CPU |
RK3288 Quad core cortex A17 |
| RAM |
2GB |
| Internal Memory |
16GB |
| Operating System |
Android 8.1 |
| Touch Screen |
10-Point capacitive touch |
| Display |
Specification |
| Panel |
10.1" LCD IPS panel |
| Resolution |
1280×800 |
| Active Area |
216.96(H)×135.6mm(V) |
| Display Mode |
Normally black, IPS |
| Viewing Angle |
85/85/85/85 (L/R/U/D) |
| Contrast Ratio |
1000:1 |
| Luminance |
250cd/m² |
| Aspect Ratio |
16:10 |
| Network |
Specification |
| WiFi |
802.11b/g/n |
| Ethernet |
RJ45, 100M/1000M |
| 3G/4G |
Support external 3G/4G USB dongle |
| Bluetooth |
Bluetooth 4.0 |
| Interface |
Specification |
| Card Slot |
SD, Support up to 32GB |
| Mini USB |
1×USB OTG |
| USB 2.0 |
3×USB 2.0 |
| Power Jack |
DC power input |
| RJ45 |
RJ45, 100M/1000M (POE available) |
| Earphone |
3.5mm earphone |
| Serial Port |
USB type serial port |
| Media Playback |
Specification |
| Video Format |
MPEG-1, MPEG-2, MPEG-4, H.263, H.264, VC1, RV etc., support up to 1080p |
| Audio Format |
MP3/WMA/AAC etc. |
| Photo |
JPEG |
| Others |
Specification |
| NFC |
NFC available |
| Speaker |
2×2W |
| Camera |
2.0MP Front camera |
| Microphone |
Yes |
| Language |
Multi-language |
| Accessories |
Adapter: 12V/2A, User manual: Yes |
Product Features
Designed for Modern Business Needs
This commercial-grade touch screen tablet is powered by the Rockchip RK3288 processor, ensuring stable performance for continuous operation in demanding business settings. Ideal for digital signage, interactive kiosks, point of sale, or meeting room systems.
Sleek Wall-Mounted Form with LED Light Bar
The integrated wall-mount design saves space while maintaining a clean, modern look. The LED light bar serves as a functional indicator for notifications and enhances user engagement in busy settings.
Stability and Performance You Can Trust
With the RK3288 quad-core processor, the tablet supports multitasking and responsive interaction for real-time applications like self-service ordering, visitor management, or wayfinding solutions.
Flexible Applications Across Industries
Versatile enough for retail digital catalogs, restaurant self-ordering terminals, corporate meeting room booking systems, and public information kiosks for wayfinding or ticketing.
Built for Integration and Scalability
Multiple connectivity options support peripherals like card readers, printers, or scanners. Professional design and reliable components reduce maintenance needs and lower total cost of ownership.
Why Partner With Us
We provide OEM and ODM support, ensuring products can be customized to meet different branding, interface, or deployment requirements. We work closely with distributors, integrators, and corporate buyers to deliver solutions that add value to their operations.
Your Trusted Commercial Display Solution
The Rockchip RK3288 wall mount touch screen tablet with LED light bar is a dependable tool designed for real business applications, blending performance, design, and adaptability for long-term reliability and enhanced customer interaction.
