Open Frame 12 Inch Touch Screen Monitor 350cd/m2 1000cd/M2 optional

Product Details:
Place of Origin: Guangdong,China
Certification: CE&FCC&Rohs
Model Number: HOP121PC-8
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price can be negotiable
Packaging Details: 59x10x27cm
Delivery Time: 5~7 days
Payment Terms: T/T, L/C
Supply Ability: 50000 pcs/month
Specifications Product Description Request A Quote
Screen Size: 12 Inch
Color: Black
Resolution: 1024x768
Interface Type: VGA And DVI , HDMI - Optional
Type: Capacitive 10 Points Touch
Brightness: 350cd/m2 (1000cd/m2, Optional)
Installation: Kiosk, Embeded, Wall Mount
Warranty: 3 Years
High Light:

1024x768 12 inch touch screen monitor


350cd/M2 Open Frame LCD Monitors


1000cd/M2 12 Inch Touch Screen Monitor

Product Description

Open Frame 12 Inch Touch Screen Monitor 350cd/M2 1000cd/M2 Optional


12" Embedded Open Frame Capacitive Touch screen LCD Monitors 1000cd/m2 optional

  • 12.1" 1024 x 768 XGA, 800 x 600 SVGA panel with LED backlight for 20% power saving and environmental protection
  • -20°C~+60°C wide operating temperature support
  • 10 points capacitive touchscreen solution
  • Combo touch interface of RS-232 and USB
  • Dual signal interface with VGA and DVI
  • Various choices of surface treatments available, special chemical strengthen hard coating,anti-reflection; Has our own factories,so our price is competitive; Excellent sales service; Applications: Light industry; Home appliances; Portable sport devices; Access control terminals; Portable medical devices , anti-Newton,
  • Different size optioanl from 10.4 inch to 32 inch


Series Water-proof and Open frame
LCD Type 12.1” TFT-LCD
Video Input VGA and DVI , HDMI - optional
OSD controls Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Supply Type: External brick
Input (line) voltage: 100-240 VAC, 50-60 Hz
Output voltage/current: 12 volts at 4 amps max
Mount Interface 1)VESA 75mm and 100mm
2)2)Mount bracket, horizontal or vertical


LCD Specification
Active Area(mm) 246.0(H)×184.5(V)
Resolution 1024*768
Dot Pitch(mm) 0.3075×0.3075
Nominal Input Voltage VDD +3.3V(Typ)
Viewing angle (v/h) 60°/70°(CR>5)
Contrast 1000:1
Luminance(cd/m2) 350, 1000cd/m2 - optional
Response Time(Rising/Falling) 5ms/5ms
Support Color 16.2M colors
Backlight MTBF(hr) 50000


Touchscreen Specification
Type Capacitive touch screen
Resolution 10points touch
Light Transmission 92%
Touch Life Cycle 50 millions
Touch Response time 2ms
Touch System Interface USB interface
Power consumption +5V@80mA

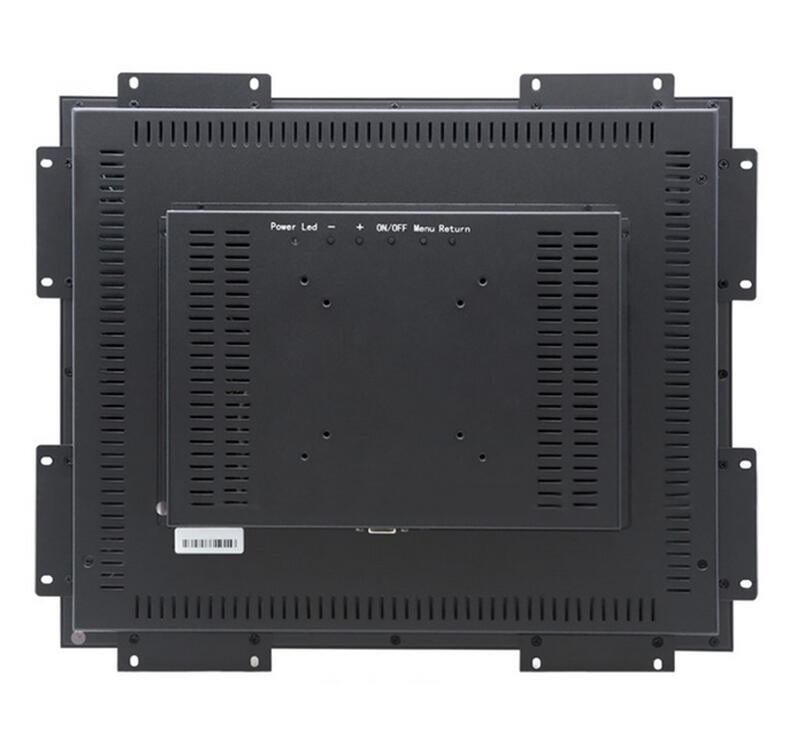

Open Frame 12 Inch Touch Screen Monitor 350cd/m2 1000cd/M2 optional 0

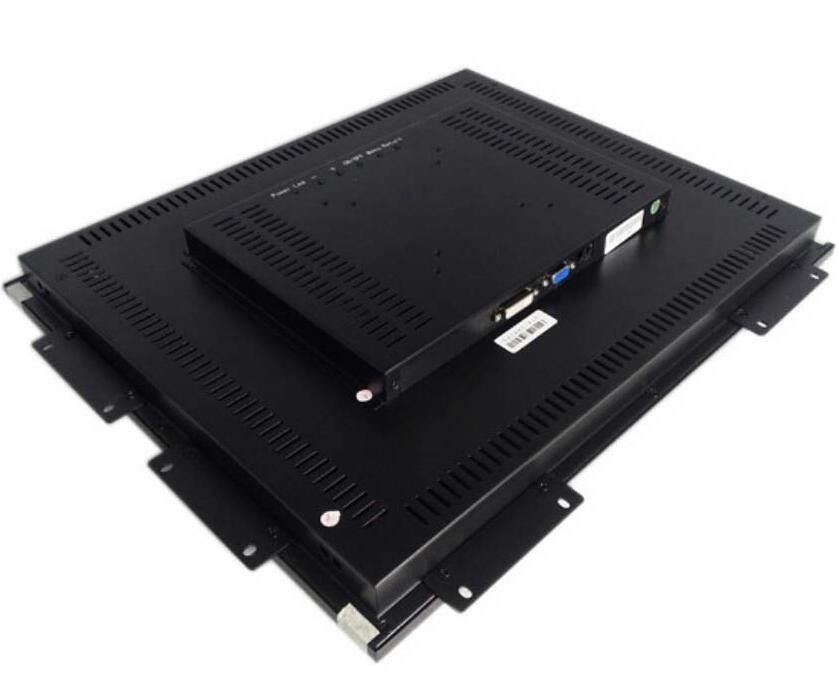

Open Frame 12 Inch Touch Screen Monitor 350cd/m2 1000cd/M2 optional 1

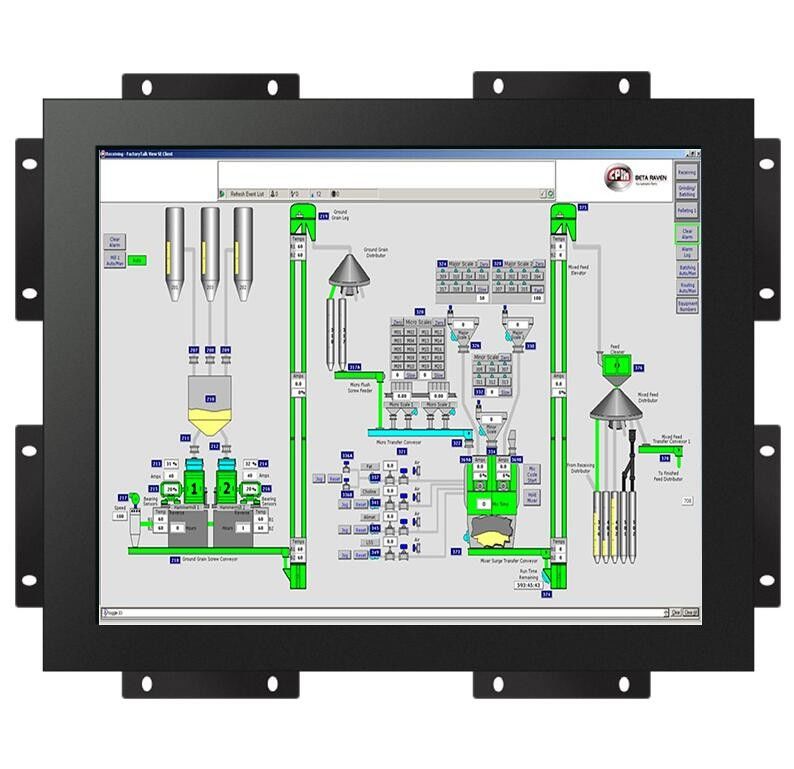

Open Frame 12 Inch Touch Screen Monitor 350cd/m2 1000cd/M2 optional 2

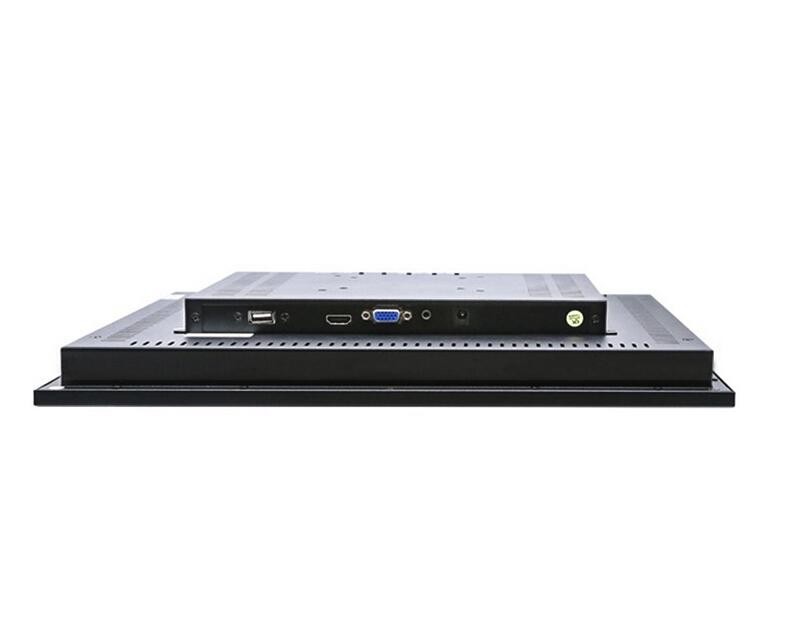

Open Frame 12 Inch Touch Screen Monitor 350cd/m2 1000cd/M2 optional 3
1. What is your company's main product?
A:Our main product is digital photo frames, tablet pc , advertising players.
2. Q:What is the minimum order?
A: yes, our company mainly deals in wholesale business,but if you insist on buying one, or you only need one set,we will also deliver the goods to you.
3. Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T, Western Union/Alibaba assurance trade payment.
4. Q:I haven't done business with you guys before,how can i trust your company?
A:Our company has been in for 14 years ,which is longer than most of our fellow suppliers,we've been golden suppliers for years.what's more,we've got quite a lot authority certificates,for example,CE, ROHS, FCC, Alibaba On site checkcertificate.
5. Q:what's the shipment terms and delivery time of your company?
A:Well, they depends on the quantity of your order.As you know ,we need time to manufacture the machines.but mostly ,the shipment time is 3-8 working days after delivery.As for detailed cost, it depends on your final order.
6. Q:I would like to ask you if it's possible to have my logo on the product.
A:Yes, Our one-stop service can be customized according to customer requirements ODM/OEM development design production and processing.
