1440x900 Embedded Touch Monitor

When a touchscreen needs to become part of a kiosk, wall-mounted terminal, or custom enclosure, the challenge is not simply finding a screen with the right resolution. The display also needs to fit the mechanical structure, connect with the existing host system, provide reliable touch interaction, and remain practical for repeated deployment. The HOP190-8 is a 19-inch open frame touch screen monitor built around these integration requirements.

With a 1440 × 900 TFT-LCD, industrial metal frame, IR touch configuration, VGA and HDMI inputs, optional RS232 and USB-B interfaces, and VESA 75/100 mounting, the display provides a practical platform for embedded and customized equipment. Optional 1000 cd/m² brightness and capacitive touch configuration allow the specification to be adjusted for different project requirements. The product also supports OEM logo and packaging customization, with a stated 3-year warranty for commercial procurement.

• Faceplate surface: anti-glare coating and glare coating; Film thickness: 0.175 and 0.188mm; Glass thickness: 0.7, 1.1 and 1.8mm; Operation pressure: 20 to 150g; Storage temperature: -30 to 80¡ãC;Message noise: 5 to 15m/second; Operating current: 5 to 25mA; Humidity: <95%; Isolation resistance: 20M¦¸¡ü, 25V DC;Sealable against dust, water, oil and static; Advantages: Products insulation point is ¦µ0.03mm
• Various choices of surface treatments available, special chemical strengthen hard coating,anti-reflection; Has our own factories,so our price is competitive; Excellent sales service; Applications: Light industry; Home appliances; Portable sport devices; Access control terminals; Portable medical devices , anti-Newton,
• 19 inch Usb/RS232 Touch Screen lcd monitor for machine: USB control ,HDMI D-Sub input,DC 12V/4A input.19" TFT LED panel resalution:1440x900 .brightness 350cd/m2,conrtast ratio 900:1,5 wire line touch screen panel,USB/RS232 control;

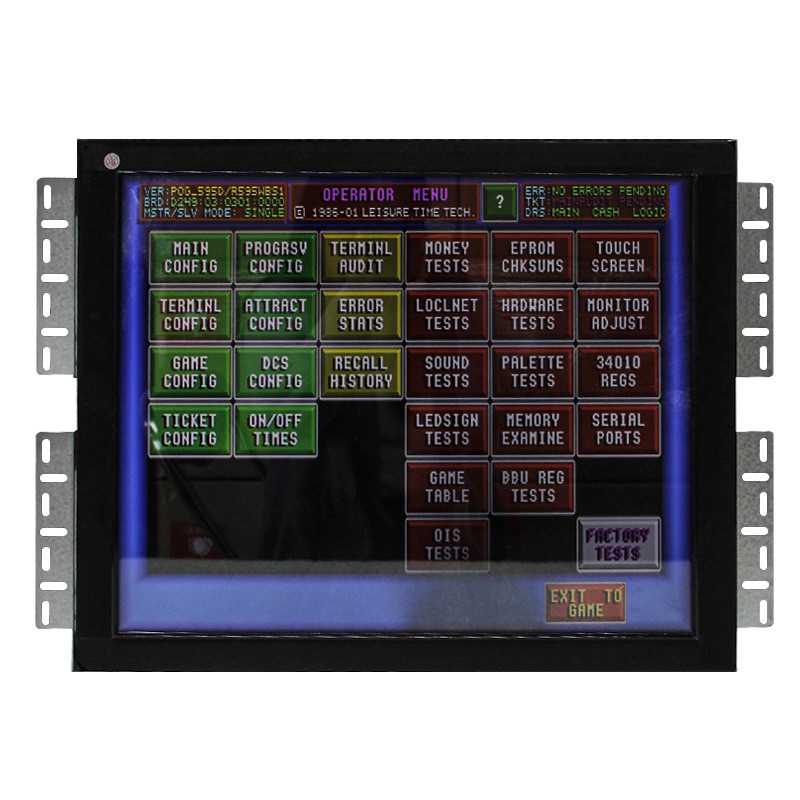

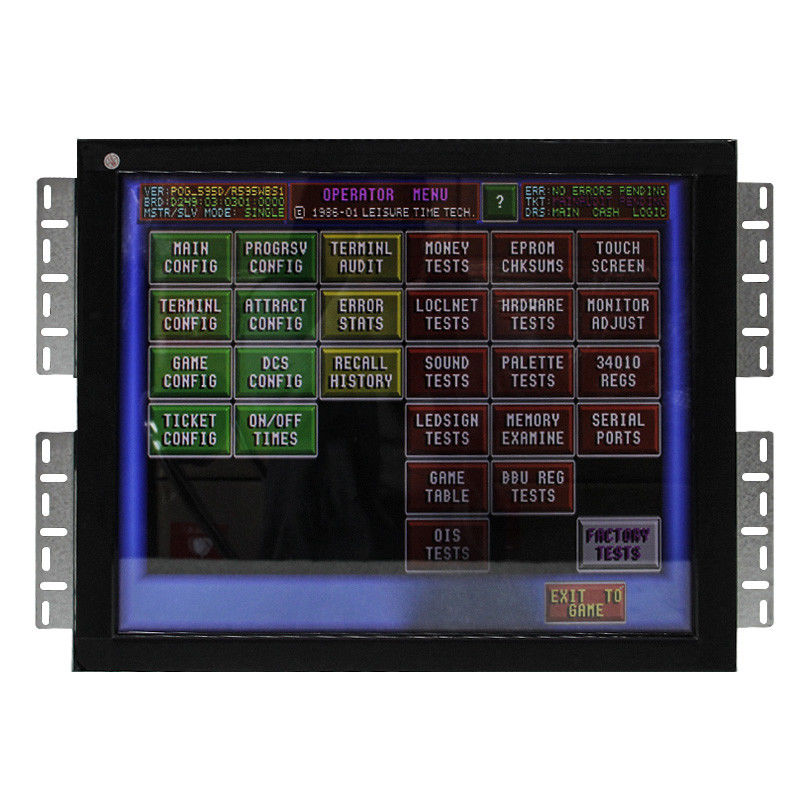

The 19-inch screen provides a larger working area than compact embedded displays while maintaining a practical format for equipment integration. Its 1440 × 900 resolution provides sufficient workspace for operating interfaces, control screens, menus, and other graphical content used in interactive terminals. The 339.8 × 272.5 mm active area and 0.3075 × 0.3075 mm dot pitch define the physical display area for mechanical planning. With 350 cd/m² standard brightness, 1000:1 contrast, 16.2 million colors, and a 5 ms response time, the display is configured for general interactive viewing where clear information presentation is more important than desktop-style entertainment performance.

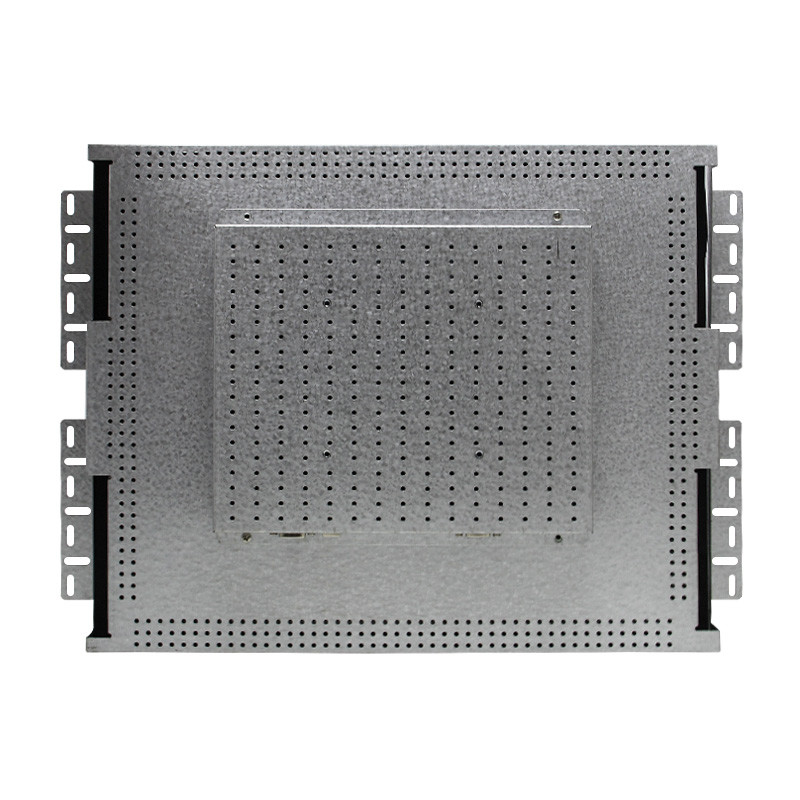

The HOP190-8 uses an open-frame design with an industrial metal frame, allowing the display assembly to be incorporated into a customer's own equipment rather than used as a conventional standalone monitor. This is useful when the screen needs to sit within a kiosk, embedded enclosure, wall-mounted terminal, or customized panel. VESA 75 mm and 100 mm mounting options, together with horizontal and vertical mounting brackets, give mechanical designers more flexibility when positioning the display. The open-frame approach also makes it easier to treat the monitor as one component of a larger product architecture, where the enclosure, computing hardware, controls, and display are designed together.

The HOP190-8 is specified with an IR touchscreen, while capacitive touch is also listed as an available configuration. The touch system provides up to 92% light transmission, a 2 ms response time, and a stated touch life cycle of up to 50 million touches. This combination is suited to equipment where operators repeatedly interact with the screen rather than simply viewing information. USB and RS232 are available as touch interfaces, giving integrators flexibility when connecting the touch function to their host system. For projects with different interaction requirements, confirming the required touch technology and interface during configuration helps ensure that the selected display matches the final equipment architecture.

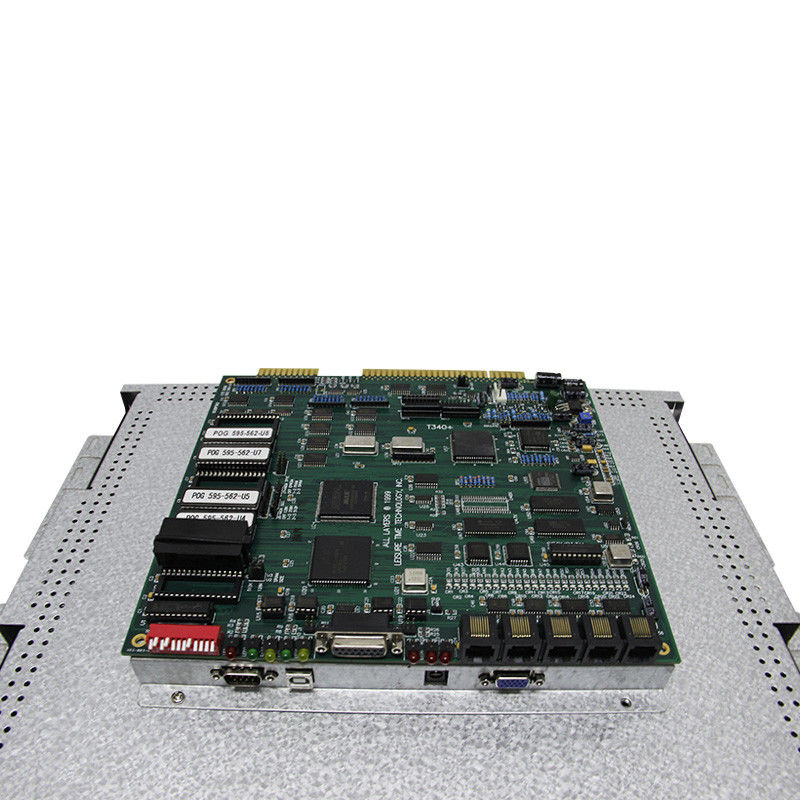

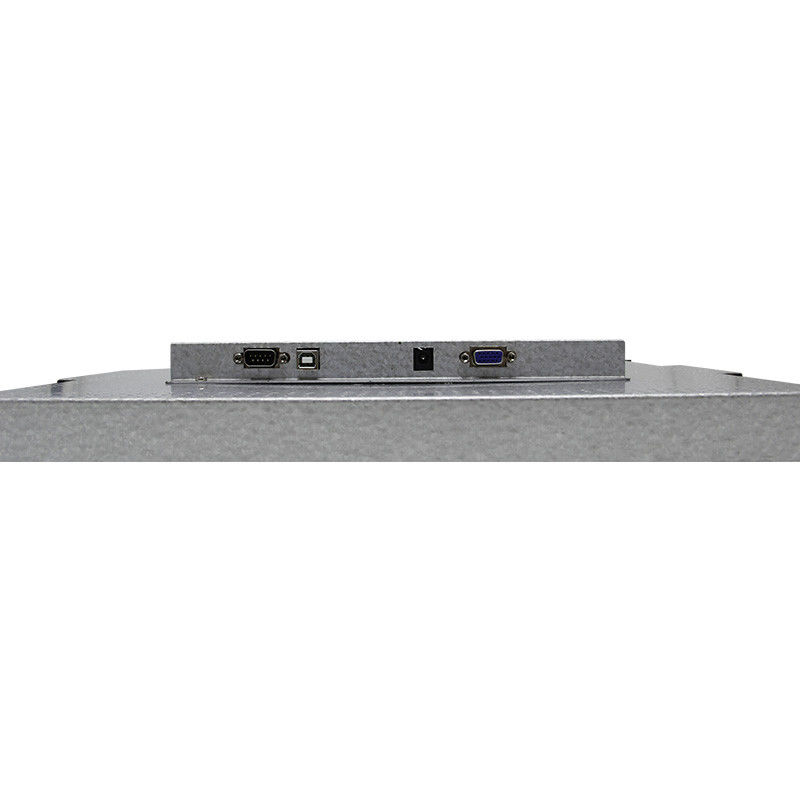

The display supports VGA / D-sub and HDMI video input, covering both established and widely used digital display connections. Optional RS232 and USB-B interfaces provide additional flexibility for projects with specific communication or touch-interface requirements. This makes the monitor easier to incorporate into different host architectures without requiring the display to include its own computing platform. The HOP190-8 is therefore positioned as a display and touch component that works alongside the customer's controller, industrial computer, media player, or other host device. For system integration, the required video output, touch communication method, and optional interfaces can be confirmed before the final configuration is selected.

Standard brightness is specified at 350 cd/m², while a 1000 cd/m² option is available for projects that require a higher-luminance display configuration. This gives buyers the ability to select the brightness level according to the intended installation environment instead of using the same specification for every project. The panel also provides a 1000:1 contrast ratio, 16.2 million colors, and 60° / 70° viewing angles under the stated contrast condition. For embedded equipment, these characteristics help define how the interface will appear once the display is installed within the final enclosure. Brightness requirements should be evaluated against the actual ambient lighting and installation conditions during project specification.

The HOP190-8 is specifically positioned for kiosk, embedded, and wall-mount deployment, making installation flexibility one of its key practical advantages. A kiosk manufacturer can integrate the display into a self-service enclosure, while an equipment developer can build it directly into a customized panel. Wall-mounted installations can use the available mounting interfaces and bracket configurations to position the screen according to the final structure. VESA 75 mm and 100 mm mounting support provides standardized attachment points, while horizontal and vertical bracket options offer additional mechanical flexibility. Because the product information does not specify a particular industry application, the final use case should be evaluated according to the customer's enclosure, operating environment, and system requirements.

Embedded displays may require adjustment after they have been installed inside the finished equipment. The HOP190-8 provides OSD controls for brightness and contrast, together with auto-adjust, phase, clock, horizontal and vertical positioning, language selection, function settings, and reset. These controls allow technicians to make display adjustments without changing the customer's application software. This can be useful during commissioning, especially when the final mounting position, viewing angle, or host signal differs from the original development setup. For integrators managing multiple installations, local display adjustment also provides a straightforward way to fine-tune the screen during deployment rather than redesigning the complete software or hardware configuration.
