FCC 19 Inch 1440x900 Open Frame Touch Screen Monitor For Slot Machine

Product Details:
Place of Origin: Guangdong,China
Brand Name: OEM or CNHOPESTAR
Certification: CE&FCC&Rohs
Model Number: HOP190
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price negotiable
Packaging Details: 59x10x27cm
Delivery Time: 2-8 working days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 50000 pcs/month
Specifications Product Description Request A Quote
Specifications
Specifications
Screen Size: 19 Inch
Resolution: 1440x900
Interface Type: VGA And HDMI, RS232- Optional
Type: IR Touch , Capacitive Touch Or No Touchscreen
Brightness: 350cd/m2 (1000cd/m2, Optional)
Installation: Kiosk, Embedded, Wall Mount
Warranty: 3 Years
3M Touch: Support
Case: Industrial Metal Frame
High Light:

1440x900 Open Frame Touch Screen Monitor

,

1440x900 19 inch touchscreen monitor

,

FCC 19 inch touchscreen monitor

Product Description

19 inch IR 3M Touch Gambling Monitor Open Frame Embedded for Slot Machine



  • 19 inch Usb/RS232 Touch Screen lcd monitor for Slot Gambling machine: USB control ,HDMI D-Sub input,DC 12V/4A input.19" TFT LED panel resalution:1440x900 , 5 wire line touch screen panel,USB/RS232 control;
  • Various choices of surface treatments available, special chemical strengthen hard coating,anti-reflection;
  • Price is competitive supplied by our own manufacturer ; Excellent sales service; Applications: Light industry; Home appliances; Portable sport devices; Access control terminals; Portable medical devices , anti-Newton,
  • Faceplate surface: anti-glare coating and glare coating; Film thickness: 0.175 and 0.188mm; Glass thickness: 0.7, 1.1 and 1.8mm; Operation pressure: 20 to 150g; Storage temperature: -30 to 80¡ãC;Message noise: 5 to 15m/second; Operating current: 5 to 25mA; Humidity: <95%; Isolation resistance: 20M¦¸¡ü, 25V DC;Sealable against dust, water, oil and static; Advantages: Products insulation point is ¦µ0.03mm



General
Series Water-proof and Open frame
LCD Type 19” TFT-LCD 1440x900 5ms
Video Input D-sub and HDMI RS232 , USB-b ,- optional
OSD controls Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Supply Type: External brick
Input (line) voltage: 100-240 VAC, 50-60 Hz
Output voltage/current: 12 volts at 4 amps max
Mount Interface 1)VESA 75mm and 100mm
2)2)Mount bracket, horizontal or vertical



Touchscreen Specification
Type IR Touch screen
Resolution 4-wires/5-wires touch screen
Light Transmission 92%
Touch Life Cycle 50 millions
Touch Response time 2ms
Touch System Interface USB/RS232 interface
Power consumption +5V@80mA

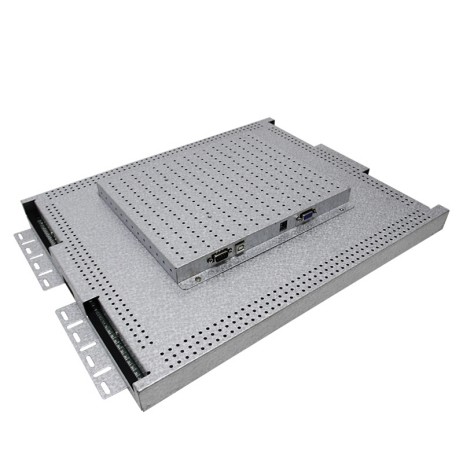

FCC 19 Inch 1440x900 Open Frame Touch Screen Monitor For Slot Machine 0

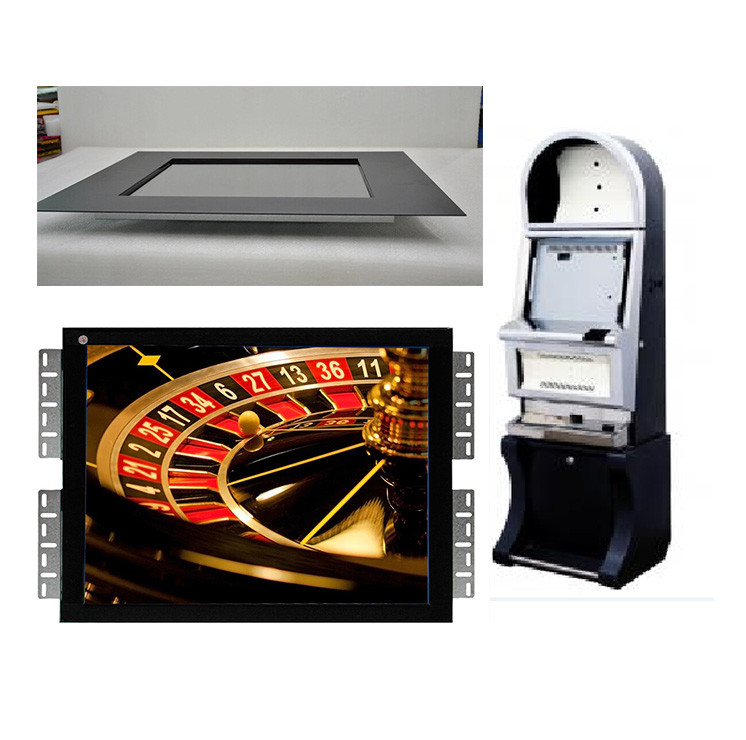

FCC 19 Inch 1440x900 Open Frame Touch Screen Monitor For Slot Machine 1

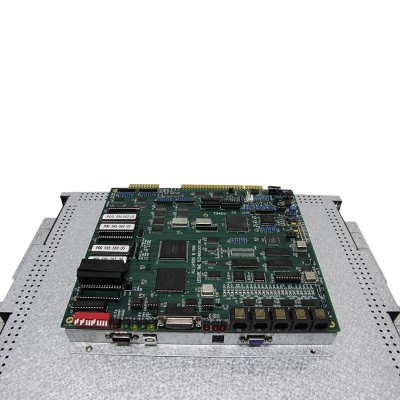

FCC 19 Inch 1440x900 Open Frame Touch Screen Monitor For Slot Machine 2
