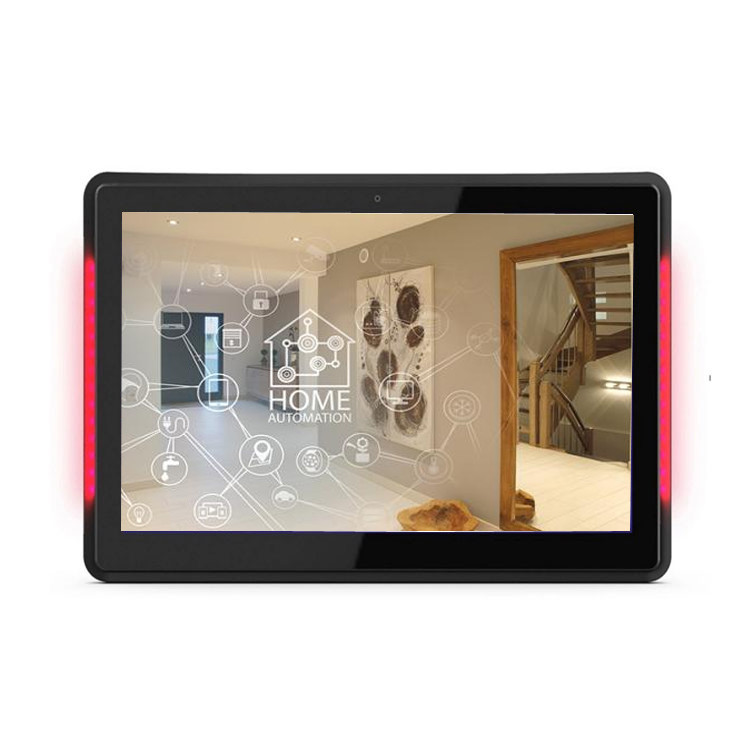

13.3" LCD Panel Android Tablet with RK3288 Quad-Core CPU and IEEE802.3at POE for Smart Home Use

Product Details:
Place of Origin: Guangdong,China
Brand Name: OEM
Certification: CE,ROHS, FCC,ISO9001,KC,CCC
Model Number: WA1342T
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: USD 253 -258 PCS
Packaging Details: wooden package
Delivery Time: 6-10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000 pcs/month
Specifications Product Description Request A Quote
Specifications
Specifications
Material: ABS
CPU: RK3288,Quad-core Cortex A17,1.6G
Internal Memory: 16GB
Touch Screen: 10-Point Capacitive Touch
Panel: 13.3"LCD Panel
Contrast Ratio: 800
POE: IEEE802.3at POE
Video Format: MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV Etc.,support Up To 4K
Highlight:

4G tablet PC with NFC

,

Android tablet with LED bar

,

Smart home tablet with Android 8.1

Product Description
4G Tablet PC with POE, NFC, LED Bar & Android 8.1 System
Product Overview

This all-in-one Android tablet combines advanced connectivity options with powerful performance for industrial and commercial applications.

  • Enjoy millions of movies, TV episodes, songs, books, apps, and games
  • IPS screen with WiFi and Bluetooth for optimal user experience
  • 4G Phone Call & 802.11b/g/n WiFi connectivity - supports phone cards for calling and messaging anywhere
Technical Specifications
System Specifications
CPU RK3288, Quad-core cortex A17, 1.6G
RAM 2GB
Internal Memory 16GB
Operation System Android 5.1/8.1
Touch Screen 10-Point capacitive touch
Display Specifications
Panel 13.3" LCD panel
Resolution 1920*1080
Active Area 293.76(H)x165.24mm(V)
Display Mode Normally black
Viewing Angle 85/85/85/85(L/R/U/D)
Contrast Ratio 800
Luminance 250cd/m²
Aspect Ratio 16:9
Network & Connectivity Specifications
WiFi 802.11b/g/n
Ethernet 100M/1000M ethernet
Bluetooth Bluetooth 4.0
Interfaces Specifications
Card Slot SD card
USB USB host
Micro USB Micro USB OTG
USB USB for serial (RS232 format)
RJ45 with POE RJ45
POE IEEE802.3at POE+, 25.5W
Power Jack DC power input
Earphone 3.5mm earphone + Microphone
Media Playback Specifications
Video Format MPEG-1, MPEG-2, MPEG-4, H.263, H.264, VC1, RV etc., support up to 4K
Audio Format MP3/WMA/AAC etc.
Photo JPEG
Additional Features Specifications

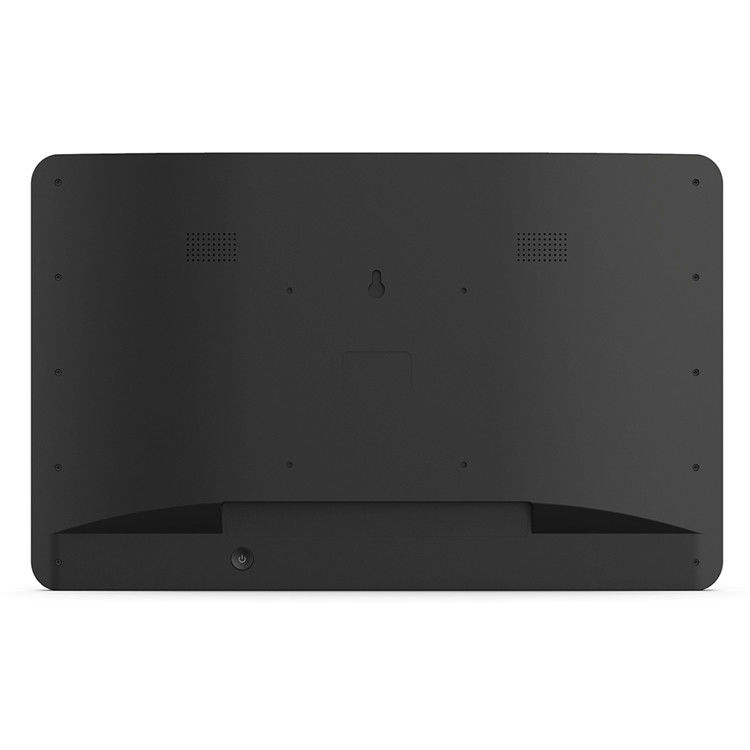

VESA 75x75mm
Speaker 2*1.5W
LED Light Bar LED light bar RGB
NFC Optional, NFC 13.56MHz, ISO14443A/ISO14443B/ISO 15693/Mifare classic/Sony felica
Camera 2.0M/P, front camera
Working Temperature 0-40°C
Language Multi-language
Included Accessories
  • Adapter: 12V/1.5A
  • User manual: Yes
