Product Details:
|
|
| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | OEM |
| Certification: | CE&FCC&Rohs |
| Model Number: | WA1053T |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 unit |
| Price: | Price can be nogotiable |
| Packaging Details: | 68*22*39cm |
| Delivery Time: | 5~7 days |
| Payment Terms: | L/C, T/T, D/P |
| Supply Ability: | 50000 pcs/month |

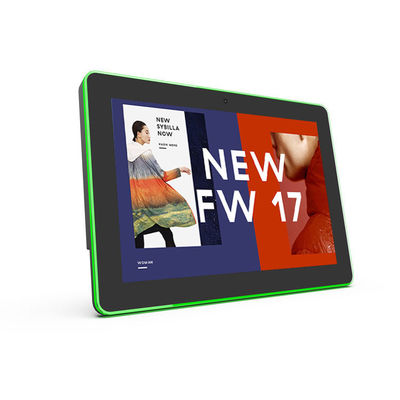

10.1 Inch IPS POS PC Android 9.0 5.0MP Camera RK3399 Touch Bluetooth RJ45 With POE
1. Wonderful design with flat Structure, ergonomic design, slim frame.
2. White and black, OEM services are available.
3. RK3399 with Android 7.1&9.0 advanced technology for Kiosk, POS, Feedback, intelligent interactive digital signage and smart home etc.
4. Industrial IPS 10.1" panel with 10 point capacitive touch screen, amazing touch sense.
5. Anti-light interference, to ensure the accuracy during the process of operation(it can be used normally even under strong lights).
6. Flexible configuration, can be expanded to install all accessories and functions based on customers' requirements.
7. Advanced design, Strict assembly technology, Stable quality, Low malfunction.
8. On and Off controlled together by one button, free of installation and debugging.
Technical specification
| System | CPU | RK3399,Dual-core A72+quad-core A53 | |||||||||||||
| RAM | 2GB | ||||||||||||||
| Internal memory | 16GB | ||||||||||||||
| Operation system | Android 7.1 | ||||||||||||||
| Touch screen | 10-Point capacitive touch | ||||||||||||||
| Display | Panel | 10.1" LCD IPS panel | |||||||||||||
| Resolution | 1280*800 | ||||||||||||||
| Active area | 216.96(H)x135.6mm(V) | ||||||||||||||
| Display mode | Normally black,IPS | ||||||||||||||
| viewing angle | 85/85/85/85(L/R/U/D) | ||||||||||||||
| Contrast ratio | 1000:1 | ||||||||||||||
| Luminance | 250cd/m2 | ||||||||||||||
| Aspect Ratio | 16:10 | ||||||||||||||
| Network | WiFi | 802.11b/g/n | |||||||||||||
| Ethernet | RJ45, 100M/1000M | ||||||||||||||
| 3G/4G | Support external 3G/4G USB dongle | ||||||||||||||
| Bluetooth | Bluetooth 4.0 | ||||||||||||||
| Interface | Card slot | SD,Support up to 32GB | |||||||||||||
| Mini USB | 1×USB OTG | ||||||||||||||
| USB 2.0 | 3×USB 2.0 | ||||||||||||||
| Power Jack | DC power input | ||||||||||||||
| RJ45 | RJ45,100M/1000M (POE is available) | ||||||||||||||
| Earphone | 3.5mm earphone | ||||||||||||||
| Serial port | USB type serial port | ||||||||||||||
| Media plays | Video format | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 1080p. | |||||||||||||
| Audio format | MP3/WMA/AAC etc. | ||||||||||||||
| Photo | jpeg | ||||||||||||||
| Others | NFC | NFC is available | |||||||||||||
| Speaker | 2*2W | ||||||||||||||
| Camera | 2.0M/P,Front camera | ||||||||||||||
| Micphone | yes | ||||||||||||||
| Language | Multi-language | ||||||||||||||
| Accessories | Adapter | Adapter,12V/2A | |||||||||||||
| User manual | yes | ||||||||||||||
DISPLAY:
Screen type: IPS
Screen size: 10.1inch
Screen Resolution:1280*800
System:
RK3399 Dual-core A72 + Quad-core A53 up to 2.0GHz processor
2GB RAM + 16GB ROM.
Support Bluetooth 4.0 for wireless data transmission.
Support OTG, 10/100M RJ45
Support an external SD card, up to 32GB (not included).
