Product Details:
|
|
| Place of Origin: | Guangdong,China |
|---|---|
| Brand Name: | OEM or CNHOPESTAR |
| Certification: | CE&FCC&Rohs |
| Model Number: | HOP170-8 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 |
| Price: | Price can be negotiable |
| Packaging Details: | 59x10x27cm |
| Delivery Time: | 2-8 working days |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 50000 pcs/month |
Embedded Open Frame Touch Monitor 10.1 12 15 15.6 17 19 21.5 24 32 inch TFT LED LCD IPS Open Frame Touch Screen Monitor
| General | |||||
| Series | Water-proof and Open frame | ||||
| LCD Type | 10.1 12 15 15.6 17 19 21.5 24 32 ” TFT-LCD | ||||
| Video Input | VGA and DVI , HDMI - optional | ||||
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset | ||||

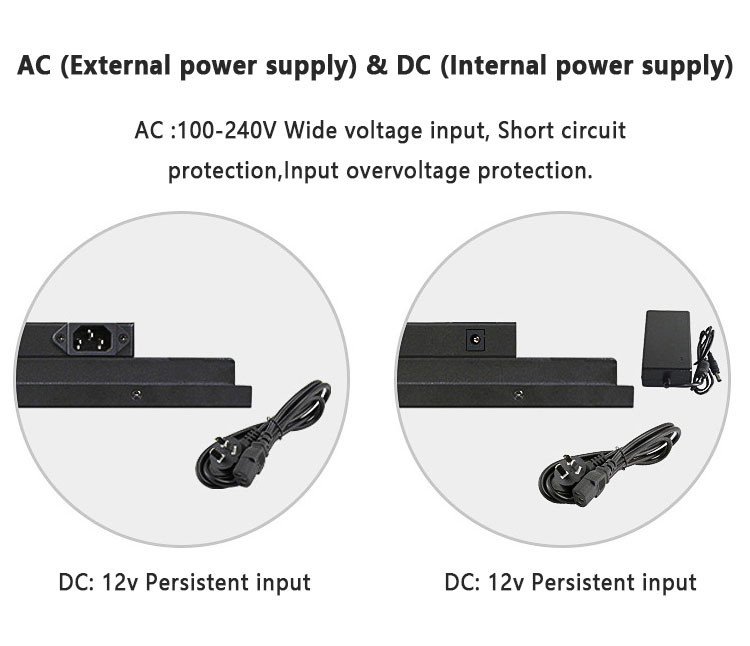

| Power Supply | Type: External brick | ||||
| Input (line) voltage: 100-240 VAC, 50-60 Hz | |||||
| Output voltage/current: 12 volts at 4 amps max | |||||
| Mount Interface | 1)VESA 75mm and 100mm | ||||
| 2)2)Mount bracket, horizontal or vertical | |||||
| LCD Specification | |||||
| Active Area(mm) | 339.8(H)×272.5(V) | ||||
| Resolution | 1024*768,1920×1080,1280×1024,1440*900 | ||||
| Dot Pitch(mm) | 0.3075×0.3075 | ||||
| Nominal Input Voltage VDD | +3.3V(Typ) | ||||
| Viewing angle (v/h) | 60°/70°(CR>5) | ||||
| Contrast | 1000:1 | ||||
| Luminance(cd/m2) | 350, 1000cd/m2 - optional | ||||
| Response Time(Rising/Falling) | 5ms/5ms | ||||
| Support Color | 16.2M colors | ||||
| Backlight MTBF(hr) | 50000 | ||||
| Touchscreen Specification | |||||
| Type | Resistive touch screen,Capacitive touch | ||||
| Resolution | 4-wires/5-wires touch screen | ||||
| Light Transmission | 92% | ||||
| Touch Life Cycle | 50 millions | ||||
| Touch Response time | 2ms | ||||
| Touch System Interface | USB interface | ||||
| Power consumption | +5V@80mA | ||||
